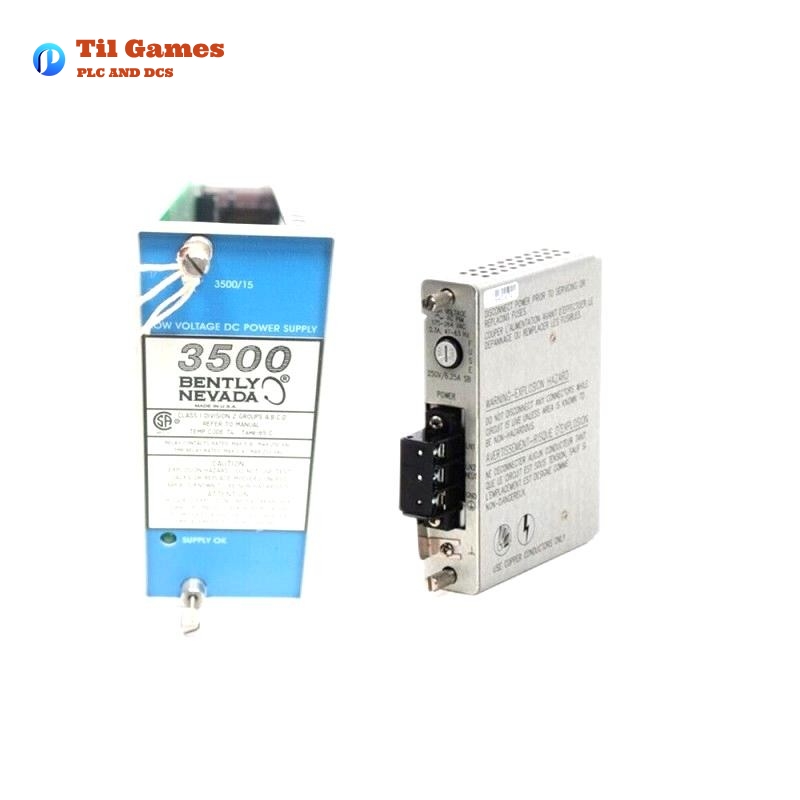

Bently Nevada 3500/15-05-00-00 AC/DC Power Supply Module
The 3500/15-05-00-00 AC/DC Power Supply Module is a critical component designed to power the 3500 Series Machinery Protection System. This module supports both AC and DC power configurations and is suitable for installations requiring reliable and redundant power supply setups. The module can be used in various industries, including manufacturing, energy, and industrial automation systems.
Product Parameters
| Parameter | Value |
|---|---|
| Module Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm |
| Module Weight | 1.39 kg |
| Input Voltage Options | Universal AC: 85 to 264 Vac RMS, High Voltage DC: 88 to 140 VDC, Low Voltage DC: 20 to 30 VDC |
| Input Frequency | 47 to 63 Hz |
| Output Protection | Fuse for over-voltage protection |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% Non-condensing |
| Compliance and Certification | FCC, CE, UL, ATEX, IECEx |
Product Features
-
Dual Power Supply Configuration: This module supports redundant power supply configurations, where one power supply acts as the primary source and the second as the backup.
-
Wide Voltage Input Range: It accepts a wide range of input voltages for various applications, including universal AC and both high and low voltage DC inputs.
-
Redundancy Support: The system supports dual power supplies installed in different rack slots, allowing seamless power switching without system downtime.
-
Versatile Application: Compatible with a variety of industrial environments, ensuring the stable operation of machinery protection systems.
-
Front Panel Indicators: It includes an “OK” LED to indicate when the power supply is operating properly.
-
Efficient Cooling and Environmental Resistance: This module operates efficiently in extreme environments with operating temperatures ranging from -30°C to +65°C and storage temperatures from -40°C to +85°C.
Product Advantages
-
High Reliability: The redundant configuration ensures no disruption in power, critical for preventing system downtime.
-
Flexibility: Multiple power supply options (Universal AC, High Voltage DC, and Low Voltage DC) make it suitable for different industrial setups.
-
Ease of Integration: The power supply module is designed to integrate seamlessly with the 3500 Machinery Protection System, simplifying system setup and maintenance.
-
Wide Compatibility: It is compatible with hazardous and non-hazardous environments, meeting various industry standards and certifications.
-
Cost-effective: By supporting both AC and DC configurations, it minimizes the need for multiple separate power supplies, reducing system complexity and cost.
Product Applications
The 3500/15-05-00-00 AC/DC Power Supply Module is suitable for:
-
Industrial Automation Systems: Provides power to a variety of industrial control and machinery protection systems.
-
Energy Sector: Essential for ensuring uninterrupted operation in power plants, substations, and electrical grids.
-
Manufacturing: Used in manufacturing processes that require continuous monitoring and protection of critical machinery.
-
Mining: Suitable for use in harsh environments, such as mining operations where reliability and continuous monitoring are key.
-
Oil & Gas: This power supply module ensures reliable protection and monitoring of equipment in the oil and gas industry.
Related Model Recommendations
| Model | Description | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/15-05-01-00 | Universal AC Power Supply | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-06-00-00 | High Voltage DC Power Supply | 88-140 VDC | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-07-00-00 | Low Voltage DC Power Supply | 20-30 VDC | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-05-01-01 | Redundant AC Power Supply | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-06-01-01 | Redundant High Voltage DC Power Supply | 88-140 VDC | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-07-01-01 | Redundant Low Voltage DC Power Supply | 20-30 VDC | 120.7 x 50.8 x 251.5 | 1.39 |
Popular Bently Nevada Models
| Model | Description | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/40 | Machinery Protection System Rack | 85-264 Vac RMS | 210.1 x 70.1 x 311.1 | 3.00 |
| 3500/42 | Machinery Protection System Rack Extension | 85-264 Vac RMS | 210.1 x 70.1 x 311.1 | 3.00 |
| 3500/22 | Vibration Monitoring Module | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/11 | Temperature Monitoring Module | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/53 | Proximity Monitoring Module | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/71 | Control System Interface Module | 85-264 Vac RMS | 120.7 x 50.8 x 251.5 | 1.39 |
FAQ
FAQ (Frequently Asked Questions)
Q1: What are the power input options for the 3500/15 module?
A1: The 3500/15 module supports Universal AC (85-264 Vac RMS), High Voltage DC (88-140 VDC), and Low Voltage DC (20-30 VDC) power inputs.
Q2: How does the redundancy work in the 3500/15 Power Supply Module?
A2: The module supports dual power supplies, where one serves as the primary and the other as a backup. If one fails, the other takes over seamlessly without causing system disruption.
Q3: What is the maximum operating temperature for the module?
A3: The module can operate in temperatures ranging from -30°C to +65°C.
Q4: What certifications does the 3500/15 module have?
A4: The module complies with FCC, CE, UL, ATEX, and IECEx standards.
Q5: Can the 3500/15 module be used in hazardous environments?
A5: Yes, it is certified for use in hazardous areas, including Class I, Zone 2, and Division 2.
Q6: What is the physical size of the 3500/15 power supply module?
A6: The dimensions are 120.7 mm (H) x 50.8 mm (W) x 251.5 mm (D), and the weight is 1.39 kg.
Q7: Does the module have any protection features?
A7: Yes, it features over-voltage protection with a fuse to prevent damage to the system.
Q8: What is the input frequency range for the Universal AC Power Supply option?
A8: The input frequency for the Universal AC Power Supply option is 47 to 63 Hz.
