Product Description

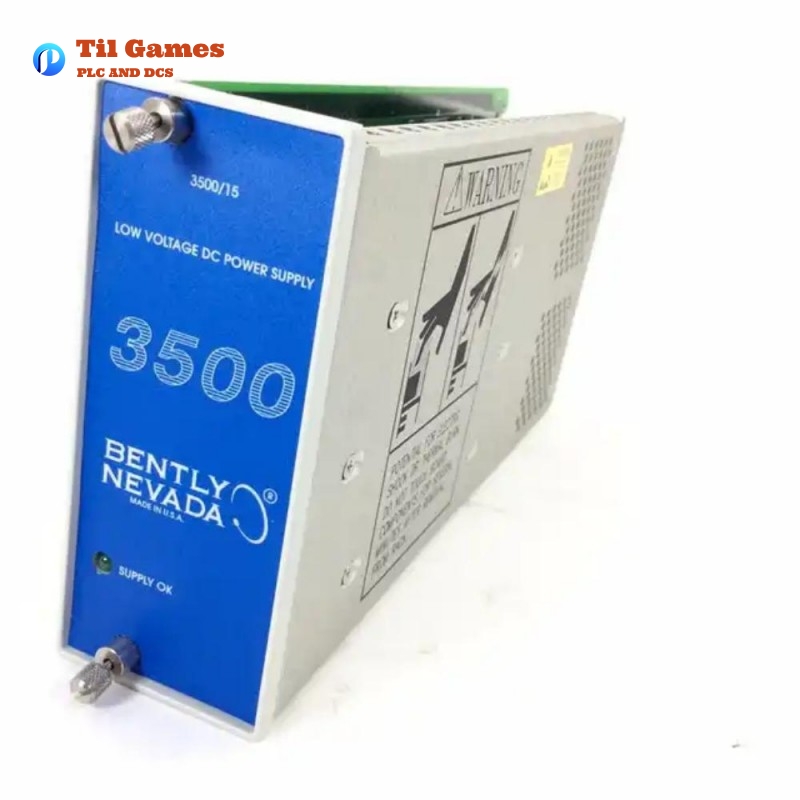

The Bently Nevada 3500/15-04-04-01 AC/DC Power Supply Module is designed for use with the 3500 Series Machinery Protection System. This half-height module is installed in the designated slots on the left side of the 3500 rack. The system is capable of accommodating one or two power supplies, allowing for redundancy where one supply acts as a backup to the other. The module supports a range of input voltages and provides stable power to the other 3500 modules.
The 3500/15 can operate in both AC and DC configurations, and its modular design ensures that adding or replacing power supplies does not disrupt system operations. This feature is particularly useful in environments that require high reliability and uptime.
Product Features
-
Flexible Power Inputs: Available in universal AC, high voltage DC, and low voltage DC configurations.
-
Redundant Power Setup: Two power supplies can be installed in the rack for redundancy, ensuring continuous operation even if one fails.
-
Wide Voltage Range: The module supports a wide range of input voltages, including 110 to 220 Vac for AC power and 88 to 140 Vdc for high voltage DC and 20 to 30 Vdc for low voltage DC.
-
Compact Design: The power supply module is designed to fit in half-height slots, optimizing space in the rack.
-
LED Indicators: The module includes a “Supply OK” LED indicator to show when the system is operating correctly.
-
Compatibility: The module is compatible with the 3500 Series machinery protection system but is not compatible with older legacy systems.
Product Advantages
-
High Availability: With a redundant power supply configuration, the system remains operational even if one power module fails.
-
Wide Operating Temperature: The system operates in a wide temperature range from -30°C to +65°C, making it suitable for use in extreme environments.
-
Low Maintenance: The ability to swap power supply modules without disrupting the system minimizes downtime.
-
Global Compliance: Meets various international safety and environmental standards, ensuring that it can be used in hazardous locations as well.
Applications
The 3500/15-04-04-01 power supply module is primarily used in industrial machinery protection and monitoring systems. Its robust design makes it suitable for applications in sectors such as:
-
Power generation
-
Oil and gas
-
Manufacturing industries
-
Refineries and chemical plants
-
Mining operations
Specifications
| Parameter | Specification |
|---|---|
| Module Dimensions (H x W x D) | 120.7 x 50.8 x 251.5 mm |
| Weight | 1.39 kg (3.06 lbs) |
| Input Voltage Range (AC) | 85 to 264 Vac rms (non-hazardous), 85 to 250 Vac rms (hazardous) |
| Input Voltage Range (DC) | High Voltage: 88 to 140 Vdc, Low Voltage: 20 to 30 Vdc |
| Output Voltage | Suitable for powering the 3500 Series Modules |
| Rack Slot Requirement | Two half-height slots located on the left side of the rack |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
Compliance and Certifications
-
EMC Compliance: EN 61000-6-2, EN 61000-6-4 for industrial environments.
-
Electrical Safety: Compliant with EN 61010-1 for low voltage systems.
-
RoHS: Compliant with RoHS Directive 2011/65/EU.
-
Hazardous Area Approval: Certified for Class I, Zone 2, ATEX/IECEx, and other region-specific approvals.
Related and Popular Models
| Model | Input Type | Voltage Range | Output Type | Dimensions | Weight |
|---|---|---|---|---|---|
| 3500/15 AC Power Supply | AC | 85-264 Vac | Powers the 3500 modules | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/15 High Voltage DC | DC | 88-140 Vdc | Powers the 3500 modules | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/15 Low Voltage DC | DC | 20-30 Vdc | Powers the 3500 modules | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
| 3500/20 Expansion Rack | N/A | N/A | Used for additional modules | 400 x 200 x 300 mm | 5.0 kg |
| 3500/22 Rack Mounting Kit | N/A | N/A | Mounting kit for racks | 100 x 50 x 200 mm | 0.5 kg |
| 3500/60 Relay Output Module | N/A | N/A | Outputs relay signals | 120.7 x 50.8 x 251.5 mm | 1.39 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the power supply range for the 3500/15 module?
A1: The 3500/15 module supports a wide input range: 85 to 264 Vac for AC power and 88 to 140 Vdc for high voltage DC, and 20 to 30 Vdc for low voltage DC.
Q2: Can the 3500/15 power supply be used in hazardous areas?
A2: Yes, the 3500/15 power supply is certified for use in hazardous areas, including Class I, Zone 2, and ATEX/IECEx.
Q3: What happens if the power supply fails?
A3: If one power supply fails, the second power supply, if installed, automatically takes over to maintain operation, ensuring no disruption.
Q4: What is the temperature range for operating the power supply module?
A4: The operating temperature range is from -30°C to +65°C, making it suitable for use in extreme environments.
Q5: Is the 3500/15 compatible with older 3500 systems?
A5: No, the 3500/15 is not compatible with legacy 3500 AC or DC power supplies and their corresponding Power Input Modules (PIM).
Q6: How do I replace a power supply in a 3500 rack?
A6: Replacing the power supply does not require system shutdown as long as a backup power supply is in place.
Q7: What is the weight of the 3500/15 power supply module?
A7: The 3500/15 power supply module weighs 1.39 kg (3.06 lbs).
Q8: What certifications does the 3500/15 power supply module have?
A8: The 3500/15 module is certified for compliance with FCC, EMC, RoHS, and various hazardous area approvals like ATEX and IECEx.
