Product Description

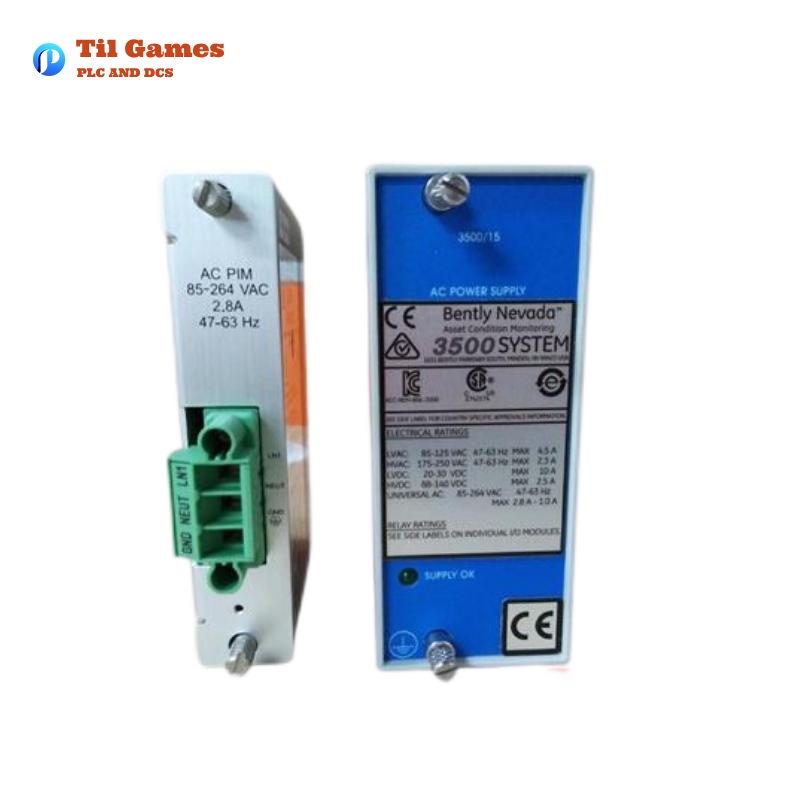

The Bently Nevada 3500/15-02-02 AC and DC Power Supply Module is a vital component in the 3500 Series Machinery Protection System. This module is designed to provide continuous and reliable power to the 3500 monitoring system, supporting both AC and DC power inputs. The unit is a half-height module installed on the left side of the rack. The system can operate with a single power supply or a redundant dual-supply configuration, ensuring high availability.
In dual-mode operation, the lower slot power module serves as the primary power source, while the upper module automatically takes over in case of failure, enhancing system resilience. The 3500/15 module is designed to be hot-swappable, meaning it can be replaced or inserted without disrupting system operations if a secondary module is present.
The available input options include:
-
Universal AC Power (85 to 264 Vac rms)
-
High Voltage DC (88 to 140 Vdc)
-
Low Voltage DC (20 to 30 Vdc)
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply Types | Universal AC, High Voltage DC, Low Voltage DC |
| Universal AC Input Voltage | 85–264 Vac rms (non-hazardous), 85–250 Vac rms (hazardous), 120–373 Vac pk |
| Input Frequency | 47–63 Hz |
| High Voltage DC Input | 88–140 Vdc |
| Low Voltage DC Input | 20–30 Vdc |
| Full Rack Current Draw | AC: 2.8 A rms max, High DC: 2.5 A max, Low DC: 11.0 A max |
| Over-voltage Protection | Fuse in Power Input Module |
| Supply OK Indicator | LED indicator on front panel |
| Environmental Temperature (Op.) | -30 °C to +65 °C |
| Environmental Temperature (Stg) | -40 °C to +85 °C |
| Humidity | 95%, non-condensing |
| Certifications | FCC Part 15, CE (EMC 2014/30/EU, LVD 2014/35/EU), RoHS 2011/65/EU |
| Dimensions (Module) | 120.7 x 50.8 x 251.5 mm (H x W x D) |
| Weight (Module) | 1.39 kg (3.06 lb) |
| Dimensions (Input Module) | 120.7 x 25.4 x 114.3 mm |
| Weight (Input Module) | 0.34 kg (0.75 lb) |
Product Features
-
Supports both AC and DC power inputs, suitable for global deployment
-
Hot-swappable design ensures zero downtime during maintenance
-
Redundant power supply configuration for continuous operation
-
Wide operating temperature range suitable for industrial environments
-
LED indication for operational status and quick troubleshooting
-
Compact and modular structure for efficient rack utilization
-
Compatible with the 3500 Series monitoring rack architecture
-
Full electrical and environmental certifications, including ATEX and IECEx
Product Advantages
-
High reliability due to redundant power supply configuration
-
Safe operation in hazardous areas with compliance to Zone 2 and Division 2 standards
-
Easily maintainable with replaceable fuses and hot-swap capability
-
Wide compatibility with other 3500 Series modules and systems
-
Flexible power input options reduce need for external converters
-
High-quality industrial design ensures long operational life in harsh conditions
Product Applications
-
Machinery protection systems in power generation facilities
-
Oil and gas equipment condition monitoring
-
Petrochemical process control systems
-
Maritime and offshore machinery diagnostics
-
Industrial turbine and compressor monitoring
-
Steel and cement manufacturing systems requiring high system availability
Recent Product-Related Reports and Titles
-
“Redundant Power Supply Configurations in Critical Machinery Monitoring Systems”
-
“Enhancing Safety in Zone 2 Applications with the Bently 3500/15 Power Module”
-
“Comparative Study of AC vs DC Power Inputs in Machinery Protection Systems”
-
“Optimizing Downtime with Hot-Swappable Bently Nevada Modules”
-
“Implementation of Bently 3500/15 Power Supply in Harsh Environments”
Recommended Related Models in the Same Series
| Model Number | Description | Power Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/15-05-00 | Universal AC Power Supply | AC | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-06-00 | High Voltage DC Power Supply | DC (88–140 Vdc) | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-07-00 | Low Voltage DC Power Supply | DC (20–30 Vdc) | 120.7 x 50.8 x 251.5 | 1.39 |
| 106M1079-01 | Universal AC Power Supply Module | AC | 120.7 x 50.8 x 251.5 | 1.39 |
| 114M5329-01 | High Voltage DC Power Supply Module | DC | 120.7 x 50.8 x 251.5 | 1.39 |
| 114M5330-01 | Low Voltage DC Power Supply Module | DC | 120.7 x 50.8 x 251.5 | 1.39 |
Popular Bently Nevada Models
| Model Number | Description | Main Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/20 | Rack Interface Module | Communication interface | 120.7 x 25.4 x 251.5 | 0.75 |
| 3500/22M | Transient Data Interface Module | TDI interface for data collection | 120.7 x 25.4 x 251.5 | 0.80 |
| 3500/42M | Proximitor/Seismic Monitor | Vibration monitoring | 120.7 x 25.4 x 251.5 | 0.85 |
| 3500/40M | Proximitor Monitor | Shaft position and vibration monitor | 120.7 x 25.4 x 251.5 | 0.85 |
| 3500/25 | Keyphasor Module | Rotational speed measurement | 120.7 x 25.4 x 251.5 | 0.75 |
| 3500/33 | Relay Module | Output relay control | 120.7 x 25.4 x 251.5 | 0.80 |
FAQ
Frequently Asked Questions (FAQ)
Q: Can I install two power supply modules in the 3500 rack?
A: Yes, the 3500 rack allows installation of two power supply modules—one primary and one backup—for redundancy.
Q: What happens if the primary power supply fails?
A: The backup power supply automatically takes over to ensure uninterrupted operation.
Q: Is it possible to hot-swap the 3500/15 module?
A: Yes, hot-swapping is supported as long as a second power supply is installed.
Q: Can I use this module in hazardous areas?
A: Yes, the module meets certifications for Class I, Division 2 and Zone 2 areas.
Q: What types of power input does the module support?
A: It supports Universal AC, High Voltage DC, and Low Voltage DC input options.
Q: Are the Universal AC and Legacy AC units compatible?
A: No, the Universal AC Power Supply is not compatible with the Legacy AC models.
Q: What are the size and weight of the module?
A: Dimensions are 120.7 x 50.8 x 251.5 mm and the weight is 1.39 kg.
Q: Does the power module include status indicators?
A: Yes, the front panel includes an LED that indicates the operational status of the supply.
