Product Description

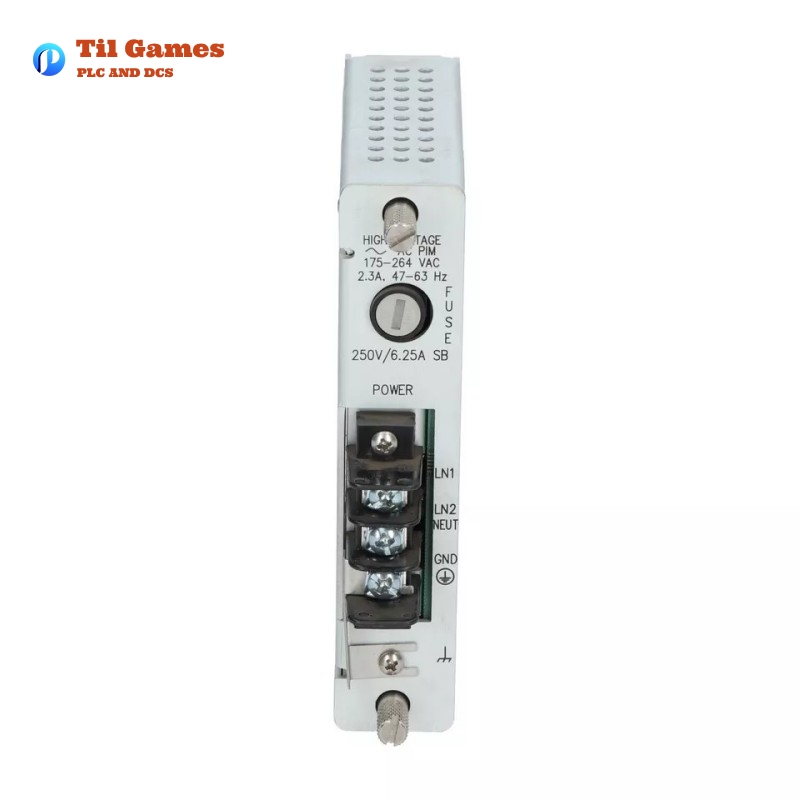

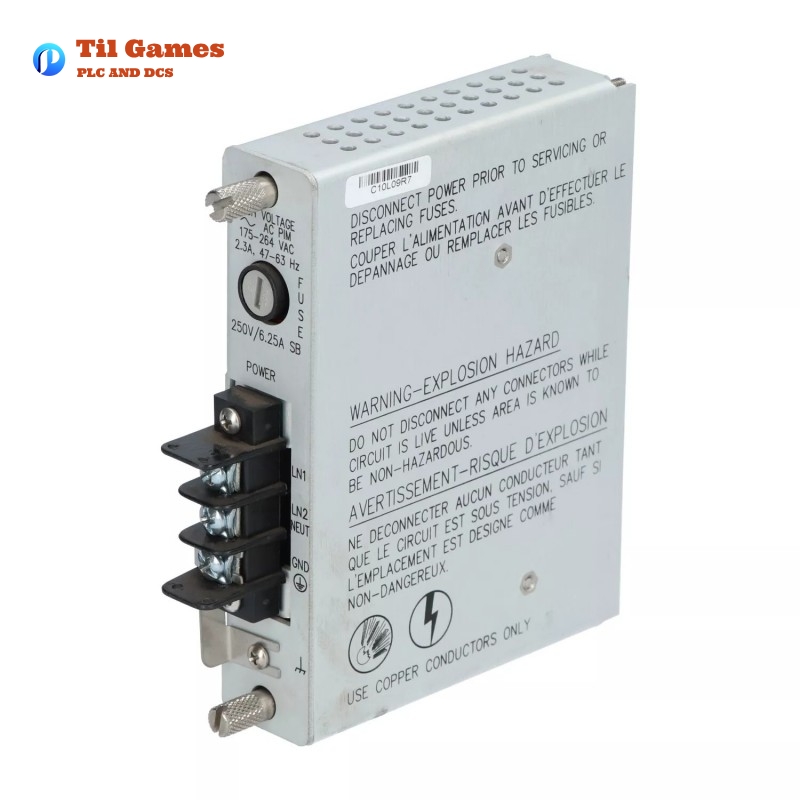

The Bently Nevada 3500/15-02-02-00 125840-01 High Voltage AC Power Input Module is part of the 3500 Series Machinery Protection System. This high-voltage power input module is essential for providing reliable power to the monitoring system. It is specifically designed for use in high-demand industrial environments where accurate and continuous monitoring of machinery is required. This module, along with others in the series, ensures the system’s power supply is both stable and reliable, supporting the broader machinery protection goals.
The module works with a wide range of input voltages and is designed for seamless integration into a 3500 rack configuration. With built-in redundancy, it offers continuous protection even if one power supply fails, as the secondary supply steps in automatically.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 3500/15-02-02-00 125840-01 High Voltage AC Power Input |
| Dimensions | 120.7 x 25.4 x 114.3 mm (4.75 x 1.0 x 4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
| Input Voltage Range | 85 to 264 Vac rms |
| Input Frequency Range | 47 to 63 Hz |
| Operating Temperature | -30 °C to +65 °C ( -22 °F to +150 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Current Draw (Full Rack) | 2.5 A (maximum) |
| Compliance | ATEX/IECEx, FCC, EMC, RoHS, UL |
Key Features
-
High Voltage Input: Designed to handle high-voltage AC inputs, ensuring stable power supply for critical systems.
-
Redundant Power Supply: Supports the use of two power supplies in a 3500 rack, offering redundancy to maintain uninterrupted operation.
-
Wide Input Range: Compatible with a variety of voltage levels, ranging from 85 to 264 Vac rms.
-
Built-in Protection: Equipped with under-voltage protection and a fuse to handle over-voltage situations.
-
LED Indicators: The front panel features LEDs to indicate supply status (OK) for easy monitoring of the module’s operational state.
Advantages
-
Reliability: The redundancy feature ensures minimal downtime in case of power failure, making it highly reliable for continuous monitoring.
-
Flexibility: The module supports a wide range of input voltages, which enhances compatibility across different installations.
-
Durability: Designed for harsh industrial environments, it operates within a wide temperature range and has a robust build.
-
Compliance with Standards: The module complies with international safety and environmental regulations, including ATEX/IECEx and RoHS standards, ensuring safe operation in hazardous areas.
Applications
The 3500/15-02-02-00 125840-01 High Voltage AC Power Input Module is used in industrial applications requiring robust machinery protection and condition monitoring. It is typically deployed in:
-
Power Generation: Ensuring continuous monitoring of machinery in power plants.
-
Oil and Gas: Monitoring critical systems in offshore and onshore oil and gas operations.
-
Manufacturing: Protecting and monitoring rotating machinery in large-scale manufacturing facilities.
-
Mining: Used in mines where harsh conditions demand reliable and redundant power supplies for monitoring equipment.
Latest Reports
-
“Bently Nevada 3500 Series: Enhancing Machine Protection in Modern Industrial Environments”
-
“Future of High-Voltage Power Input Modules in Industrial Automation”
-
“Bently Nevada’s Contribution to Industrial IoT: Powering the Next Generation of Condition Monitoring Systems”
Recommended Related Models
| Model | Description | Key Specifications |
|---|---|---|
| 3500/15-02-03-00 | Low Voltage AC Power Input Module | 20 to 30 Vdc input, 11.0 A max |
| 3500/15-02-01-00 | Universal AC Power Input Module | 110 to 220 Vac input, 2.8 A max |
| 3500/15-02-04-00 | High Voltage DC Power Input Module | 88 to 140 Vdc input, 2.5 A max |
| 3500/15-02-05-00 | Legacy High Voltage AC Power Input Module | 85 to 250 Vac input, 2.8 A max |
| 3500/15-02-06-00 | Legacy Low Voltage DC Power Input Module | 20 to 30 Vdc input, 11.0 A max |
| 3500/15-02-07-00 | Low Voltage DC Power Supply | 20 to 30 Vdc input, 11.0 A max |
Popular Bently Nevada Models
| Model | Description | Key Specifications |
|---|---|---|
| 3500/42 | Accelerometer Module | Measures vibration on rotating machinery |
| 3500/53 | Proximity Transducer Module | Monitors shaft vibration in machines |
| 3500/22 | Pressure Transducer Module | Used for monitoring pressure systems |
| 3500/20 | Tachometer Module | Monitors rotational speed of machinery |
| 3500/12 | Vibration Transducer Module | Provides detailed vibration analysis |
| 3500/33 | Displacement Transducer Module | Measures displacement in rotating equipment |
FAQ
FAQ (Q&A)
-
Q: What input voltage does the 3500/15-02-02-00 support?
A: The module supports an input voltage range of 85 to 264 Vac rms. -
Q: What are the operating temperature limits for the module?
A: The operating temperature range is -30 °C to +65 °C (-22 °F to +150 °F). -
Q: Can the module be used in hazardous areas?
A: Yes, the module is approved for use in hazardous areas, with ATEX/IECEx certifications. -
Q: How does the redundancy work in the 3500 series?
A: When two power supplies are installed, the lower slot supply acts as the primary, while the upper slot supply serves as backup. -
Q: What happens if the input voltage exceeds the specified range?
A: An over-voltage condition causes the fuse on the PIM to open, protecting the module from damage. -
Q: Is the 3500/15-02-02-00 compatible with older Bently Nevada modules?
A: No, it is not compatible with legacy high voltage or low voltage AC power supplies. -
Q: What is the weight of the power input module?
A: The weight of the power input module is 0.34 kg (0.75 lb). -
Q: What compliance certifications does the module have?
A: The module complies with various standards including ATEX, IECEx, FCC, RoHS, and more.
