Product Description

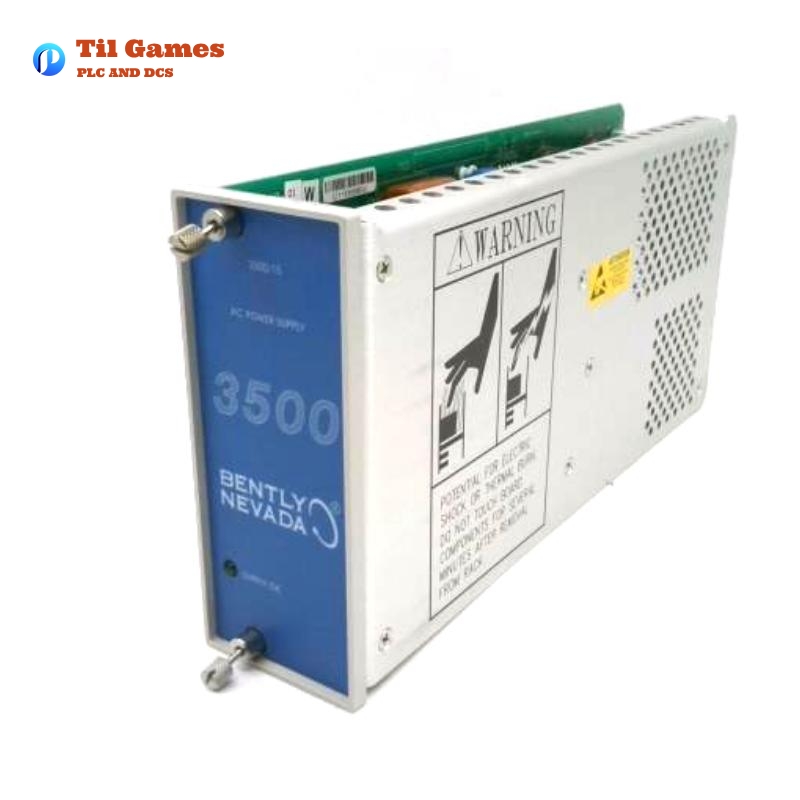

The Bently Nevada 3500/15-02-00-00 AC and DC Power Supply Module is a critical power component of the Bently Nevada 3500 Machinery Protection System. This power module is designed to convert a broad range of input voltages into regulated outputs suitable for the entire 3500 system.
It occupies a half-height slot on the left side of the 3500 rack and supports installation in single or redundant configurations. When two supplies are installed, the bottom unit functions as the primary source, while the upper unit provides automatic backup. The system is designed to be hot-swappable—removal or insertion of one supply does not interrupt rack operation if the other supply is active.
The 3500/15 supports Universal AC, High Voltage DC, and Low Voltage DC input types, offering versatility across industrial environments.
Technical Specifications
Power Supply Module Parameters
| Parameter | Value |
|---|---|
| Model Number | 3500/15-02-00-00 |
| Dimensions (H x W x D) | 120.7 mm × 50.8 mm × 251.5 mm |
| Weight | 1.39 kg |
| Input Voltage – Universal AC | 85 to 264 Vac rms (Nominal: 110–220 Vac) |
| Input Frequency | 47 to 63 Hz |
| Input Voltage – High Voltage DC | 88 to 140 Vdc |
| Input Voltage – Low Voltage DC | 20 to 30 Vdc |
| Max Current Draw – Universal AC | 2.8 A rms |
| Max Current Draw – High Voltage DC | 2.5 A |
| Max Current Draw – Low Voltage DC | 11.0 A |
| Front Panel Indicator | Supply OK LED |
| Rack Space Requirement | Two half-height slots (left side of rack) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
Product Features
-
Supports three input types: Universal AC, High Voltage DC, and Low Voltage DC
-
Redundant power supply configuration for high system reliability
-
Hot-swappable design ensures no interruption in power delivery
-
Integrated status LED (“Supply OK”) for diagnostics
-
Mounts into two half-height slots on the rack’s left side
-
Power Input Modules (PIMs) tailored for AC and DC compatibility
Product Advantages
-
Enhances system availability and uptime through redundant configuration
-
Designed for rugged industrial environments with wide temperature range
-
Compact form factor minimizes rack space utilization
-
Universal AC module supports global power standards
-
Meets rigorous certifications including EMC, ATEX, CSA, IECEx, RoHS
-
Compatible with a full range of 3500 monitoring modules
Product Applications
-
Industrial vibration monitoring systems
-
Gas and steam turbine protection setups
-
Oil and gas exploration and refining sites
-
Power generation facilities
-
Petrochemical plants and process control
-
Maritime and offshore platforms
-
General-purpose rotating machinery health monitoring
Latest Product News Headline
“Bently Nevada Enhances 3500 Series Power Supply Redundancy Capabilities with Extended Voltage Support”
Related Models (Same Series or Compatible)
| Model Number | Description | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 106M1079-01 | Universal AC Power Supply Module | 85–264 Vac | 120.7 x 50.8 x 251.5 | 1.39 |
| 114M5329-01 | High Voltage DC Power Supply Module | 88–140 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 114M5330-01 | Low Voltage DC Power Supply Module | 20–30 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 129486-01 | Legacy High Voltage DC Power Supply | 88–140 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 133292-01 | Legacy Low Voltage DC Power Supply | 20–30 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 129767 | 3500/15 Power Supply User Guide (Manual) | – | – | – |
Popular Bently Nevada Models
| Model Number | Description | Key Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Communication module for 3500 | 120.7 x 50.8 x 251.5 | 1.42 |
| 3500/42M | Proximitor Seismic Monitor | Vibration monitoring | 120.7 x 50.8 x 251.5 | 1.38 |
| 3500/25 | Keyphasor Module | Shaft phase reference module | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/40M | Proximitor Monitor | Shaft vibration monitoring | 120.7 x 50.8 x 251.5 | 1.40 |
| 3500/92 | Communication Gateway Module | Data interface with host systems | 120.7 x 50.8 x 251.5 | 1.41 |
| 3500/94M | VGA Display Module | Local visual display of module readings | 120.7 x 50.8 x 251.5 | 1.45 |
FAQ
FAQ (Frequently Asked Questions)
Q1: Can the 3500/15-02-00-00 module be replaced while the rack is powered on?
A1: Yes, the module is hot-swappable if a second power supply is installed to maintain uninterrupted operation.
Q2: What types of input voltages are supported by this module?
A2: The module supports Universal AC (85–264 Vac), High Voltage DC (88–140 Vdc), and Low Voltage DC (20–30 Vdc).
Q3: What happens if the primary power supply fails?
A3: If two supplies are installed, the upper (backup) unit automatically takes over to ensure continuous operation.
Q4: How can I determine if the module is operating correctly?
A4: A “Supply OK” LED on the front panel provides a visual indication of operational status.
Q5: Does this module require a minimum load to function?
A5: No, there is no minimum load requirement for the power supply to operate.
Q6: Is the power supply module certified for hazardous environments?
A6: Yes, it is certified under ATEX, IECEx, CSA (Class I, Div 2 and Zone 2), DNV GL, ABS, and complies with EMC and RoHS directives.
Q7: Can legacy and modern modules be mixed in the same rack?
A7: No, Universal AC and new DC modules are not compatible with legacy AC/DC modules.
Q8: What protective features are built into the module?
A8: The module includes over-voltage protection via fuses in the Power Input Modules (PIMs), which prevent damage to the system.
