Product Description

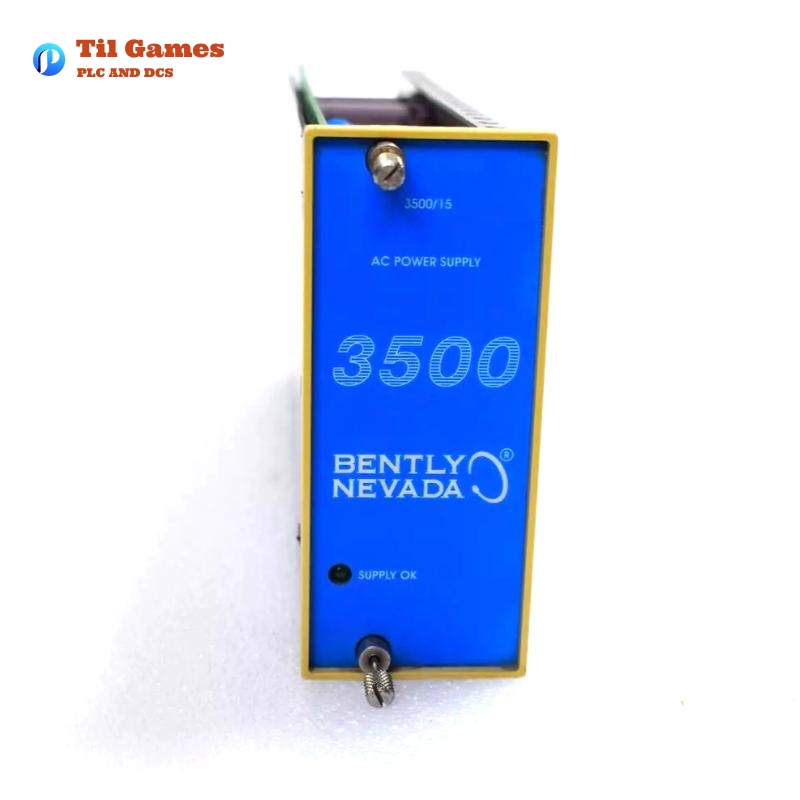

The Bently Nevada 3500/15-01-01-00 127610-01 AC Power Supply Module is a robust, high-efficiency power solution specifically engineered for the 3500 Series Machinery Protection System. This module is a half-height unit designed for installation in designated slots on the left side of the 3500 rack. The rack can accommodate one or two power supplies, allowing for either standalone or redundant configurations. In redundant systems, the lower module operates as the primary supply, while the upper acts as a backup without interrupting rack functionality during hot swaps.
The module is compatible with a universal AC input range and seamlessly converts input voltages to levels suitable for powering the entire array of 3500 Series monitoring modules. It complies with rigorous industrial certifications and environmental requirements, ensuring reliable operation even in harsh, hazardous, and maritime environments.
Product Specifications
1. Electrical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (Nominal) | 110 to 220 Vac |
| Input Voltage (Non-hazardous) | 85 to 264 Vac rms |
| Input Voltage (Hazardous) | 85 to 250 Vac rms |
| Input Voltage (Peak) | 120 to 373 Vac pk |
| Input Frequency | 47 to 63 Hz |
| Current Draw (Full Rack Load) | 2.8 A rms (Universal Voltage AC) |
| Output Indication | Supply OK LED on front panel |
2. Physical Parameters
| Parameter | Value |
|---|---|
| Dimensions (H x W x D) | 120.7 x 50.8 x 251.5 mm |
| (4.75 x 2.00 x 9.90 in) | |
| Weight | 1.39 kg |
| (3.06 lb) |
3. Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% RH, non-condensing |
4. Rack Configuration
| Component | Description |
|---|---|
| Power Supply Module | Occupies two half-height slots on the left side of the rack |
| Power Input Module | Mounted directly behind the associated power supply module |
| Minimum Load | No minimum load requirement |
Product Features
-
Supports universal AC voltage inputs for worldwide compatibility
-
Hot-swappable design with no disruption to rack operation when redundant supply is present
-
Integrated Supply OK LED status indicator
-
Compact half-height footprint conserving rack space
-
Broad temperature and humidity tolerance for industrial environments
-
Designed for Class I Division 2 and Zone 2 hazardous locations
-
Fully compliant with FCC, CE, RoHS, DNV GL, ABS, ATEX, and IECEx standards
Product Advantages
-
Redundancy Ready: Supports dual power supply configuration for continuous operation
-
Field-Proven Reliability: Widely used in mission-critical machinery protection systems
-
Easy Maintenance: Simple plug-and-play replacement without system downtime
-
Versatile Mounting: Compatible with a wide range of 3500 rack installations
-
Wide Input Compatibility: Universal voltage acceptance eliminates regional limitations
-
Comprehensive Compliance: Meets global standards for marine, offshore, and hazardous zones
Typical Applications
-
Industrial Rotating Machinery Protection
-
Oil & Gas Platforms
-
Power Generation Plants
-
Refineries and Petrochemical Facilities
-
Turbomachinery Monitoring Systems
-
Marine and Offshore Equipment
-
Condition Monitoring and Vibration Systems
Latest Headlines
-
“Bently Nevada Expands 3500 Series with Enhanced Redundancy Support in 3500/15 Modules”
-
“Advanced AC Power Module 3500/15-01-01-00 Now Certified for Maritime and Offshore Safety”
-
“Baker Hughes Reinforces Industrial Safety Standards with ATEX-Certified Power Modules”
Related Models in the 3500 Series
| Model Number | Description | Input Voltage Range | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/15-05-01-00 | Universal AC Power Module | 85–264 Vac | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-06-01-00 | High Voltage DC Power Module | 88–140 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 3500/15-07-01-00 | Low Voltage DC Power Module | 20–30 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 129486-01 | Legacy High Voltage DC Power Supply | 88–140 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 133292-01 | Legacy Low Voltage DC Power Supply | 20–30 Vdc | 120.7 x 50.8 x 251.5 | 1.39 |
| 106M1079-01 | Universal AC Power Supply Module (PIM) | 85–264 Vac | 120.7 x 25.4 x 114.3 | 0.34 |
Popular Bently Nevada Models
| Model Number | Description | Key Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 3500/22M | Transient Data Interface Module | Communication & Data Processing | 120.7 x 50.8 x 251.5 | 1.4 |
| 3500/25 | Keyphasor Module | Shaft Position Monitoring | 120.7 x 50.8 x 251.5 | 1.3 |
| 3500/42M | Proximitor Seismic Monitor | Vibration/Seismic Detection | 120.7 x 50.8 x 251.5 | 1.3 |
| 3500/33 | Relay Module | Alarm Relay Output | 120.7 x 50.8 x 251.5 | 1.2 |
| 3500/92 | Communication Gateway | Modbus Interface | 120.7 x 50.8 x 251.5 | 1.4 |
| 3500/20 | Rack Interface Module | I/O Interface for Displays | 120.7 x 50.8 x 251.5 | 1.3 |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the 3500/15 AC Power Module be hot-swapped without shutting down the rack?
A1: Yes, as long as a secondary power supply is installed, it can be hot-swapped without interrupting operation.
Q2: What is the maximum current draw for the 3500/15 Universal AC Module?
A2: The module draws a maximum of 2.8 A rms under full rack load conditions.
Q3: Can this module be used in marine or offshore applications?
A3: Yes, it meets DNV GL and ABS maritime standards.
Q4: Does this module support redundant power configurations?
A4: Yes, up to two modules can be installed, with automatic primary/backup switching.
Q5: What agency approvals does the 127610-01 version have?
A5: It is approved for use in Class I Division 2 and Zone 2 hazardous areas, with certifications from CSA, ATEX, and IECEx.
Q6: Is the module compatible with legacy 3500 AC Power Input Modules?
A6: No, it is not compatible with legacy High Voltage or Low Voltage AC PIMs.
Q7: What happens during an input over-voltage condition?
A7: A fuse opens in the Power Input Module to protect the system.
Q8: Where is the module typically installed in the 3500 rack?
A8: In the two dedicated half-height slots on the left side of the rack.
