— Product Description

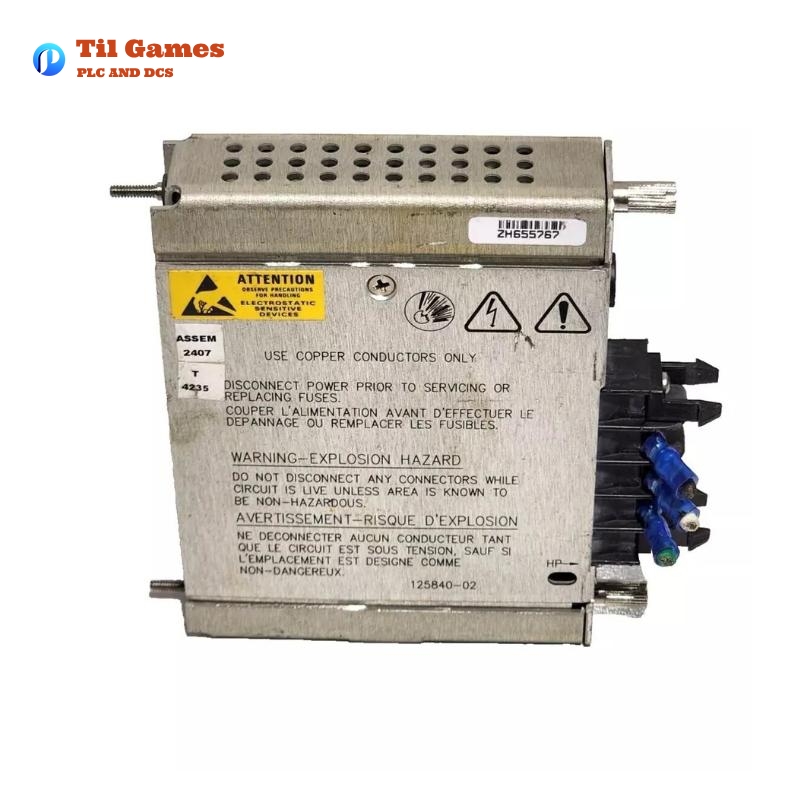

The Bently Nevada 3500/15-01-01-00 (125840-02) is a Low Voltage AC Power Input Module used in the 3500 Machinery Protection System. This module ensures stable power input to the system’s rack and is a critical component in maintaining continuous, uninterrupted monitoring of rotating machinery.
It accepts low voltage AC power input and converts it to the levels required by other 3500 modules. When used in redundant power configurations, two such modules can be installed in a single rack to enhance system reliability and maintain protection capabilities even in the event of primary power failure.
The 3500/15 is a vital link between external AC power sources and the internal components of the monitoring system, featuring high efficiency, low heat dissipation, and strict adherence to global industrial standards.
— Product Specifications
| Parameter | Description |
|---|---|
| Part Number | 125840-02 |
| Module Type | Low Voltage AC Power Input Module |
| Input Voltage Range | 85 to 132 Vac |
| Input Frequency | 47 to 63 Hz |
| Output Voltage (to rack) | 24 Vdc nominal |
| Power Output Capacity | Sufficient for full rack operation |
| Redundancy Support | Yes, supports redundant configuration with a second module |
| Heat Dissipation | Low, high-efficiency conversion |
| Compliance | FCC, CE, RoHS, ATEX, IECEx, DNV, ABS |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Tolerance | 95% RH, non-condensing |
| Dimensions | 120.7 x 25.4 x 114.3 mm |
| Weight | 0.34 kg (0.75 lb) |
— Key Features
-
Accepts low voltage AC input and provides stable DC output to 3500 rack
-
Compatible with redundant power configurations
-
Compact form factor and lightweight for modular installations
-
Low heat emission with efficient power conversion
-
LED indicators for operational and fault status
-
Field-replaceable for ease of maintenance
— Product Advantages
-
High Availability: Supports dual-redundant configurations to ensure continuous system operation
-
Global Compliance: Certified for use in harsh and hazardous industrial environments
-
Energy Efficient: Minimizes energy losses with efficient AC-DC conversion
-
Hot Swappable: Can be replaced while the system is online, reducing downtime
-
Built-in Diagnostics: LED indicators simplify troubleshooting and monitoring
-
Durable Construction: Designed for long-term performance in demanding applications
— Typical Applications
-
Industrial rotating machinery (compressors, turbines, motors)
-
Oil & Gas industry
-
Power generation plants
-
Pulp and paper processing
-
Petrochemical facilities
-
Marine propulsion systems
-
Steel manufacturing equipment
-
Any critical asset requiring high-integrity machinery protection systems
— Latest Headlines Featuring This Product
-
“Bently Nevada Expands 3500 Series Power Reliability with 125840-02 AC Module”
-
“Critical Power Input Module 125840-02 Gains ATEX and IECEx Certifications”
-
“Redundancy at its Best: 3500/15-01-01-00 Delivers Reliable Power to Industrial Monitoring”
-
“Baker Hughes Announces Enhanced Performance Metrics for Bently Nevada 3500/15 Series”
— Recommended Related Models (Same Series or Closely Related)
| Model | Description | Input Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3500/15-01-02-00 | High Voltage AC Power Input Module (Redundant Support) | 180-264 Vac | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 3500/15-01-03-00 | Universal AC Power Module with Enhanced Filtering | 85-264 Vac | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 3500/15-02-01-00 | Low Voltage DC Power Input Module | 20-30 Vdc | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 3500/15-02-02-00 | High Voltage DC Power Input Module | 90-140 Vdc | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 3500/25-01-01-00 | Enhanced Keyphasor Module | Signal Processing | 119.9 x 24.4 x 256.5 | 0.34 kg |
| 3500/22M-01-01-00 | TDI Module with Enhanced Diagnostics | Ethernet/Buffered Data | 120.7 x 25.4 x 114.3 | 0.30 kg |
— Recommended Popular Bently Nevada Models
| Model | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Vibration Monitoring | 120.7 x 25.4 x 114.3 | 0.32 kg |
| 3500/93 | LCD Display Module | Visual Data Display | 130 x 35 x 110 | 0.36 kg |
| 3500/33 | Relay Module | Alarm Relay Management | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 3500/22M | Transient Data Interface Module (TDI) | Communication & System I/O | 120.7 x 25.4 x 114.3 | 0.30 kg |
| 3500/70M | Recip Rod Position Monitor | Position Monitoring | 120.7 x 25.4 x 114.3 | 0.34 kg |
| 330104-00-18-10-02-00 | Proximity Probe | Shaft Vibration Detection | 74 x 18 x 18 (approx probe) | ~0.10 kg |
FAQ
— Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 3500/15-01-01-00 module?
A1: It supplies reliable low voltage AC power to the entire 3500 monitoring rack.
Q2: Can I use two 3500/15 modules for redundancy?
A2: Yes, it supports dual installation for redundant power configurations.
Q3: What is the power input range for this model?
A3: It operates with 85 to 132 Vac at 47 to 63 Hz.
Q4: Is the module hot-swappable?
A4: Yes, it can be replaced while the system remains operational.
Q5: Does this module support hazardous area installation?
A5: Yes, it complies with certifications including ATEX, IECEx, and Class I Division 2.
Q6: What kind of visual indicators are included?
A6: The module features LED indicators for operational and fault status.
Q7: How do I know if my module needs replacing?
A7: If the LED indicator shows a fault or system power is inconsistent, replacement may be needed.
Q8: What is the typical weight of the 3500/15-01-01-00?
A8: The module weighs approximately 0.34 kg (0.75 lbs).
