Technical Specifications
| Item | Detailed Specification |
|---|---|
| Total Length | 5.0 meters (including probe and extension cable) |
| Weight | 0.255 kg (typical) |
| Linear Range | 12.7 mm (500 mils) |
| Average Scale Factor | 0.787 V/mm (20 mV/mil) |
| Frequency Response | 0 – 2.7 kHz (+0/-3 dB typical with up to 305 m wiring) |
| Power Supply | -17.5 V to -26 VDC (no barrier) / -23 V to -26 VDC (with barrier) |
| Power Sensitivity | < 2 mV change per 1V input change |
| Probe Temperature Range | -35°C to +200°C (short term up to 250°C for <24 hrs) |
| Extension Cable Temp Range | -35°C to +200°C |
| Proximitor Temp Range | -51°C to +100°C |
| Relative Humidity | 100% condensing, non-submersible |
| Minimum Bend Radius | 25.4 mm (with/without stainless steel armor) |
| Probe Case Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyetheretherketone (PEEK) |
| Cable Jacket | PFA-insulated FluidLoc coaxial cable |

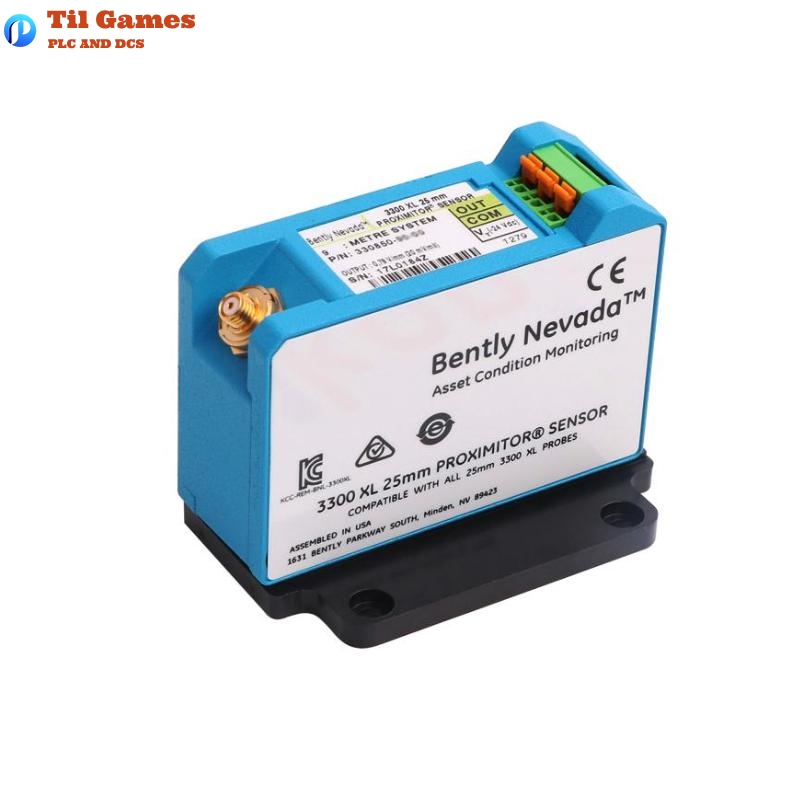

| Proximitor Sensor Material | A380 Aluminum |
| Recommended Target Size | 61 mm (2.4 in) diameter flat target |
| Mounting Type | Supports both DIN rail and panel mount |
| Compliance & Approvals | CE, FCC, RoHS, ATEX, IECEx, cNRTLus (Refer to full hazardous area ratings) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the linear range of the 330850-51-CN?
A1: It provides a linear range of 12.7 mm, starting from approximately 0.63 mm to 13.33 mm from the target.
Q2: What applications is this sensor designed for?
A2: It is designed for differential expansion (DE) measurement in steam turbine generators under harsh conditions.
Q3: What are the temperature limits of the probe?
A3: Operational from -35°C to +200°C, with short-term tolerance up to 250°C for less than 24 hours.
Q4: Can it replace older transducer systems?
A4: Yes, it is compatible with Bently Nevada 7200 Series 25 mm and 35 mm systems and DE Integral transducers.
Q5: What is the maximum field wiring length supported?
A5: Up to 305 meters (1,000 feet) between the Proximitor Sensor and the monitor.
Q6: Are special tools required for installation?
A6: No special tools are needed. SpringLoc terminal strips allow fast and secure field wiring.
Q7: Is the product certified for hazardous areas?
A7: Yes, it is certified under ATEX, IECEx, cNRTLus for various explosive and industrial environments.
Q8: What is the maintenance or calibration recommendation?
A8: It is recommended to periodically verify performance using the sliding bracket and dial indicator kit.
