Product Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.17 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Probe Cable Specification | 75 Ω triaxial, fluoroethylene propylene (FEP) insulated |
| Extension Cable Material | 75 Ω triaxial, fluoroethylene propylene (FEP) insulated |
| Proximitor Sensor Material | A380 aluminum |
| System Weight (typical) | 70 g (2.5 oz) (1m lead, no armor) |
| Maximum Thread Engagement | 0.750 in (1/2-20 thread) |
| Operating Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Storage Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Relative Humidity | 100% condensing, non-submersible with connector protection |
| Tensile Strength | 330 N (75 lbs) probe case to probe lead |
| Connector Material | Gold-plated brass |
| Probe Case Torque | 45.2 N•m (400 in•lb) maximum |
| Connector-to-Connector Torque | 0.565 N•m (5 in•lb) maximum |
FAQ
FAQs
-

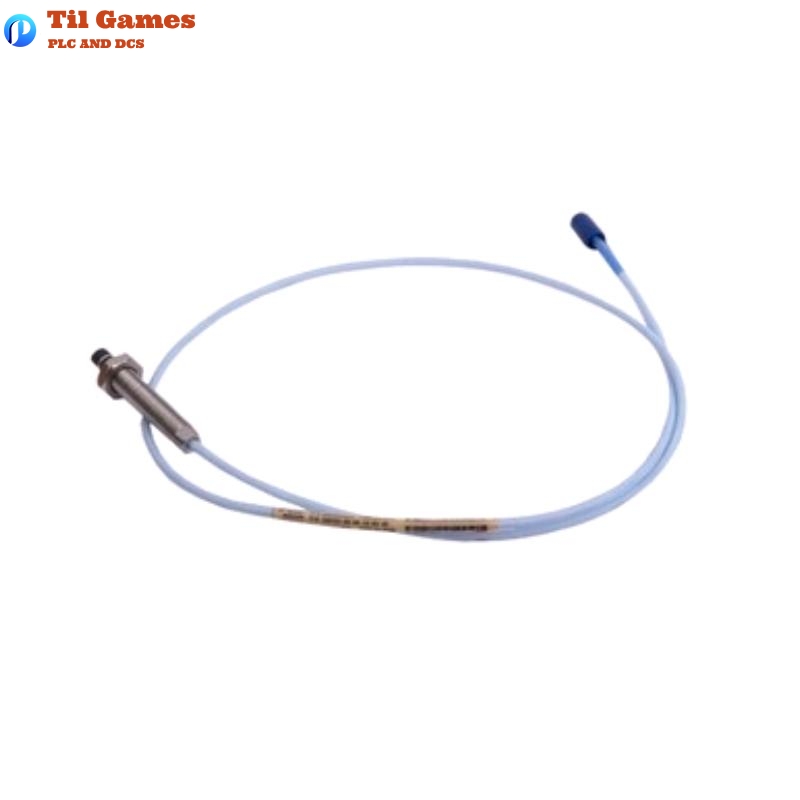

Q: What is the typical application for the 3300 XL 11 mm Proximity Probe?
A: The 3300 XL 11 mm Proximity Probe is typically used for axial position measurements, ramp differential expansion measurements on steam turbines, rod position or rod drop measurements on reciprocating compressors, tachometer and zero speed measurements, and Keyphasor signals. -
Q: What is the linear range of the 3300 XL 11 mm Probe?
A: The linear range of the 3300 XL 11 mm Probe is from 0.5 mm (20 mils) to 4.5 mm (180 mils), and the extended deviation from the straight line (DSL) range extends from 0.5 mm to 5.0 mm (20 to 200 mils). -
Q: What is the frequency response of the 3300 XL 11 mm Proximity Probe?
A: The frequency response is from 0 to 8 kHz, with a typical +0, -3 dB rolloff. -
Q: What is the recommended gap setting for this probe?
A: The recommended gap setting for the 3300 XL 11 mm Probe is 2.5 mm (100 mils). -
Q: What materials is the probe designed to work with?
A: The probe is factory calibrated to AISI 4140 steel, and it can be recalibrated to other target materials upon request. -
Q: What is the maximum operating temperature for the 3300 XL 11 mm Proximity Probe?
A: The maximum operating temperature for the probe is +177°C (+351°F), and it has a storage temperature range of -52°C to +177°C. -
Q: Can the 3300 XL 11 mm Proximity Probe be used in hazardous areas?
A: Yes, the 3300 XL Proximity Probe has hazardous area approvals, including ATEX, IECEx, and Class I, Division 2, among others. -
Q: How can I minimize cross-talk between probes when operating below recommended limits?
A: To minimize cross-talk between probes, ensure the gap is as small as possible while still maintaining the necessary linear range, and ensure that the probe separation meets the recommended minimum distance for radial vibration or axial position measurements.
