Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.07 kg |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Probe Cable Specification | 75 Ω triaxial, FEP insulated |
| Extension Cable Material | 75 Ω triaxial, FEP insulated |
| System Length | 5 or 9 meters (including extension cable) |
| Maximum Operating Temperature | 177°C (351°F) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Linear Range | 4.0 mm (160 mils) |
| Frequency Response | 0 to 8 kHz |
| Output Resistance | 50 Ω |
| Supply Sensitivity | < 2 mV change in output per voltage change |
| Capacitance (Extension Cable) | 69.9 pF/m (21.3 pF/ft) |
| System Weight | 255 g (Proximitor Sensor) |
FAQ
FAQs

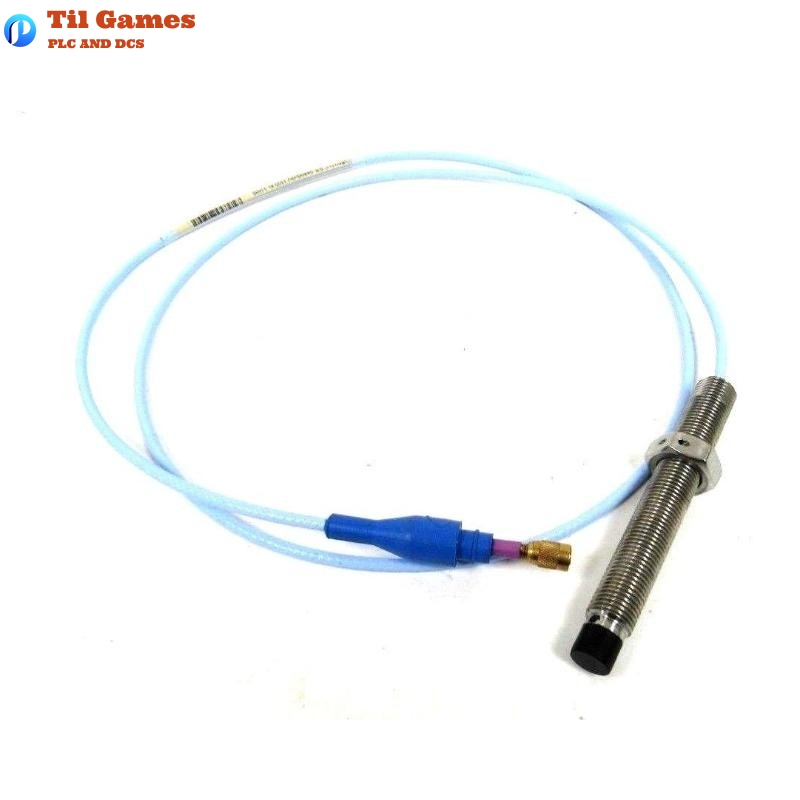

Q1: What is the purpose of the Bently Nevada 3300 XL 11 mm Proximity Probe?
A1: It is primarily used for measuring position or vibration in applications like radial vibration, axial position, and Keyphasor measurements on fluid film bearing machines.
Q2: What is the recommended gap setting for this probe?
A2: The recommended gap setting is 2.5 mm (100 mils).
Q3: What is the linear range of the Bently Nevada 3300 XL 11 mm Proximity Probe?
A3: The linear range is from approximately 0.5 mm (20 mils) to 4.5 mm (180 mils).
Q4: Can the probe be used for both axial and radial measurements?
A4: Yes, the probe is suitable for both axial (thrust) position measurements and radial vibration measurements.
Q5: What are the key features of the Proximitor Sensor?
A5: The Proximitor Sensor has improved RFI/EMI immunity, allowing it to achieve European CE mark approvals, and it is designed for high-density DIN-rail or traditional panel-mount configurations.
Q6: What materials are used for the probe tip and case?
A6: The probe tip is made of polyphenylene sulfide (PPS), and the probe case is made of AISI 304 stainless steel.
Q7: What is the maximum operating temperature for the system?
A7: The maximum operating temperature for the system is 177°C (351°F).
Q8: Is the probe temperature range suitable for extreme environments?
A8: Yes, the probe operates in temperatures ranging from -52°C to +177°C, making it suitable for a wide range of environmental conditions.
