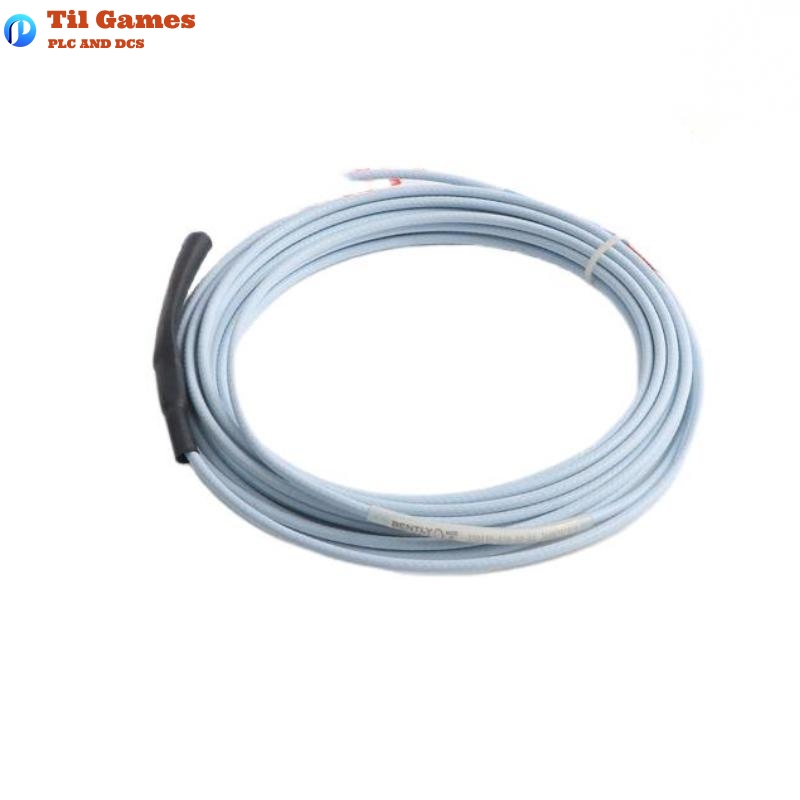

Technical Specifications for Bently Nevada 330173-00-06-10-02-CN 3300 5mm Proximity Probe
| Parameter | Details |
|---|---|
| Total Length | 1.0 meter (3.3 feet) |
| Weight | 0.161 kg (0.355 lbs) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Probe Cable | 75 Ω triaxial, FEP insulated |
| Probe Resistance (0.5m) | 7.45 ± 0.50 Ω |
| Probe Resistance (1.0m) | 7.59 ± 0.50 Ω |
| Probe Resistance (2.0m) | 7.88 ± 0.50 Ω |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) flat target |
| Shaft Diameter | Minimum 50.8 mm (2 in) |
| Operating Temperature Range (Probe) | -35°C to +177°C (-31°F to +350°F) |
| Operating Temperature Range (Cable) | -51°C to +177°C (-60°F to +350°F) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Tensile Strength (Probe Lead) | 222 N (50 lbf) |
FAQ
FAQ for Bently Nevada 330173-00-06-10-02-CN 3300 5mm Proximity Probe
Q1: What is the primary application of the 3300 5mm proximity probe?
-
The 3300 5mm proximity probe is primarily used for vibration and position measurement applications on fluid-film bearing machines. It is also suitable for Keyphasor and speed measurement applications.
Q2: What is the recommended gap setting for this probe?
-
The recommended gap setting for the 3300 5mm proximity probe is 1.27 mm (50 mils).
Q3: Can the probe be used in hazardous environments?
-
Yes, the probe complies with ATEX, IECEx, and other certifications for use in hazardous environments such as Zone 0/1 for gas and dust, with specific temperature classifications.
Q4: What is the probe’s linear range?
-
The probe’s linear range is from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils).
Q5: What materials are the probe tip and case made of?
-
The probe tip is made of Polyphenylene sulfide (PPS), and the probe case is constructed from AISI 303 or 304 stainless steel (SST).
Q6: What type of connector is used with the probe?
-
The probe uses corrosion-resistant, gold-plated brass ClickLoc connectors, which require only finger-tight torque for installation.
Q7: What is the frequency response of the system?
-
The system has a frequency response of 0 to 10 kHz, with a ±3 dB variation over this range, when up to 305 meters (1000 feet) of field wiring is used.
Q8: What is the recommended minimum shaft diameter for the probe?
-
The recommended minimum shaft diameter for the 3300 5mm proximity probe is 50.8 mm (2 inches), with a recommended minimum of 76.2 mm (3 inches) for optimal performance.
