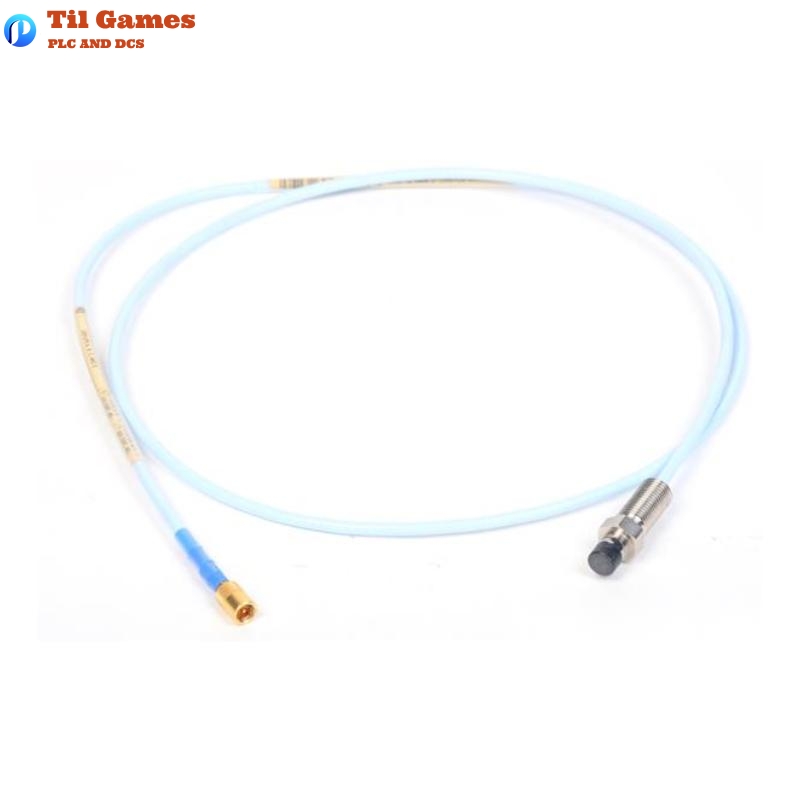

Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.5 meters (4.9 feet) |
| Weight | 0.485 kg (1.07 lb) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Probe Cable | 75Ω triaxial, fluoroethylene propylene (FEP) insulated |
| Extension Cable Resistance | 0.66 ± 0.10 Ω (for 3.0 meters length) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% |
| Temperature Range (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Temperature Range (Cable) | -52°C to +177°C (-62°F to +350°F) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Shaft Diameter (Minimum) | 50.8 mm (2 inches) |
| Minimum Target Size | 15.2 mm (0.6 inches) diameter (flat target) |
| Maximum Connector Torque | 0.565 N•m (5 in•lbf) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range for the 3300 XL 8 mm Reverse Mount Probe?
A1: The operating temperature range for the probe is from -52°C to +177°C (-62°F to +350°F).
Q2: What is the maximum allowable cable length for the system?
A2: The maximum allowable length for the extension cable is 305 meters (1,000 feet), though signal quality may degrade at longer lengths.
Q3: Can the 3300 XL 8 mm probe be used for measuring both static and dynamic values?
A3: Yes, the system can measure both static (position) and dynamic (vibration) values, making it suitable for fluid-film bearing machines.
Q4: What is the recommended gap setting for optimal performance?
A4: The recommended gap setting is -9 Vdc, which is approximately 1.27 mm (50 mils).
Q5: What materials is the probe tip made from?
A5: The probe tip is made from Polyphenylene sulfide (PPS), which offers durability and resistance to high temperatures.
Q6: What is the linear range of the 3300 XL 8 mm probe?
A6: The linear range is from approximately 0.25 mm (10 mils) to 2 mm (80 mils).
Q7: How does the 3300 XL 8 mm probe handle electromagnetic interference (EMI)?
A7: The 3300 XL Proximitor Sensor has improved immunity to radio frequency interference (RFI/EMI), ensuring it can be used in environments with high EMI without performance degradation.
Q8: Is there any protection against leakage for the probe’s cable?
A8: Yes, the optional FluidLoc cable prevents oil and other liquids from leaking out through the cable’s interior, providing additional protection in certain applications.
