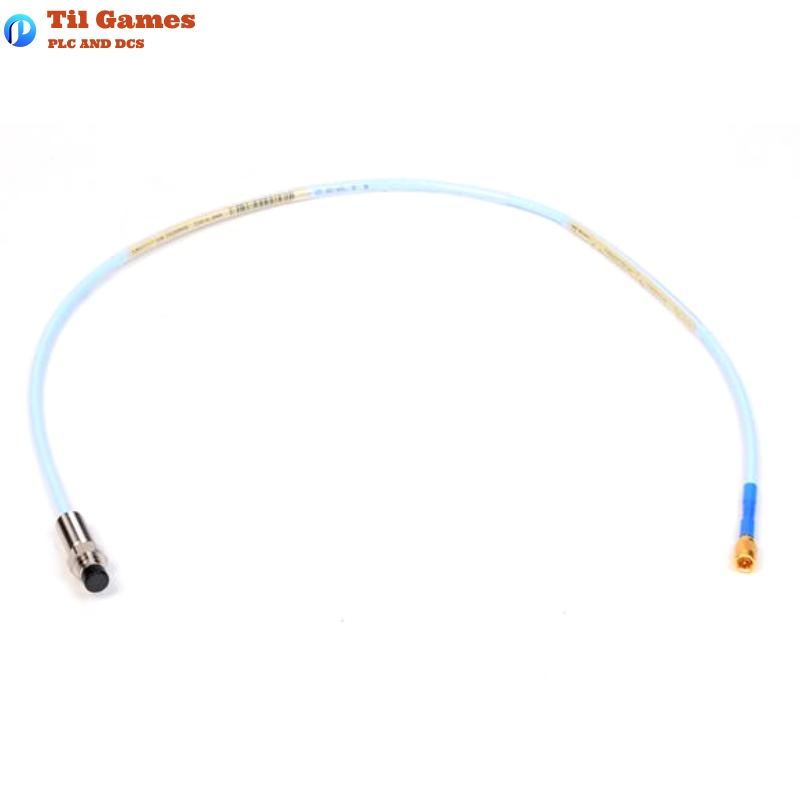

Technical Specifications
| Parameter | Details |
|---|---|
| Total Length | 0.5 meters (1.6 feet) |
| Weight | 0.161 kg (0.355 lbs) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Nominal Probe DC Resistance | 7.45 ± 0.50 Ω for 0.5m probe length |
| Nominal Extension Cable DC Resistance | 0.66 ± 0.10 Ω for 3.0m extension cable length |
| Linear Range | 2 mm (80 mils) from 0.25 mm (10 mils) to 2.3 mm (90 mils) |
| Recommended Gap Setting | -9 Vdc (approximately 1.27 mm or 50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 5% |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Range (ETR) | -52°C to +218°C for probe, -51°C to +260°C for cable |
| Shaft Diameter | Minimum 50.8 mm (2 in), recommended 76.2 mm (3 in) |
| Connector Type | Miniature coaxial ClickLoc |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Probe Cable Length Options | 0.5, 1.0, 1.5, 2.0, 3.0, 5.0 meters |
FAQ
FAQ (Frequently Asked Questions)
Q1: What is the operating temperature range of the 3300 XL 8 mm probe?
A1: The operating temperature range of the 3300 XL 8 mm probe is between -52°C to +177°C (-62°F to +350°F).
Q2: What is the recommended gap setting for radial vibration measurements?
A2: The recommended gap setting for radial vibration measurements is -9 Vdc, which corresponds to approximately 1.27 mm (50 mils).
Q3: Can the 3300 XL 8 mm system be used for both vibration and position measurements?
A3: Yes, the 3300 XL 8 mm system is designed for both vibration and position measurements on fluid-film bearing machines.
Q4: What is the total length of the 3300 XL 8 mm reverse mount probe?
A4: The total length of the 3300 XL 8 mm reverse mount probe is 0.5 meters (1.6 feet).
Q5: What is the weight of the 3300 XL 8 mm reverse mount probe?
A5: The weight of the 3300 XL 8 mm reverse mount probe is 0.161 kg (0.355 lbs).
Q6: Is the 3300 XL 8 mm probe compatible with other non-XL 3300 series components?
A6: Yes, the 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q7: How do the connectors on the 3300 XL 8 mm probe work?
A7: The 3300 XL 8 mm probe features corrosion-resistant, gold-plated ClickLoc connectors that require only finger-tight torque and prevent loosening.
Q8: Can the probe be used in hazardous areas?
A8: Yes, the 3300 XL 8 mm probe is certified for use in hazardous areas, with approvals including ATEX, IECEx, and cNRTLus for intrinsic safety and non-incendive circuits.
