Technical Specifications
| Parameter | Details |
|---|---|

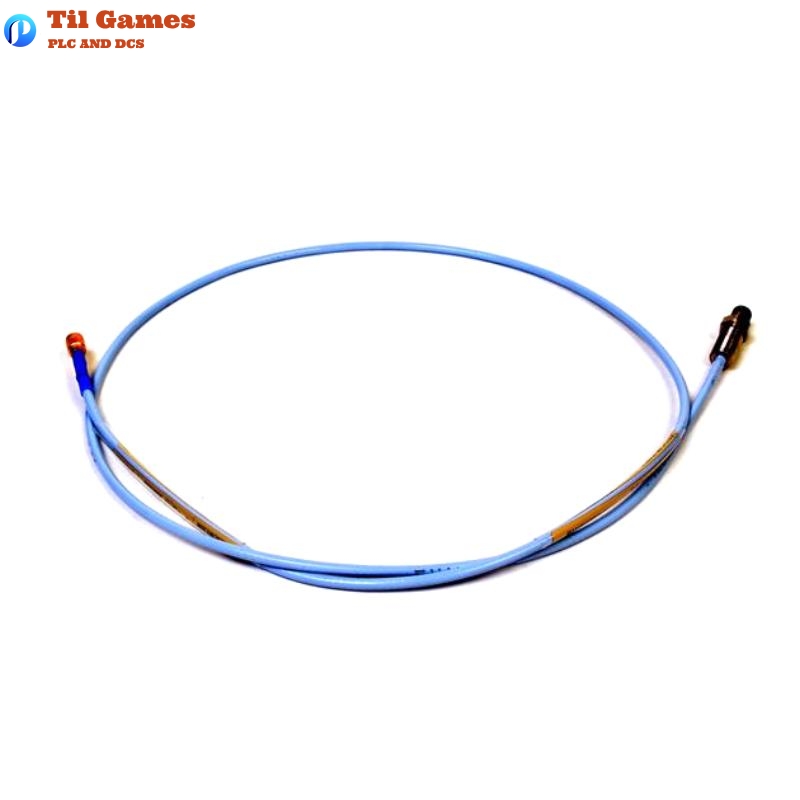

| Model | 3300 XL 8 mm Reverse Mount Probe |
| Probe Length | 0.5 meter (1.6 feet) |
| Total Length | 0.5 meter (1.6 feet) |
| Total Weight | 0.161 kg (0.355 lbs) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Maximum Rated Tensile Strength | 330 N (75 lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature Range | -52°C to +218°C (-62°F to +425°F) for probe tip; -51°C to +260°C (-60°F to +500°F) for probe cable and connector |
| Maximum Operating Pressure | Differential pressure between probe tip and case |
| Environmental Protection | IP54 (minimum protection) |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Compliance | RoHS, CE, ATEX, IECEx, SIL 2, SIL 3 |
| Hazardous Area Approvals | CSA, ATEX, IECEx approvals |
FAQ
FAQ
Q1: What is the purpose of the Bently Nevada 3300 XL 8 mm Reverse Mount Probe?
A1: The Bently Nevada 3300 XL 8 mm Reverse Mount Probe is primarily used for vibration and position measurements on fluid-film bearing machines. It is also used for Keyphasor reference and speed measurements.
Q2: What materials are used in the construction of the probe?
A2: The probe tip is made of polyphenylene sulfide (PPS), while the case is made of AISI 303 or 304 stainless steel (SST). The cable is a 75Ω triaxial, FEP insulated type.
Q3: What is the operating temperature range of the probe?
A3: The standard probe operates in the temperature range of -52°C to +177°C (-62°F to +350°F). There is an extended temperature range version for higher temperatures up to +218°C (+425°F) for the probe tip and +260°C (+500°F) for the probe cable.
Q4: Can this probe be used in hazardous environments?
A4: Yes, the 3300 XL 8 mm Reverse Mount Probe has various certifications for hazardous environments, including CSA, ATEX, and IECEx approvals.
Q5: What is the frequency response of the probe system?
A5: The system has a frequency response range of 0 to 10 kHz, with a +0, -3 dB response.
Q6: What is the minimum target size required for this probe?
A6: The minimum target size for this probe is 15.2 mm (0.6 inches) in diameter for a flat target.
Q7: What are the recommended shaft diameters for proper operation?
A7: The minimum recommended shaft diameter is 50.8 mm (2 inches), with the ideal being 76.2 mm (3 inches).
Q8: What type of connector is used with the probe?
A8: The probe uses miniature coaxial ClickLoc connectors, which are gold-plated for corrosion resistance and require only finger-tight torque for installation.
