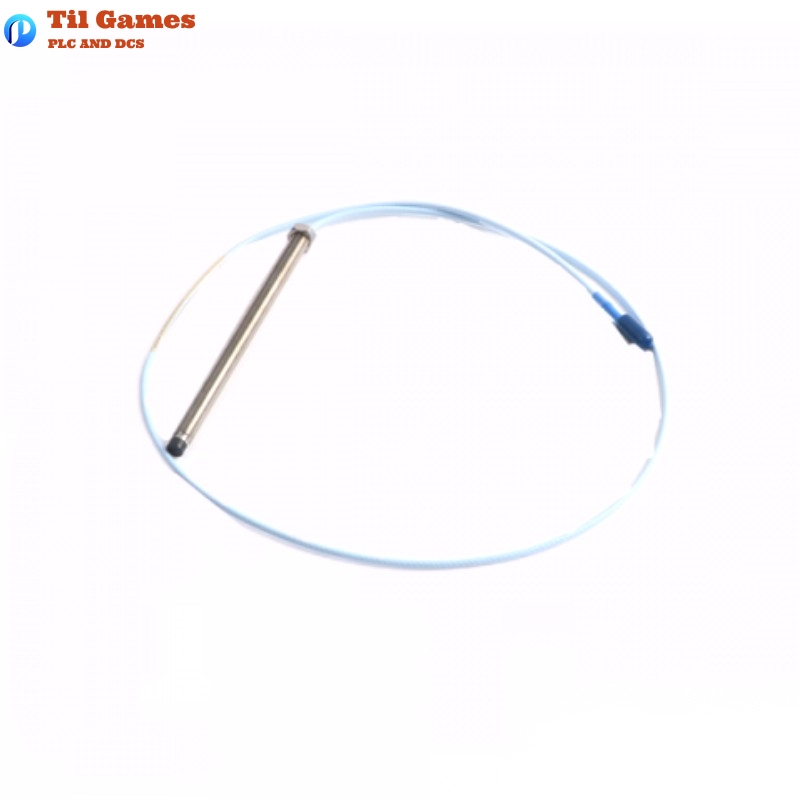

Technical Specifications – Bently Nevada 330103-00-07-05-02-00
| Parameter | Specification |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc (gold-plated) |
| Total Length | 0.5 meter |
| Weight | 0.161 kg (typical, for 0.5 m probe only) |
| Shaft Diameter Compatibility | Minimum: 50.8 mm (2 in), Recommended: ≥76.2 mm (3 in) |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | 1.27 mm (50 mils), approx. -9 VDC |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5 m systems) |
| DSL Accuracy | ≤ ±0.025 mm (±1 mil) (5 m standard system) |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter, flat |
| Power Supply Requirement | -17.5 VDC to -26 VDC, 12 mA typical |
| Environmental Temperature | -52°C to +177°C (standard), up to +218°C for ETR version |
| Humidity | ≤ 3% change in ASF after 56 days at 93% RH |
| Pressure Seal | Viton® O-ring; not pressure tested at factory |
| Cable Pull Strength | 330 N (probe tip to cable), 270 N (cable to connector) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Compliance | API 670 compliant, CE certified, RoHS, FCC, ATEX, IECEx, SIL 2/3 |
FAQ
FAQ – Bently Nevada 330103-00-07-05-02-00
Q1: What is the purpose of the 330103-00-07-05-02-00 proximity probe?
A1: This probe measures both static and dynamic distances from conductive surfaces, commonly used in machinery condition monitoring such as vibration and shaft position on fluid-film bearing machines.
Q2: Is the 330103 probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible and interchangeable with non-XL 3300 5 mm and 8 mm system components.
Q3: What type of material is the probe casing made from?
A3: The probe case is constructed from AISI 303 or 304 stainless steel, providing corrosion resistance and durability.
Q4: Can this probe be used in high-temperature environments?
A4: The standard version supports up to 177°C. For higher temperatures, the Extended Temperature Range (ETR) version can operate up to 218°C for the probe tip and 260°C for the cable.
Q5: Does this proximity probe support hazardous area installations?
A5: Yes, the probe has hazardous area approvals, including ATEX, IECEx, and North American certifications (Class I, Div 2).
Q6: What is the significance of the “ClickLoc” connectors?
A6: ClickLoc connectors offer secure, finger-tight connections that provide a click when correctly fastened, preventing loosening and enhancing environmental sealing.
Q7: How does the scale factor influence measurements?
A7: The scale factor defines the voltage output per unit displacement. This probe maintains a stable scale factor of 200 mV/mil ±5% over its linear range for accurate displacement readings.
Q8: What is the total weight of the 0.5-meter 330103 probe?
A8: The 0.5-meter probe weighs approximately 0.161 kg, making it lightweight and suitable for space-constrained applications.
