Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 330103-00-03-90-12-05 |

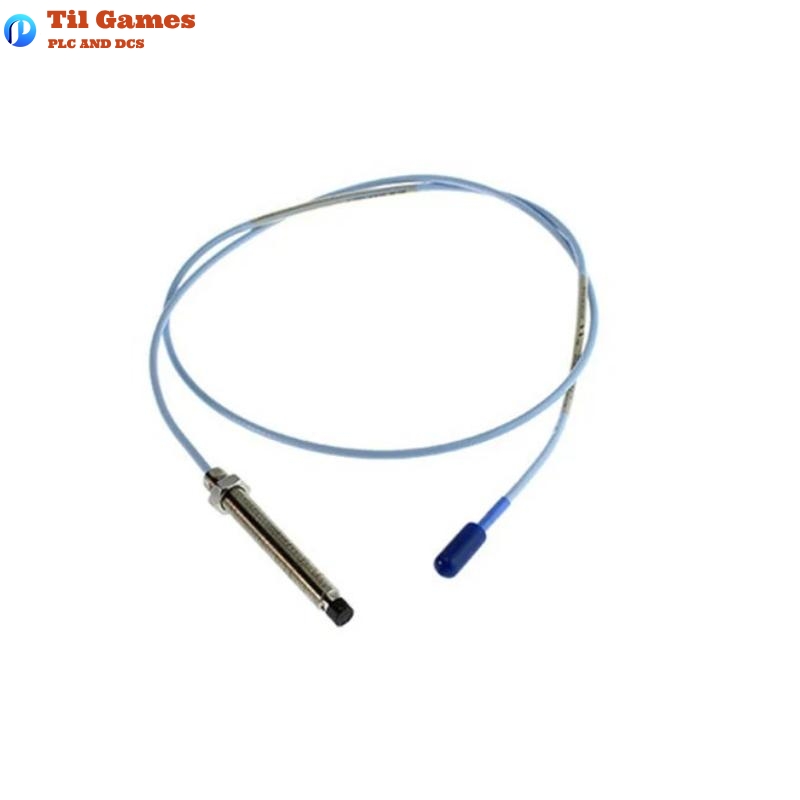

| Probe Type | 3300 XL 8 mm Proximity Probe (M10 x 1 thread) |
| System Configuration | Probe + Extension Cable + Proximitor Sensor |
| System Total Length | 9.0 meters |
| Total System Weight | 2.907 kg |
| Linear Range | 2.0 mm (80 mils), typical 0.25–2.3 mm (10–90 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ± 6.5% (9 m system) |
| Deviation from Straight Line (DSL) | ≤ ±0.038 mm (±1.5 mils) (9 m system) |
| Minimum Target Diameter | 15.2 mm (0.6 in), flat target |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB (with up to 305 m field wiring) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Cable Type | 75 Ω triaxial, FEP insulated (FluidLoc optional) |
| Connector Type | Miniature ClickLoc, gold-plated, finger-tight |
| Probe Pressure Rating | Viton® O-ring sealed (not pressure tested at factory) |
| Tensile Strength | 330 N (probe case to cable), 270 N (cable to connector) |
| Operating Temp – Probe | -52°C to +177°C (standard) / up to +218°C (ETR tip), +260°C (ETR cable) |
| Operating Temp – Sensor | -52°C to +100°C |
| Humidity Resistance | <3% change in ASF under 93% RH, 56-day test per IEC 68-2-3 |
| Recommended Gap Setting | -9 VDC ≈ 1.27 mm (50 mils) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Field Wiring | 305 m (1000 ft) max, shielded triad cable recommended |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330103-00-03-90-12-05 proximity probe?
A1: It is primarily used for vibration and position measurements in fluid-film bearing machines, including Keyphasor reference and speed applications.
Q2: Is the 330103 probe compliant with API 670 standard?
A2: Yes, the complete 3300 XL 8 mm system including this probe meets API 670 requirements for mechanical configuration, accuracy, linear range, and temperature stability.
Q3: Can the 330103 probe be used with older 3300 series systems?
A3: Yes, it is both electrically and physically backward compatible with non-XL 3300 5 mm and 8 mm system components, maintaining full interchangeability.
Q4: What is the recommended gap voltage for accurate radial vibration measurement?
A4: The recommended gap setting is approximately -9 VDC, equivalent to a physical distance of 1.27 mm (50 mils).
Q5: Is special tooling required to install the ClickLoc connectors?
A5: No special tools are needed. The ClickLoc connectors are designed for finger-tight installation with a click-lock mechanism to prevent loosening.
Q6: How does this probe handle high-temperature environments?
A6: Extended Temperature Range (ETR) versions of this probe are available, capable of up to +218°C at the probe tip and +260°C along the cable.
Q7: What type of cable insulation is used in this model?
A7: The standard probe uses FEP insulation. FluidLoc options are available to prevent oil migration through the cable jacket in lubrication-rich environments.
Q8: Can this probe be installed in hazardous areas?
A8: Yes. It holds ATEX, IECEx, and CSA certifications for hazardous area use, including Zone 0 and Zone 2 environments, when installed per certified drawings.
