Technical Specifications
| Parameter | Details |
|---|---|

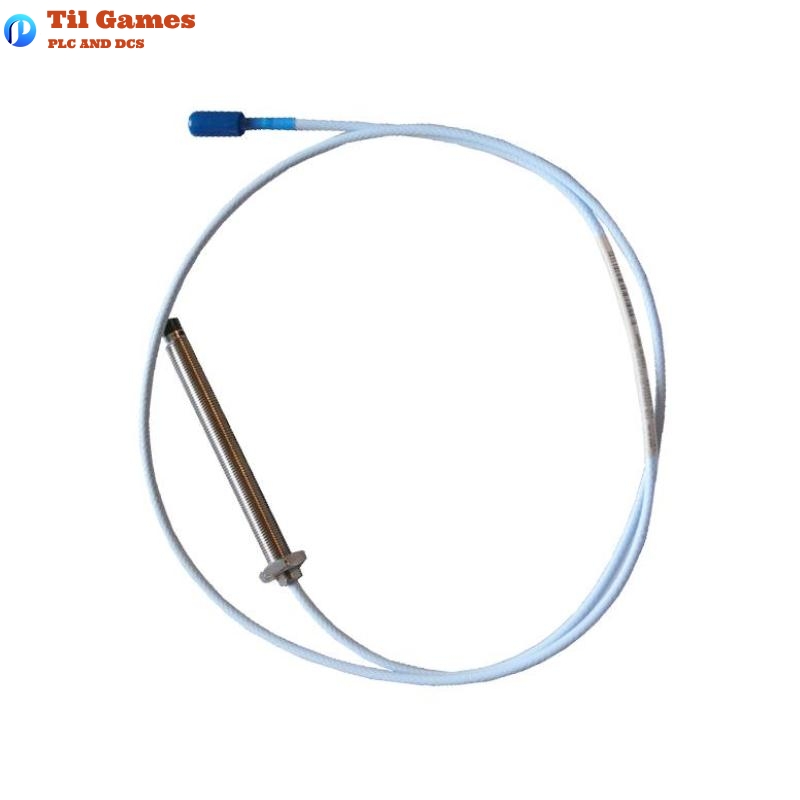

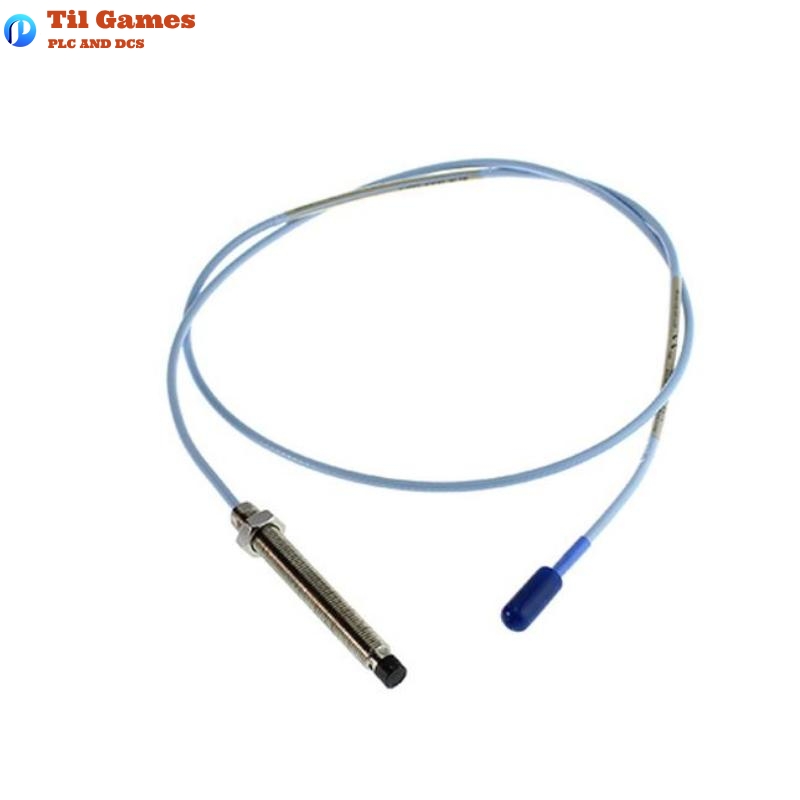

| Product Code | 330103-00-03-10-02-05 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 |
| Total Probe Length | 1.0 meter |
| Weight | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75 Ω triaxial FEP insulated |
| Connector Type | Miniature ClickLoc coaxial connector |
| Maximum Case Torque | 22.6 N·m (200 in·lbf) |
| Recommended Case Torque | 7.5 N·m (66 in·lbf) |
| Tensile Strength (Tip to Cable) | 330 N (75 lbf) |
| Tensile Strength (Cable to Extension) | 270 N (60 lbf) |
| Linear Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap | ~1.27 mm (50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (5 m system) |
| Deviation from Straight Line (DSL) | < ±0.025 mm (±1 mil) for 5 m or 1 m system |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature (Probe) | Same as operating |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥76.2 mm (3.0 in) |
| System Frequency Response | 0 – 10 kHz (±3 dB) |
| Compliance | API 670 compliant, CE Marked, SIL 2/3 certified |
| Hazardous Approvals | CSA, ATEX, IECEx for Class I, Div 1 & 2; Zone 0 & 2 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the linear measurement range of the 330103-00-03-10-02-05 probe?
A1: The probe offers a linear measurement range of 0.25 mm to 2.3 mm (10 to 90 mils).
Q2: What is the recommended gap setting for proper operation?
A2: The recommended gap setting is approximately 1.27 mm (50 mils), corresponding to a -9 VDC output.
Q3: Can this probe be used in hazardous environments?
A3: Yes, it is certified for use in hazardous areas with CSA, ATEX, and IECEx approvals for Zone 0, Zone 2, and Division 2.
Q4: Is this proximity probe compatible with non-XL series systems?
A4: Yes, it is both electrically and mechanically compatible with legacy 3300 5 mm and 8 mm series systems.
Q5: What are the material specifications for the probe construction?
A5: The probe tip is molded from PPS (Polyphenylene Sulfide), and the body is constructed from AISI 303/304 stainless steel.
Q6: How should the connectors be installed?
A6: Connectors feature a ClickLoc design and require finger-tight torque only; no special tools are necessary.
Q7: Is this probe suitable for extended temperature applications?
A7: This specific model (standard version) supports temperatures up to 177°C. For higher ranges, the ETR version should be used.
Q8: Does the product include armor or connector protection?
A8: This part number is specified without armor but includes a standard cable and connector protector.
