Technical Specifications
| Parameter | Specification |
|---|---|

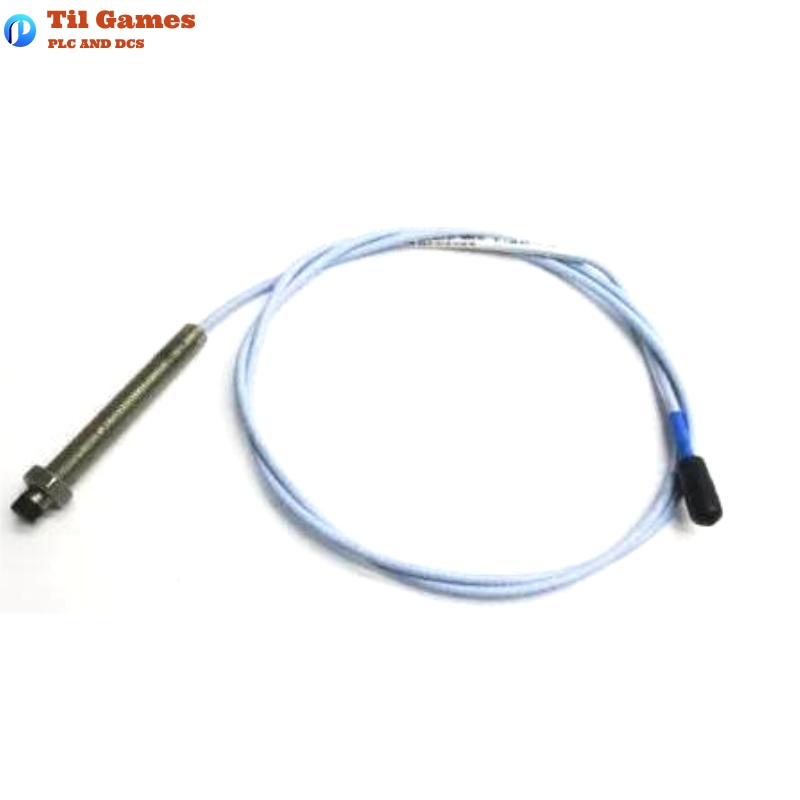

| Probe Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-30-10-02-00 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Type | 3/8-24 UNF |
| Case Material | AISI 303 or 304 Stainless Steel |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Cable Length (Total Length) | 1.0 meter |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Armor | Not included in this model |
| Tensile Strength (Cable to Probe) | 330 N (75 lbf) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Operating Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Storage Temperature (Probe) | -52°C to +177°C (-62°F to +350°F) |
| Pressure Sealing | Viton® O-ring seal between probe tip and case |
| Linear Range | 2.0 mm (80 mils), from 0.25 to 2.3 mm |
| Scale Factor (5 m/1 m system) | 7.87 V/mm (200 mV/mil) ±5% |
| Deviation from Best Fit Line (DSL) | ±0.025 mm (±1 mil) over linear range |
| Material Certifications | RoHS, CE (EMC 2014/30/EU), FCC part 15, SIL 2/3 compliant |
| Environmental Protection | Optional connector protectors recommended |
| Mounting Torque | 11.2 N·m (100 in·lbf) – recommended |
| Minimum Shaft Diameter | 50.8 mm (2.0 in); Recommended ≥ 76.2 mm (3.0 in) |
| System Length | 1.0 meter (probe only, no extension cable) |
| Weight | 0.323 kg (0.71 lb) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330101-00-30-10-02-00 proximity probe?
A1: It is mainly used for vibration and position measurements in rotating machinery with fluid-film bearings. It is also suitable for Keyphasor reference and speed measurements.
Q2: Is the 330101 probe compatible with other 3300 series components?
A2: Yes, it is fully compatible and interchangeable with both XL and non-XL 3300 series 5 mm and 8 mm components.
Q3: What is the recommended gap voltage setting for this proximity probe?
A3: The recommended gap setting is -9 VDC, which corresponds to approximately 1.27 mm (50 mils) from the target.
Q4: Can this probe be used in high-temperature environments?
A4: The standard version can operate up to 177°C. For higher temperatures, the Extended Temperature Range (ETR) version should be used.
Q5: Does this probe require a separate extension cable?
A5: No, this specific model is a 1.0-meter version and does not require an extension cable.
Q6: What type of connector is used in this model?
A6: It uses a miniature coaxial ClickLoc connector with a locking mechanism that ensures secure connection without the need for tools.
Q7: What is the maximum allowable tensile load on the probe cable?
A7: The maximum rated tensile strength from the probe case to cable is 330 N (75 lbf).
Q8: Is it necessary to use connector protectors?
A8: It is highly recommended for all installations to enhance environmental sealing and prevent oil ingress, especially in harsh environments.
