Technical Specifications
| Parameter | Specification |
|---|---|

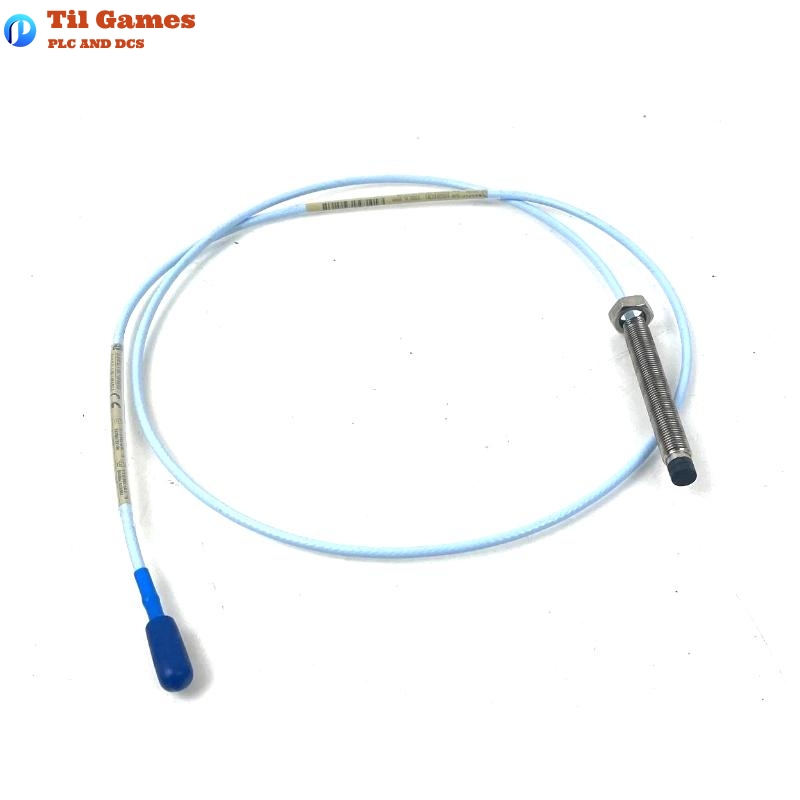

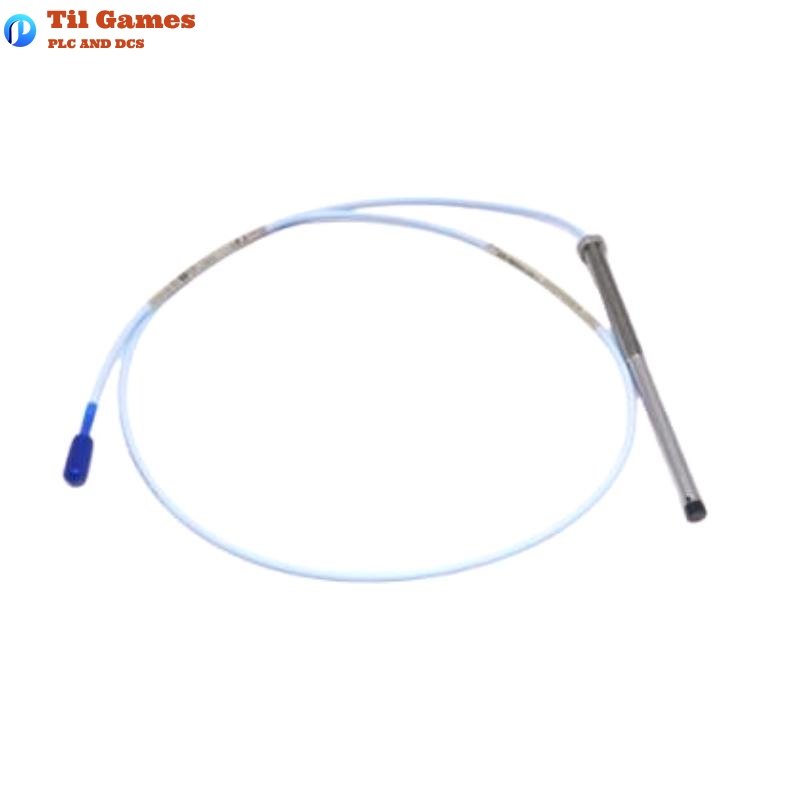

| Model Number | 330101-00-28-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (323 g) |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | Miniature coaxial ClickLoc, gold-plated |
| Operating Temperature (Probe) | -52°C to +177°C |
| Storage Temperature (Probe) | -52°C to +177°C |
| Extended Temperature Option | Up to +218°C (probe tip), +260°C (cable) |
| Linear Range | 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap (Radial Vibration) | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% |
| Deviation from Best Fit Line | ≤ ±0.025 mm (±1 mil) for 1 m / 5 m systems |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat) |
| Probe Cable Tensile Strength | 330 N (75 lbf) |
| Minimum Cable Bend Radius | 25.4 mm (1 in) |
| Humidity Tolerance | ≤ 3% change in ASF under 93% RH for 56 days (IEC 68 2 3) |
| Thread Engagement | 3/8-24 UNF, Max Length: 0.563 in (14.3 mm) |
| Approvals | CSA, ATEX, IECEx (optional, code 05) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the total length and weight of the 330101-00-28-10-02-00 proximity probe?
A1: The total length is 1.0 meter and the weight is approximately 0.323 kg.
Q2: What is the primary application of the 3300 XL 8 mm proximity probe?
A2: It is used for vibration and position measurements in fluid-film bearing machines and also suitable for Keyphasor reference and speed measurement.
Q3: Is this probe compliant with API 670 standards?
A3: Yes, the 3300 XL 8 mm 5-meter system fully meets the API 670 requirements for mechanical configuration, accuracy, linear range, and temperature stability.
Q4: What materials are used in the probe construction?
A4: The probe tip is made of PPS (Polyphenylene Sulfide), and the case is constructed from AISI 303 or 304 stainless steel.
Q5: Can the probe operate in high-temperature environments?
A5: Yes, the standard version supports up to +177°C, and the extended temperature range (ETR) version supports up to +218°C for the probe tip and +260°C for the cable.
Q6: Is the probe interchangeable with older 3300-series components?
A6: Yes, it is fully interchangeable with non-XL 3300 5 mm and 8 mm system components, both electrically and mechanically.
Q7: What is the recommended gap for radial vibration monitoring?
A7: The recommended gap setting is approximately 1.27 mm (50 mils), which corresponds to -9 Vdc output.
Q8: Are special tools required for installation?
A8: No special tools are needed. The ClickLoc connectors are designed for finger-tight installation and “click” to indicate secure engagement.
