Technical Specifications
| Parameter | Details |
|---|---|

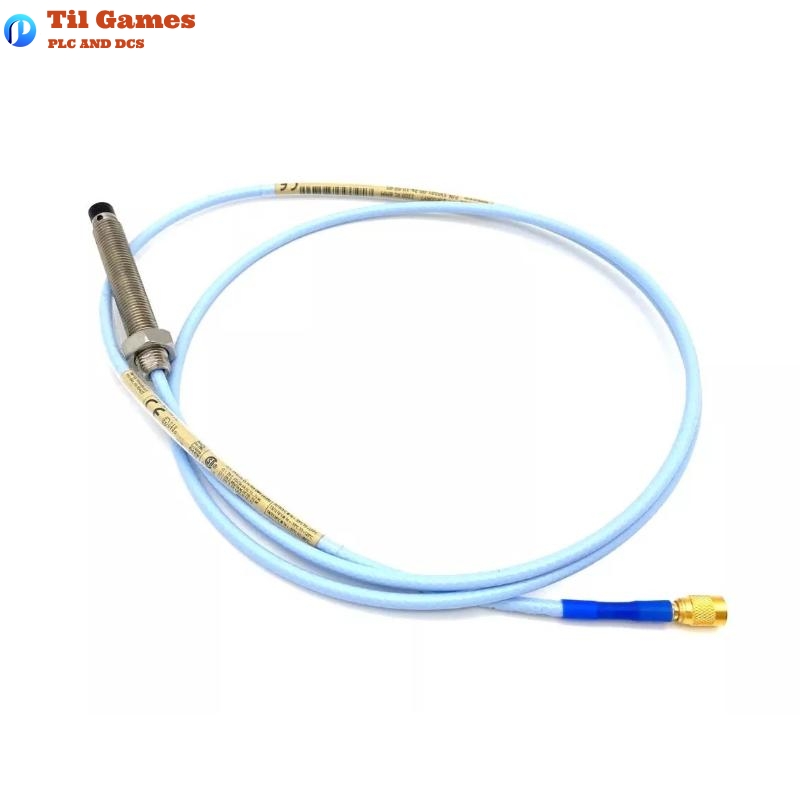

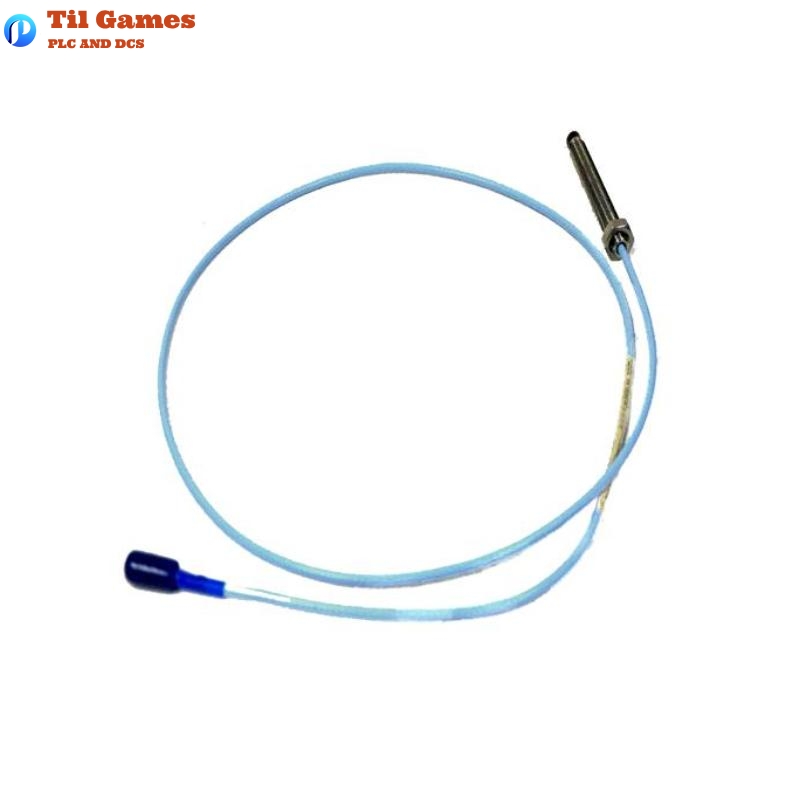

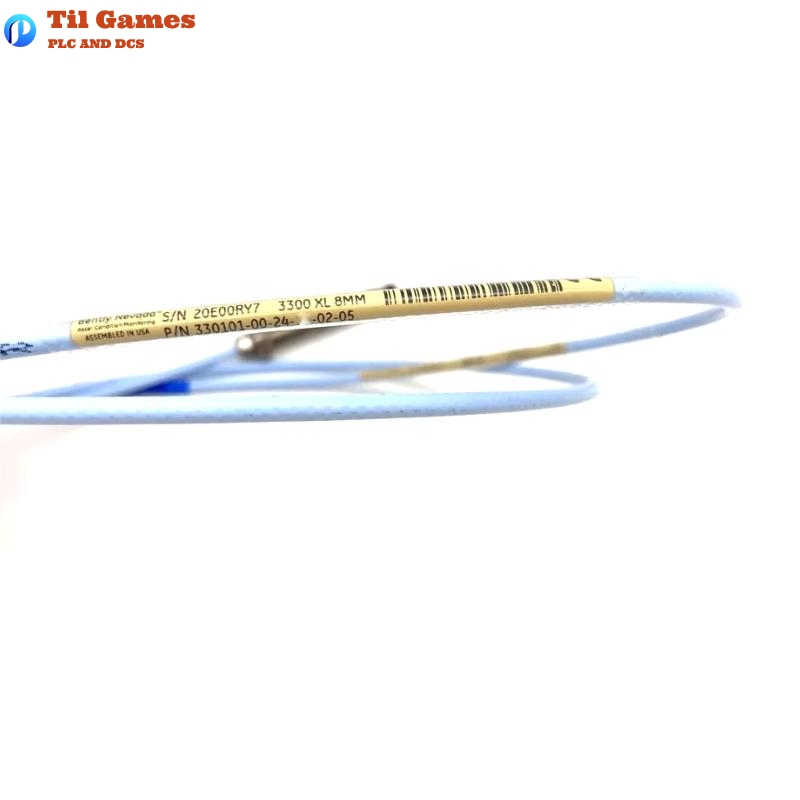

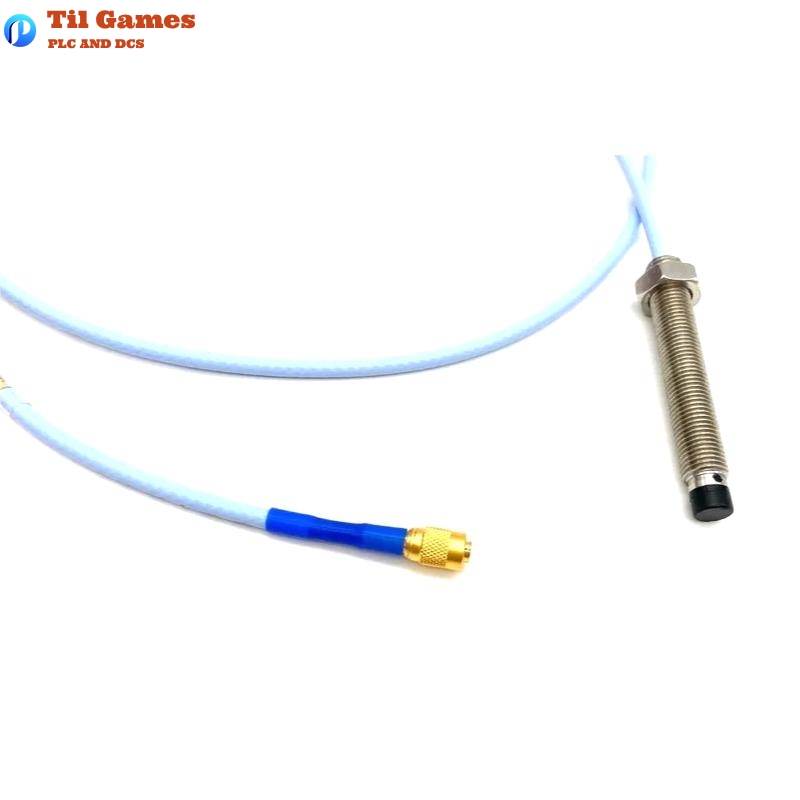

| Product Type | Proximity Probe (3300 XL 8 mm series) |
| Model Number | 330101-00-24-05-02-00 |
| System Compatibility | 3300 XL Proximitor Sensor and Extension Cable |
| Sensing Technology | Eddy Current |
| Measurement Range | 2 mm (80 mils), linear from 0.25 mm to 2.3 mm |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5 m system) |
| Deviation from Straight Line (DSL) | ≤ ±0.025 mm (±1 mil) (5 m system) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat target) |
| Minimum Shaft Diameter | 50.8 mm (2 in) / Recommended: 76.2 mm (3 in) |
| Operating Temperature – Probe | -52°C to +177°C |
| Operating Temperature – Sensor | -52°C to +100°C |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector Type | Miniature coaxial ClickLoc connector (gold-plated) |
| Material – Probe Tip | PPS (Polyphenylene Sulfide) |
| Material – Probe Body | Stainless Steel AISI 303 or 304 |
| Environmental Protection | RFI/EMI immunity, IP54+ with connector protector |
| Pressure Seal | Viton® O-ring sealed (not pressure-tested by default) |
| Extension Cable Capacitance | ~69.9 pF/m |
| Connector Torque | Finger-tight (ClickLoc) |
| Total Length | 0.5 meter |
| Total Weight | Approx. 0.162 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What does the model number 330101-00-24-05-02-00 represent?
A1: This model number specifies a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, 0.5-meter total length, standard FEP cable, ClickLoc connector with standard approval.
Q2: Can the probe be used in high-temperature environments?
A2: Yes. Standard probes operate up to 177°C, while Extended Temperature Range (ETR) versions are available for up to 218°C (probe tip) and 260°C (cable).
Q3: Is this probe interchangeable with older 3300 series components?
A3: Yes. The 3300 XL 8 mm probe is both electrically and physically compatible with legacy 3300 5 mm and 8 mm components.
Q4: What type of targets can this probe measure?
A4: It is factory-calibrated for AISI 4140 steel. Calibration to other materials is possible upon request.
Q5: How is the probe protected against electromagnetic interference?
A5: The system is designed with high RFI/EMI immunity, meeting CE requirements without the need for shielded conduit or metallic enclosures.
Q6: What is the recommended gap setting for radial vibration monitoring?
A6: Approximately 1.27 mm (50 mils), which corresponds to -9 Vdc output.
Q7: Does the probe support installation in hazardous areas?
A7: Yes. It carries CSA, ATEX, and IECEx approvals for use in Zone 0 and Zone 2 environments depending on installation method.
Q8: Is additional sealing required for the connector ends?
A8: Connector protectors are recommended and can be pre-installed or ordered separately to enhance environmental sealing and reduce contamination risk.
