Technical Specifications
| Parameter | Details |
|---|---|

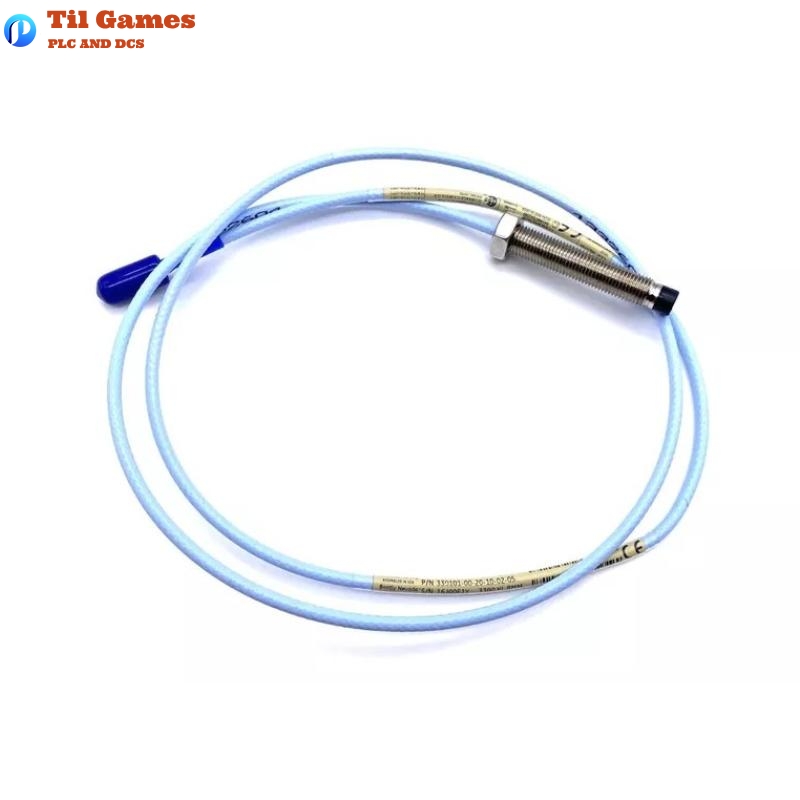

| Product Type | Proximity Probe (Part of 3300 XL 8 mm Proximity Transducer System) |
| Model Number | 330101-00-20-10-02-05 |
| Application | Vibration and position measurement on fluid-film bearing machines |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | -9 Vdc, approx. 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (standard 5 m/1 m), ±6.5% (9 m) |
| DSL Accuracy | ±0.025 mm (5 m/1 m), ±0.038 mm (9 m), ±0.038 mm (ETR) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated (standard) or PFA (ETR) |
| Connector Type | Miniature coaxial ClickLoc |
| Connector Material | Gold-plated brass or beryllium copper |
| Probe Mounting Thread | 3/8-24 UNF |
| Total Length | 1.0 meter |
| Weight | 0.323 kg (probe only) |
| System Length Options | 1 m (probe only), 5 m, 9 m with extension cable |
| Max Cable Bend Radius | 25.4 mm (1.0 in) |
| Temperature Range – Standard Probe | –52°C to +177°C (–62°F to +350°F) |
| Temperature Range – ETR Probe | –52°C to +218°C (probe tip), –51°C to +260°C (cable/connector) |
| Humidity Tolerance | <3% deviation in ASF under 93% RH over 56 days (IEC 68-2-3) |
| Output Resistance | 50 Ω |
| Minimum Target Size | 15.2 mm diameter flat target |
| Recommended Shaft Diameter | ≥76.2 mm (3 in) |
| Field Wiring Range | 0.2–1.5 mm² (16–24 AWG); max length 305 m |
| EMI/RFI Immunity | CE compliant, does not require shielded conduit |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the Bently Nevada 330101-00-20-10-02-05 probe?
A1: This probe is designed for vibration and position measurements in rotating machinery, especially those with fluid-film bearings.
Q2: Can this proximity probe operate at high temperatures?
A2: Yes. The standard version handles up to +177°C, while the Extended Temperature Range (ETR) version supports up to +218°C at the probe tip.
Q3: Is this probe compliant with API 670?
A3: Yes, the 3300 XL 8 mm system, including this probe, complies with API 670 mechanical configuration, accuracy, and linear range requirements.
Q4: What is the advantage of the ClickLoc connector?
A4: The ClickLoc connector is corrosion-resistant, requires no tools, and locks securely with a tactile “click”, ensuring consistent and reliable connections.
Q5: How accurate is the 330101-00-20-10-02-05 probe system?
A5: When used with matched system components, the deviation from the best-fit straight line (DSL) is ±0.025 mm for a 1 m or 5 m system, and ±0.038 mm for a 9 m system.
Q6: What materials are used in the probe construction?
A6: The tip is molded from PPS plastic, and the body is constructed from AISI 303 or 304 stainless steel for durability and chemical resistance.
Q7: Can I mix 3300 XL components with non-XL 3300 series parts?
A7: While possible, mixing XL and non-XL components limits system performance to that of the non-XL series and is not recommended for high-accuracy applications.
Q8: Is the probe system affected by magnetic fields or EMI?
A8: The system offers high resistance to RFI/EMI and shows minimal output voltage changes even when exposed to 60 Hz magnetic fields up to 300 Gauss.
