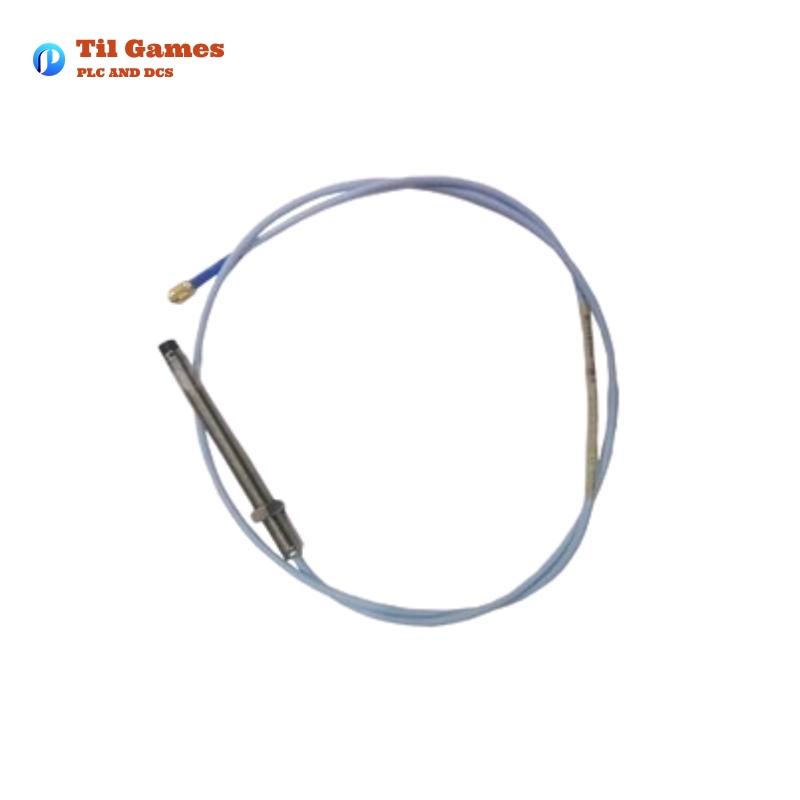

Product Overview: Bently Nevada 330101-00-19-10-02-00 3300 XL 8 mm Probe
The Bently Nevada 3300 XL 8 mm Probe is part of the 3300 XL Proximity Transducer System. It is designed to provide highly accurate vibration and position measurements for industrial machinery, particularly for fluid-film bearing machines. This system is also used for Keyphasor reference and speed measurements. The probe, together with its accompanying components, offers advanced performance and is compliant with stringent industry standards, such as API 670.
Product Components:
-
3300 XL 8 mm Probe
-
3300 XL Extension Cable
-
3300 XL Proximitor Sensor
This system is highly interchangeable, meaning it can seamlessly integrate with existing 3300 series 5 mm and 8 mm probes and sensors, offering flexibility and ease of maintenance. It is designed to handle both static (position) and dynamic (vibration) measurements.
Specifications:
| Parameter | Value |
|---|---|
| Probe Material | Polyphenylene sulfide (PPS) (tip), AISI 303/304 stainless steel (case) |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Nominal Probe DC Resistance | 7.59 ± 0.50 Ω (1.0 meter length) |
| Nominal Extension Cable DC Resistance | 0.66 ± 0.10 Ω (3 meters length) |
| Nominal Extension Cable Capacitance | 69.9 pF/m |
| Nominal Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Nominal Gap Setting | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Maximum Rated Cable Pull Strength | 330 N (75 lbf) |
| System Length | Available in 1 meter, 5 meters, and 9 meters |
| Operating Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Weight | Total system: 0.7 kg (1.5 lb), Probe: 323 g (11.4 oz) |
| Connector Type | Gold-plated, ClickLoc coaxial connector |
Features:
-
High Interchangeability: The system is fully backward compatible with older 3300 series components, reducing the need for recalibration.
-
Advanced Signal Integrity: Enhanced RFI/EMI immunity ensures stable performance, even in electrically noisy environments.
-
Durable Design: The probe has a robust build, with PPS plastic tip encapsulation and stainless steel casing, making it resistant to physical abuse.
-
Easy Installation: ClickLoc connectors allow for easy installation and removal without the need for specialized tools.
-
Extended Temperature Range Options: Available probes and cables rated up to 260°C (500°F), ensuring versatility in high-temperature applications.
Applications:
-
Vibration Monitoring: Primarily used for vibration measurements on rotating machinery, especially fluid-film bearings.
-
Position Sensing: Accurate position monitoring in machinery like turbines and compressors.
-
Keyphasor and Tachometer Measurements: Used for speed and overspeed monitoring in critical machinery.
Advantages:
-
Interchangeability: Components can be easily swapped without compromising performance, simplifying system upgrades.
-
Reduced Installation Costs: Thanks to the improved RFI immunity and easy-to-use connectors, installation is cost-effective.
-
Compatibility with Older Systems: The system works seamlessly with older 3300 series probes and sensors, allowing for gradual system upgrades without significant capital investment.
Latest Reports:
-
“Bently Nevada’s 3300 XL 8 mm Probe System Enhances Industrial Monitoring”
-
“How the 3300 XL Probe Meets API 670 Standards for Mechanical Configuration”
-
“High-Temperature Performance of Bently Nevada’s Proximity Probes in Turbine Applications”
Recommended Related Models:
| Model | Description | Key Specifications |
|---|---|---|
| 330102 | 3300 XL 8 mm Probe with armor | Armor protection, same dimensions as 330101 |
| 330103 | 3300 XL 8 mm Probe, M10 x 1 thread | Compatible with M10 threaded installations |
| 330105 | 3300 XL 8 mm Reverse Mount Probe | Suitable for reverse mount applications |
| 330191 | 3300 XL Extended Temperature Range Probe | Higher temperature range for extreme conditions |
| 330180 | 3300 XL Proximitor Sensor | Integral part of the proximity system |
| 330130 | 3300 XL Extension Cable | Compatible with 3300 XL probes and sensors |
Popular Bently Nevada Models:
| Model | Description | Key Specifications |
|---|---|---|
| 330101 | 3300 XL 8 mm Probe (standard) | 8 mm diameter, non-armored, 1-meter length |
| 330110 | 3300 5 mm Probe | For tighter installation spaces, smaller diameter |
| 330050 | 3300 XL 5 mm Probe | 5 mm diameter, standard version |
| 330550 | 3300 8 mm Probe | Designed for general industrial use |
| 330820 | 3300 XL Keyphasor Sensor | Used for rotational speed and position sensing |
| 330120 | 3300 8 mm Probe with Armor | Armor-protected version for rugged environments |
FAQ
FAQ (QA Format)
Q1: What is the primary use of the 3300 XL 8 mm probe?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines and for Keyphasor reference and speed measurements.
Q2: Can I use the 3300 XL 8 mm probe with older 3300 series components?
A2: Yes, it is fully backward compatible with older 3300 series 5 mm and 8 mm probes and sensors.
Q3: What is the temperature range for the standard 3300 XL 8 mm probe?
A3: The standard probe operates within -52°C to +177°C (-62°F to +350°F). Extended temperature range probes can go up to +260°C (500°F).
Q4: What does “extended temperature range” mean for the probe?
A4: The extended temperature range allows the probe to operate in higher temperature environments without losing accuracy, with a maximum of +260°C (500°F).
Q5: How do the ClickLoc connectors benefit the installation process?
A5: They allow for tool-free installation, reducing installation time and providing a secure connection that cannot loosen under vibration.
Q6: Can I use this probe in hazardous environments?
A6: Yes, the 3300 XL 8 mm probe is certified for use in hazardous areas with ATEX and IECEx approvals.
Q7: How do I select the correct probe length?
A7: Probe lengths are available in 1, 5, and 9 meters. The appropriate length depends on your specific application and the distance between the machine and the monitoring system.
Q8: Are the components of the 3300 XL 8 mm system interchangeable?
A8: Yes, all components are interchangeable with other 3300 series systems, ensuring easy upgrades and replacements.
