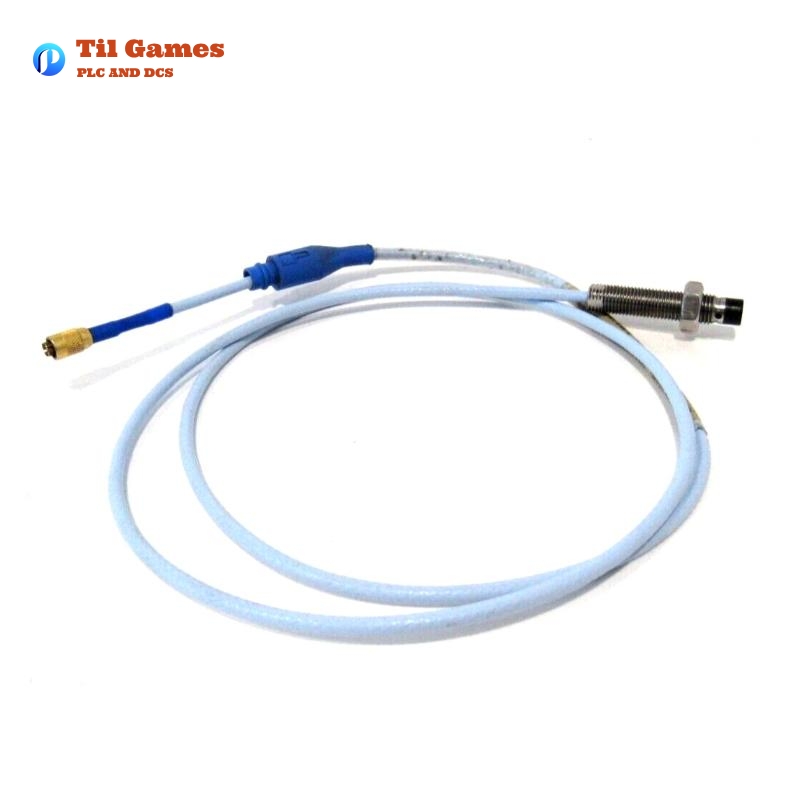

Bently Nevada 330101-00-16-10-02-00 3300 XL 8 mm Probe

Bently Nevada 330101-00-16-10-02-00 3300 XL 8 mm Probe

Manufacturer:Bently Nevada

Product Number:330101-00-16-10-02-00

Product Type:3300 XL 8 mm Probe

Origin:USA

Total Length:1.0 meter

Weight:0.323 kg

Views:6

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/330101-00-16-10-02-00-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/330101-00-16-10-02-00-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/330101-00-16-10-02-00-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/330101-00-16-10-02-00.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview: Bently Nevada 330101-00-16-10-02-00 3300 XL 8 mm Probe

The Bently Nevada 330101-00-16-10-02-00 3300 XL 8 mm Probe is part of the 3300 XL Proximity Transducer System, designed for precise vibration and position measurements in industrial applications. The system is ideal for fluid-film bearing machines, as well as Keyphasor reference and speed measurements. This proximity probe is known for its ruggedness, accuracy, and ease of integration into monitoring systems.

Key Features:

  • Advanced Performance: The 3300 XL 8 mm probe delivers superior performance with a robust design that ensures longevity and high accuracy.

  • Compatibility: The system components are fully interchangeable and backward compatible with older 3300 series probes, allowing for seamless upgrades.

  • Robust Construction: Features like the TipLoc molding method ensure strong bonding between probe tip and body, while the CableLoc technology provides excellent cable durability.

  • Enhanced Immunity: The system includes a Proximitor Sensor with advanced RFI/EMI immunity, making it resistant to electromagnetic interference, which is beneficial in industrial environments with high RF activity.

Applications:

  • Vibration monitoring of machinery, such as turbines, compressors, and motors.

  • Shaft position and Keyphasor reference measurements in rotating equipment.

  • Suitable for critical applications in API 670 standard-compliant systems.

Technical Specifications

Feature Specification
Total Length 1.0 meter
Weight 0.323 kg
Resistance (RPROBE) 7.59 ± 0.50 Ω for 1-meter probe
Resistance (RCORE) 0.66 ± 0.10 Ω (for 3.0-meter extension)
Capacitance (Extension Cable) 69.9 pF/m
Linear Range 0.25 mm (10 mils) to 2 mm (80 mils)
Gap Setting for Radial Vibration -9 Vdc (1.27 mm or 50 mils)
Frequency Response 0-10 kHz ±3 dB (max. 305 meters wiring)
Connector Type Miniature coaxial ClickLoc
Maximum Temperature 177°C (350°F) standard, 260°C (500°F) for ETR

Advantages

  • Highly Interchangeable: No need for bench calibration or matching parts; components can be swapped with ease across different systems.

  • Durability: The 8 mm probe’s robust construction withstands harsh conditions and ensures long-term reliability.

  • Reduced Installation Complexity: The gold-plated connectors and advanced wiring options (such as FluidLoc cable) reduce installation time and enhance environmental protection.

  • Extended Temperature Range Options: The ETR version supports temperatures up to 260°C, suitable for high-heat environments.

Related Models and Recommendations

Model Description Main Feature
330101 3300 XL 8 mm Probe (standard) Ideal for standard applications
330102 3300 XL 8 mm Probe (with armor) Enhanced durability
330191 3300 XL 8 mm Probe (ETR, without armor) Extended temperature range
330192 3300 XL 8 mm Probe (ETR, with armor) High temperature resistance
330105 3300 XL 8 mm Reverse Mount Probe Reverse mounting compatibility
330180 3300 XL Proximitor Sensor Integrates with 8 mm probes

Popular Bently Nevada Models

Model Description Main Feature
330500 Vibration Monitoring System High-accuracy vibration analysis
330130 Extension Cable for 3300 XL Probes Robust and long-lasting cable
330700 3300 Series Proximity Transducer Flexible integration
3500/42M Machinery Protection System Comprehensive protection
3500/22 Vibration Module Real-time data monitoring
330500 Vibration Monitoring System Precision in industrial setups
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the primary application of the Bently Nevada 3300 XL 8 mm Probe?

  • A1: The probe is primarily used for vibration and position monitoring on fluid-film bearing machines and other rotating equipment, such as turbines and compressors.

Q2: What is the linear range of the 3300 XL 8 mm Probe?

  • A2: The linear range spans from 0.25 mm (10 mils) to 2 mm (80 mils).

Q3: Can I use this probe with older 3300 series components?

  • A3: Yes, the 3300 XL 8 mm Probe is compatible with older 3300 series probes and components.

Q4: What is the maximum temperature the probe can withstand?

  • A4: The standard version of the probe can withstand up to 177°C (350°F), while the extended temperature range (ETR) version supports up to 260°C (500°F).

Q5: What kind of connectors does this probe use?

  • A5: The probe uses gold-plated ClickLoc connectors that require no special tools for installation and provide robust connections.

Q6: Is the system easy to install?

  • A6: Yes, the system includes features like SpringLoc terminal strips and ClickLoc connectors for fast, tool-free installation.

Q7: What is the significance of the FluidLoc cable option?

  • A7: The FluidLoc cable option prevents liquids such as oils from leaking into the cable, making it suitable for environments where liquid containment is crucial.

Q8: Does the 3300 XL 8 mm Probe support hazardous area approvals?

  • A8: Yes, the system complies with CSA, ATEX, and IECEx standards, making it suitable for installation in hazardous areas.
