Product Description:

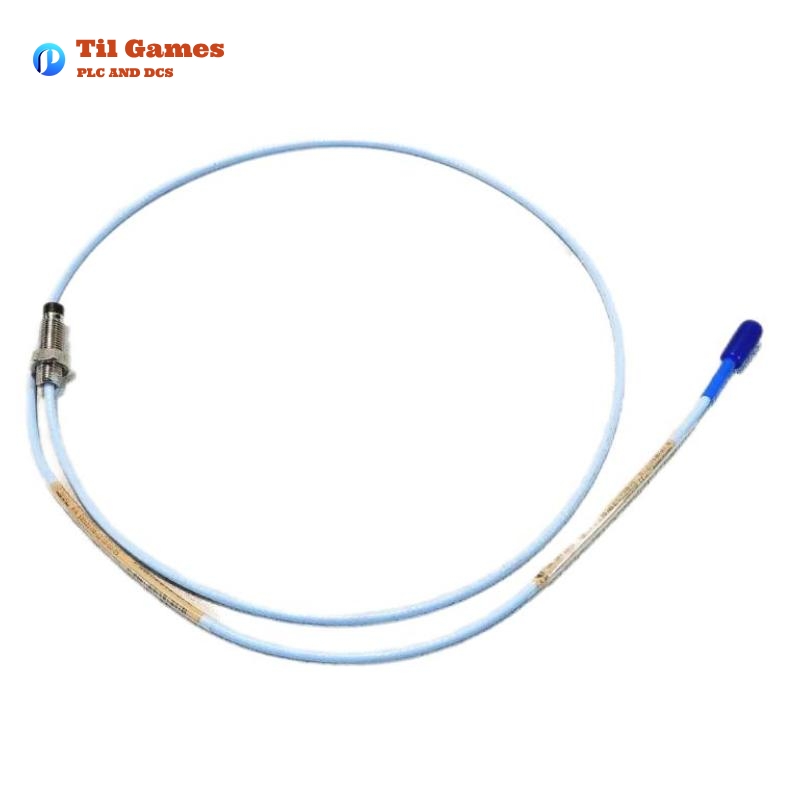

The Bently Nevada 3300 XL 8 mm Probe is part of the 3300 XL Proximity Transducer System, which is designed for measuring vibration and position in fluid-film bearing machines. It consists of the probe, an extension cable, and a proximitor sensor, providing a voltage output proportional to the distance between the probe tip and the observed conductive surface. The system is ideal for both static (position) and dynamic (vibration) measurements, offering superior performance for fluid-film bearing machines, Keyphasor reference, and speed measurements.
Key Features:
-
8 mm diameter probe for precise measurements.
-
Fully compliant with the API 670 standard, ensuring high performance in mechanical configuration, linear range, accuracy, and temperature stability.
-
Interchangeability: The 3300 XL components (probe, extension cable, and proximitor sensor) are backward compatible with older 3300 5 mm and 8 mm systems, providing flexibility in usage.
-
Rugged design with a robust bond between the probe tip and body, as well as a cable offering pull strength up to 75 lbf.
-
Extended temperature range options, supporting up to 425°F for the probe and 500°F for the extension cable.
Applications:
-
Vibration and position monitoring in fluid-film bearing systems.
-
Keyphasor reference and speed measurement applications.
-
High-temperature environments, supported by extended temperature range options.
-
Critical machinery monitoring, including turbines, compressors, and pumps.
Product Advantages:
-
High accuracy with a 0.25 mm to 2 mm linear range.
-
Compatibility with other Bently Nevada 3300 series components, ensuring easy upgrades or replacements.
-
Advanced immunity to RFI/EMI, reducing interference from nearby electronic equipment.
-
Low installation complexity, with tool-less connectors for fast and secure wiring.
Specifications Table:
| Parameter | Details |
|---|---|
| Probe Length Options | 0.5 m, 1.0 m, 1.5 m, 2.0 m, 3.0 m, 5.0 m, 9.0 m |
| Weight | 0.323 kg (probe), 1.5 lbs (total system) |
| Linear Range | 2 mm (80 mils) |
| Nominal Probe DC Resistance | 7.45 ± 0.50 Ω (for 0.5 m probe) |
| Operating Temperature Range | -52°C to +177°C (standard probe), up to +425°F (ETR) |
| Supply Voltage | -17.5 Vdc to -26 Vdc |
| Minimum Target Size | 15.2 mm (0.6 in) diameter |
| Shaft Diameter | Minimum 50.8 mm (2 in) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Maximum Frequency Response | 10 kHz |
| Connector Type | Gold-plated ClickLoc connectors |
Related Models:
| Model | Description | Key Features |
|---|---|---|
| 330102 | 3300 XL 8 mm Probe with Armor | Added durability with armor |
| 330105 | 3300 XL Reverse Mount Probe | Reverse mount for tight spaces |
| 330130 | 3300 XL Extension Cable, 3 meters | Flexible cable option |
| 330140 | 3300 XL Smooth Case Probe | Smooth case with different length options |
| 330191 | 3300 XL Extended Temperature Range Probe | Extended temperature capabilities |
| 330196 | 3300 XL Extended Temperature Reverse Mount | High-temp and reverse mount probe |
Popular Bently Nevada Models:
| Model | Description | Features |
|---|---|---|
| 3300/5 | 3300 Series Proximity Probe | Ideal for vibration measurement in rotating machinery |
| 3300/16 | 3300 XL Vibration Monitoring System | Advanced monitoring for high-speed machinery |
| 3300/01 | 3300 Basic Proximity Probe | Basic model for industrial vibration monitoring |
| 3300/04 | 3300 Analog Input Module | Analog module for interfacing with measurement systems |
| 3300/12 | 3300 LVDT Proximity Probe | Linear variable differential transformer version |
| 3300/20 | 3300 Digital Input Module | Digital data acquisition for real-time monitoring |
FAQ
FAQs
Q1: What is the operational range of the 3300 XL 8 mm probe?
-
A1: The probe operates with a linear range of 0.25 mm to 2.3 mm from the target, providing accurate measurements within this range.
Q2: Can the Bently Nevada 3300 XL probe be used in hazardous environments?
-
A2: Yes, the 3300 XL probe is certified for use in hazardous areas under various certifications, including ATEX, IECEx, and SIL ratings.
Q3: What is the maximum temperature the 3300 XL probe can withstand?
-
A3: The standard probe supports up to 177°C (350°F), while the extended temperature range (ETR) probes can withstand up to 425°F for the probe and 500°F for the extension cable.
Q4: How do I install the 3300 XL probe and sensor system?
-
A4: The system uses tool-less, ClickLoc connectors for easy installation. Detailed installation instructions are available in the product manual.
Q5: Is the 3300 XL system compatible with older 3300 series components?
-
A5: Yes, the 3300 XL system components are backward compatible with earlier 3300 5 mm and 8 mm systems.
Q6: Can the 3300 XL probe be used for both vibration and position measurements?
-
A6: Yes, the 3300 XL probe is designed to measure both vibration and position, making it ideal for a variety of industrial applications.
Q7: What materials can be used with the 3300 XL system for target calibration?
-
A7: The 3300 XL system is factory calibrated to AISI 4140 steel but can be calibrated to other materials upon request.
Q8: What are the benefits of using the 3300 XL system over other models?
-
A8: The 3300 XL system offers superior performance in accuracy, temperature stability, and flexibility, along with compatibility with existing 3300 series components and easy installation with ClickLoc connectors.
