Product Specifications
| Parameter | Specification |
|---|---|

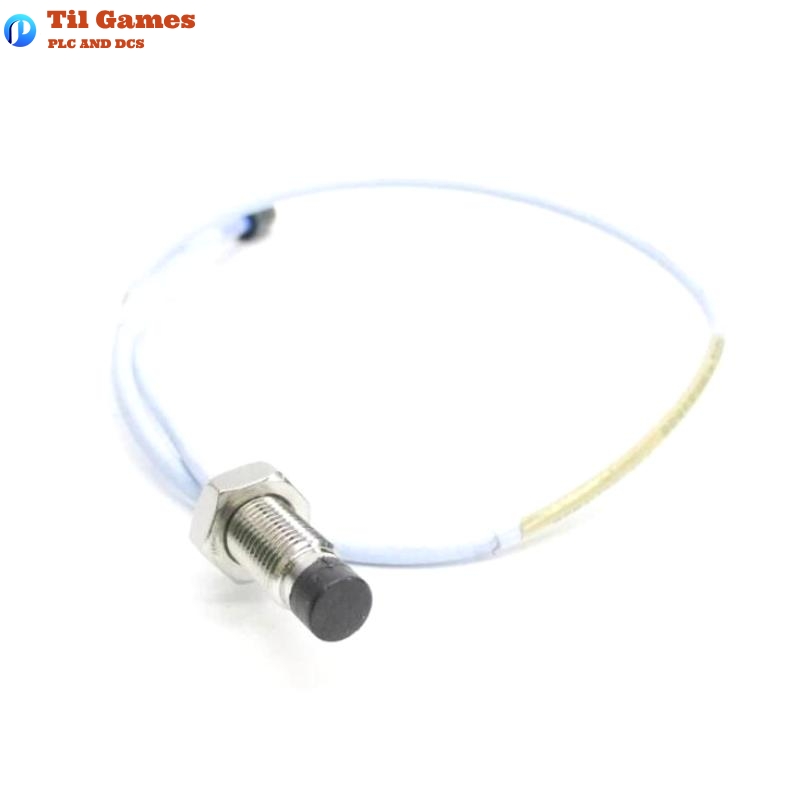

| Probe Model | 330101-00-10-05-02-05 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 stainless steel |
| Cable Type | 75Ω triaxial, FEP insulated (standard) |
| Connector Type | Miniature coaxial ClickLoc, gold-plated |
| Cable Length | 0.5 meter |
| Linear Range | 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm |
| Recommended Gap | 1.27 mm (50 mils), corresponding to -9 Vdc |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (standard 5 m system) |
| Output Resistance | 50 Ω |
| Minimum Target Size | 15.2 mm (0.6 in) flat diameter |
| Minimum Shaft Diameter | 50.8 mm (2 in); recommended: 76.2 mm (3 in) |
| Temperature Range (Probe) | -52°C to +177°C |
| Relative Humidity Tolerance | <3% change in scale factor after 56 days at 93% humidity |
| Pressure Seal | Viton® O-ring sealed; not pressure-tested by default |
| Mounting Thread | 3/8-24 UNF |
| Max Thread Engagement | 0.563 in (14.3 mm) |
| Max Probe Case Torque | 33.9 N·m (300 in·lbf) |
| Recommended Case Torque | 11.2 N·m (100 in·lbf) |
| Minimum Bend Radius of Cable | 25.4 mm (1.0 in) |
| Weight (Total System) | 0.162 kg (0.357 lb) |
| Standard Compliance | API 670, CE, FCC, RoHS |
| Hazardous Approvals | CSA, ATEX, IECEx |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the Bently Nevada 330101-00-10-05-02-05 proximity probe?
A1: This probe measures the distance between the probe tip and a conductive target, enabling static (position) and dynamic (vibration) measurements on rotating machinery with fluid-film bearings.
Q2: What materials is the probe constructed from?
A2: The tip is made of PPS (Polyphenylene sulfide) and the probe case is stainless steel (AISI 303 or 304), ensuring durability in industrial environments.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, the standard probe is rated for temperatures from -52°C to +177°C. For higher temperatures, an Extended Temperature Range (ETR) version is available.
Q4: Does this probe require field calibration?
A4: No. The 3300 XL 8 mm probes are designed to be interchangeable without individual calibration when used with matching system components.
Q5: What is the recommended shaft size for accurate radial vibration measurements?
A5: The recommended minimum shaft diameter is 76.2 mm (3 inches) for optimal scale factor and reduced signal interference.
Q6: What type of connector does the probe use?
A6: The probe features a miniature gold-plated ClickLoc coaxial connector that ensures secure connection with a finger-tight locking mechanism.
Q7: Is the probe suitable for use in hazardous areas?
A7: Yes, this model has CSA, ATEX, and IECEx certifications and supports installation in Zone 0 and Zone 2 hazardous environments when installed per guidelines.
Q8: How much does the 0.5 meter version of this probe weigh?
A8: The total system weight for the 0.5 meter version is approximately 0.162 kg.
