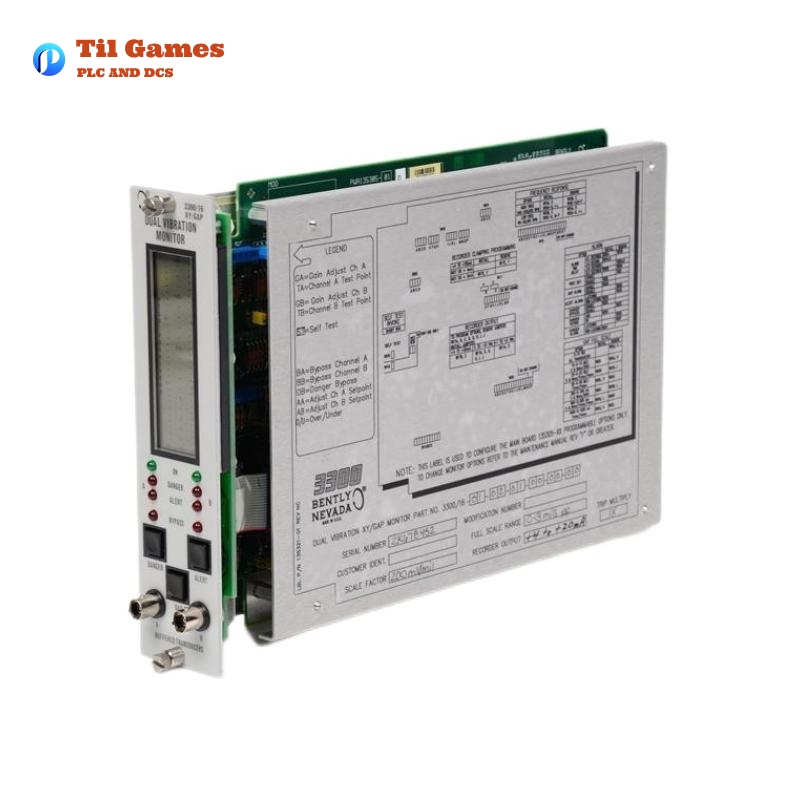

Bently Nevada 3300/16-01-02-01-00-00-00 XY/GAP Dual Vibration Monitor

Bently Nevada 3300/16-01-02-01-00-00-00 XY/GAP Dual Vibration Monitor

Manufacturer:Bently Nevada

Product Number:3300/16-01-02-01-00-00-00

Product Type:XY/GAP Dual Vibration Monitor

Origin:USA

Vertical Dimension:83 mm

Weight:1 kg

Views:14

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-01-00-00-00-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-01-00-00-00-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-01-00-00-00-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-01-00-00-00.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Bently Nevada 3300/16-01-02-01-00-00-00 XY/GAP Dual Vibration Monitor is a state-of-the-art monitoring device designed to continuously measure and monitor two independent channels of radial vibration and average shaft position (gap). It accepts inputs from two proximity probe/Proximitor® systems, making it an essential tool for asset condition monitoring in various industrial applications.

Product Specifications

Parameter Value
Signal Inputs Accepts one or two proximity probe signals
Input Impedance 10 kΩ
Sensitivity 100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm) user-programmable
Power Consumption 2 watts (nominal)
Frequency Response User-programmable for 4 to 4,000 Hz (240 to 240,000 cpm) or 1 to 600 Hz (60 to 36,000 cpm)
Recorder Outputs +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc
Output Impedance (voltage outputs) 100 Ω
Voltage Compliance (current outputs) 0 to +12 Vdc range across load
Recorder Accuracy ±0.7% of signal, ±0.09 mA offset for +4 to +20 mA; ±1.1% of signal, ±10 mV offset for +1 to +5 Vdc; ±1.1% of signal, ±15 mV offset for 0 to -10 Vdc
Transducer Supply Voltage User-programmable for -24 Vdc or -18 Vdc
Alarm Setpoints Digitally adjustable from 0 to 100% of full-scale
Gap Alarm Time Delay 6 seconds
Relays One alarm relay module can be installed behind each monitor
Displays Non-multiplexing vertical bargraph type Liquid Crystal Display (LCD)
Resolution Within ±1.6% of monitor full-scale
Size (Vertical Dimension) 83 mm (3.25 in)
Weight 1 kg (2.2 lbs.)
Operating Temperature 0°C to +65°C (+32°F to +150°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity Up to 95%, non-condensing

Product Features

  • Dual Vibration Monitoring: Continuously measures and monitors two independent channels of radial vibration.
  • Gap Monitoring: Provides average shaft position (gap) monitoring, which is crucial for detecting misalignment and other mechanical issues.
  • User-Programmable Sensitivity: Allows customization of sensitivity settings to suit specific application needs.
  • Multiple Recorder Outputs: Offers flexible recorder output options, including current and voltage outputs.
  • Alarm Setpoints: Digitally adjustable alarm setpoints for both vibration and gap monitoring.
  • Relay Modules: Supports the installation of alarm relay modules for enhanced monitoring capabilities.
  • LCD Display: Features a non-multiplexing vertical bargraph type LCD for clear and accurate readings.
  • Environmental Durability: Designed to operate in a wide range of environmental conditions, ensuring reliability in harsh industrial settings.

Product Advantages

  • Enhanced Monitoring Capabilities: The dual vibration and gap monitoring features provide comprehensive insights into machine health, helping to prevent unexpected downtime.
  • Customizable Settings: User-programmable sensitivity and recorder outputs allow for tailored monitoring solutions.
  • Reliable Performance: Built to withstand harsh industrial environments, ensuring consistent and accurate monitoring.
  • Easy Integration: Compatible with various proximity probe/Proximitor® systems, making it easy to integrate into existing monitoring setups.
  • Comprehensive Alarm System: Digitally adjustable alarm setpoints and relay modules provide robust alerting mechanisms for potential issues.

Product Applications

The Bently Nevada 3300/16-01-02-01-00-00-00 XY/GAP Dual Vibration Monitor is ideal for a wide range of industrial applications, including:

  • Power Generation: Monitoring turbines, generators, and other critical equipment.
  • Oil and Gas: Ensuring the reliability of compressors, pumps, and other machinery.
  • Manufacturing: Monitoring the health of motors, fans, and other rotating equipment.
  • Chemical Processing: Ensuring the safe and efficient operation of mixers, agitators, and other equipment.
  • Mining: Monitoring the condition of crushers, conveyors, and other heavy machinery.

Latest News Headline

“Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor: Revolutionizing Industrial Asset Condition Monitoring with Enhanced Precision and Reliability”

Recommended Related Models

Model Description
3300/15 Dual Radial Vibration Monitor
3300/20 Dual Channel Vibration Monitor
3300/25 Dual Channel Vibration Monitor with Gap
3300/40 Quad Channel Vibration Monitor
3300/45 Quad Channel Vibration Monitor with Gap
3300/50 Eight Channel Vibration Monitor

Popular Bently Nevada Models

Model Description Key Parameters
3300/16 XY/GAP Dual Vibration Monitor Dual channel, gap monitoring, 83 mm vertical dimension, 1 kg weight
3300/20 Dual Channel Vibration Monitor Dual channel, 83 mm vertical dimension, 1 kg weight
3300/25 Dual Channel Vibration Monitor with Gap Dual channel, gap monitoring, 83 mm vertical dimension, 1 kg weight
3300/40 Quad Channel Vibration Monitor Quad channel, 83 mm vertical dimension, 1 kg weight
3300/45 Quad Channel Vibration Monitor with Gap Quad channel, gap monitoring, 83 mm vertical dimension, 1 kg weight
3300/50 Eight Channel Vibration Monitor Eight channel, 83 mm vertical dimension, 1 kg weight
FAQ

FAQ

Q1: What is the primary function of the Bently Nevada 3300/16-01-02-01-00-00-00 XY/GAP Dual Vibration Monitor?
A1: The primary function is to continuously measure and monitor two independent channels of radial vibration and average shaft position (gap) using inputs from two proximity probe/Proximitor® systems.

Q2: Can the sensitivity of the monitor be adjusted?
A2: Yes, the sensitivity is user-programmable, allowing customization to suit specific application needs.

Q3: What types of recorder outputs are available?
A3: The monitor offers multiple recorder output options, including +4 to +20 mA, 0 to -10 Vdc, and +1 to +5 Vdc.

Q4: How are alarm setpoints configured?
A4: Alarm setpoints are digitally adjustable from 0 to 100% of full-scale, providing precise control over alert thresholds.

Q5: What is the gap alarm time delay?
A5: The gap alarm time delay is 6 seconds, ensuring timely detection of shaft position issues.

Q6: Can relay modules be installed with this monitor?
A6: Yes, one alarm relay module can be installed behind each monitor to enhance monitoring capabilities.

Q7: What is the operating temperature range of the monitor?
A7: The monitor operates within a temperature range of 0°C to +65°C (+32°F to +150°F).

Q8: Is the monitor suitable for hazardous areas?
A8: Yes, the monitor has hazardous area approvals, including CSA/NRTL/C and ATEX certifications, making it suitable for use in hazardous environments.
