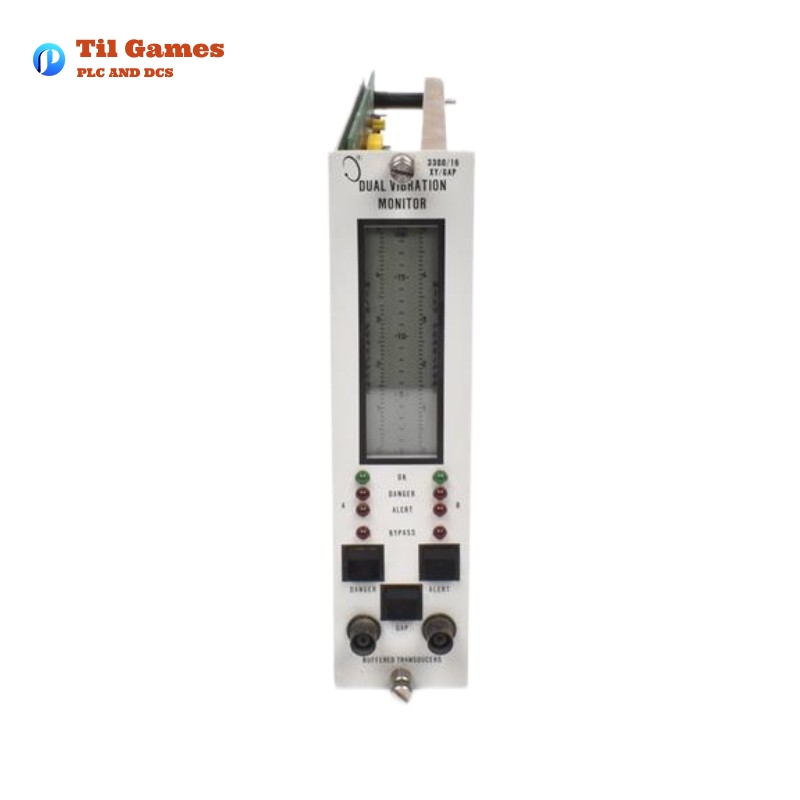

Bently Nevada 3300/16-01-02-00-00-00-00 XY/GAP Dual Vibration Monitor

Bently Nevada 3300/16-01-02-00-00-00-00 XY/GAP Dual Vibration Monitor

Manufacturer:Bently Nevada

Product Number:3300/16-01-02-00-00-00-00

Product Type:XY/GAP Dual Vibration Monitor

Origin:USA

Vertical Dimension:83 mm

Weight:1 kg

Views:20

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-00-00-00-00-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-00-00-00-00-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-00-00-00-00-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-16-01-02-00-00-00-00.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor is a high-performance vibration monitoring device used in industrial applications to continuously measure and monitor two independent channels of radial vibration and average shaft position (gap). This monitor is designed to replace the 3300/15 Dual Radial Vibration Monitor, which lacked radial position gap alarms.

The 3300/16 unit is ideal for rotating machinery and industrial equipment where vibration monitoring is crucial for predictive maintenance and machine protection. It accepts input signals from two proximity probes or Proximitor® systems, providing real-time monitoring and alarm functions to detect abnormal operating conditions.


Product Specifications

Parameter Specification
Part Number 141498-01
Input Type Two proximity probe signals
Input Impedance 10 kΩ
Sensitivity 100 mV/mil (4 V/mm) or 200 mV/mil (8 V/mm)
Power Consumption 2 Watts (nominal)
Accuracy (@ 25°C) ±0.33% typical, ±1% max (±2% with 2X Trip Multiply, ±3% with 3X Trip Multiply)
Frequency Response 4 to 4,000 Hz (240 to 240,000 cpm) or 1 to 600 Hz (60 to 36,000 cpm)
Recorder Outputs +4 to +20 mA, 0 to -10 VDC, or +1 to +5 VDC
Output Impedance 100 Ω
Alarm Setpoints Digitally adjustable from 0 to 100% of full scale
Relay Modules Epoxy-sealed, hermetically sealed, quad relay
Display Type Vertical bargraph LCD (63 segments per channel)
Operating Temperature 0°C to +65°C
Storage Temperature -40°C to +85°C
Humidity Up to 95% non-condensing
Compliance CE Mark, CSA/NRTL/C, ATEX Certified
Physical Size Vertical Dimension: 83 mm
Weight 1 kg (2.2 lbs.)

Key Features

  • Dual Channel Monitoring: Supports two independent channels for radial vibration and average shaft position.
  • High Sensitivity: Offers a selectable sensitivity of 100 mV/mil or 200 mV/mil.
  • Flexible Frequency Response: Configurable range from 4 to 4,000 Hz or 1 to 600 Hz.
  • Multiple Alarm Setpoints: Supports both Alert and Danger alarms with adjustable thresholds.
  • Buffered Transducer Outputs: Allows easy connection to diagnostic systems.
  • Multiple Recorder Outputs: Can output signals in +4 to +20 mA, 0 to -10 VDC, or +1 to +5 VDC.
  • Rugged Design: Operates in harsh environments with a wide temperature range.
  • ATEX and CSA/NRTL Certified: Suitable for hazardous industrial environments.

Product Advantages

  • Improved Reliability: Continuous real-time monitoring enhances machine protection.
  • Easy Integration: Compatible with existing Bently Nevada monitoring systems.
  • Field Programmable: Supports configurable options for different industrial applications.
  • High Accuracy: Provides precise measurements with minimal error.
  • Advanced Display: LCD with bar graph visualization for easy interpretation.
  • Multi-Relay Options: Supports multiple relay configurations for enhanced alarm control.
  • Compact Design: Small footprint with a vertical dimension of 83 mm for easy panel installation.

Product Applications

  • Rotating Machinery Monitoring: Used for turbines, compressors, motors, pumps, and fans.
  • Industrial Automation: Integrated into plant-wide monitoring systems for predictive maintenance.
  • Oil & Gas Industry: Ensures safe operation of critical rotating assets.
  • Power Generation: Provides real-time vibration data for generators and turbines.
  • Manufacturing Plants: Monitors production equipment to reduce unplanned downtime.
  • Aerospace & Defense: Supports mission-critical machinery with high precision monitoring.

Latest News on Bently Nevada 3300/16

  • “Enhancing Machinery Reliability: How the Bently Nevada 3300/16 Monitor Improves Predictive Maintenance”
  • “Bently Nevada 3300/16: Advanced Vibration Monitoring for Industrial Applications”
  • “Increasing Operational Efficiency with Bently Nevada’s XY/GAP Dual Vibration Monitor”
  • “Comparing Bently Nevada 3300/16 and 3300/15: Key Upgrades and Benefits”
  • “Best Practices for Vibration Monitoring with Bently Nevada 3300/16”
  • “Why Industries Trust Bently Nevada 3300/16 for Rotating Equipment Monitoring”

Related Models in the Same Series

Model Number Description
Bently Nevada 3300/15 Dual Radial Vibration Monitor (predecessor to 3300/16)
Bently Nevada 3300/20 Vibration Monitoring System with Extended Capabilities
Bently Nevada 3300/05 System Monitor for 3300 Series Racks
Bently Nevada 3300/03 Proximity Transducer System Interface Module
Bently Nevada 3300/50 Dual Channel Proximity Probe Interface
Bently Nevada 3300 XL Enhanced Performance Proximity Transducer System

Popular Bently Nevada Models

Model Number Description
Bently Nevada 3500/42M Proximitor/Seismic Monitor
Bently Nevada 3500/22M Transient Data Interface Module
Bently Nevada 3500/93 System Display for 3500 Series
Bently Nevada 3300 XL Advanced Proximity Transducer
Bently Nevada 3701/40 Machinery Monitoring System
Bently Nevada ADRE 408 Portable Vibration Data Acquisition System
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Bently Nevada 3300/16 XY/GAP Dual Vibration Monitor?

A1: The 3300/16 monitor is designed to measure and track radial vibration and shaft position (gap) in rotating machinery, ensuring early detection of potential faults.

Q2: What type of inputs does the 3300/16 monitor support?

A2: It accepts two proximity probe signals, including 3300 XL 8 mm, 7200 5 mm/8 mm, and other Proximitor® sensors.

Q3: How does the 3300/16 compare to the 3300/15 model?

A3: The 3300/16 includes additional radial position gap alarms, making it more advanced than the 3300/15.

Q4: What are the power consumption requirements?

A4: The monitor consumes 2 Watts nominal.

Q5: What are the available alarm options?

A5: The unit supports both Alert and Danger alarms, with customizable alarm thresholds.

Q6: Can the monitor be used in hazardous environments?

A6: Yes, the 3300/16 is ATEX and CSA/NRTL/C certified, making it suitable for hazardous locations.

Q7: What are the available recorder output options?

A7: The monitor provides outputs in +4 to +20 mA, 0 to -10 VDC, or +1 to +5 VDC.

Q8: What is the weight and size of the monitor?

A8: The vertical dimension is 83 mm, and the unit weighs 1 kg (2.2 lbs.).
