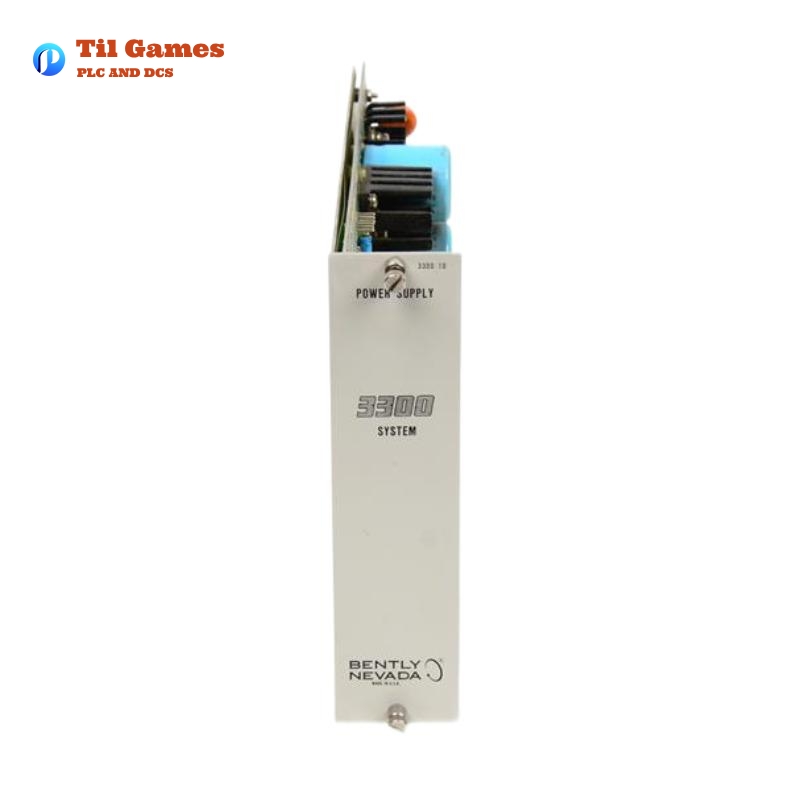

Bently Nevada 3300/10-01-02-00 Power Supply Module

Bently Nevada 3300/10-01-02-00 Power Supply Module

Manufacturer:Bently Nevada

Product Number:3300/10-01-02-00

Product Type:Power Supply Module

Origin:USA

Dimensions:57 x 203 x 330 mm

Weight:1 kg

Views:21

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/3300-10-01-02-00-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-10-01-02-00-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-10-01-02-00-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3300-10-01-02-00-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 3300/10-01-02-00 Power Supply Module is a high-reliability power supply designed to support Bently Nevada 3300 series machinery protection systems. It provides stable and regulated power for up to 12 monitoring modules and associated transducers in a 3300 system rack. This unit is built for industrial environments, ensuring reliable operation even under challenging conditions.

The 3300/10 Power Supply supports input voltages of 95-125 Vac or 190-250 Vac, which are user-selectable via a secure connection. It is installed in the leftmost rack position (position 1) and eliminates the need for a second power supply in the same rack due to its robust power capacity.

Product Specifications

Parameter Specification
Model Number 3300/10-01-02-00
Input Voltage 95-125 Vac or 190-250 Vac (Selectable)
Frequency 50-60 Hz
Power Consumption 1.0A max at 95-125 Vac, 0.5A max at 190-250 Vac
Primary Power Surge 26 A peak, 12A RMS for one cycle
Fuse Rating 1.5 A slow blow (95-125 Vac), 0.75 A slow blow (190-250 Vac)
Output Voltage -24 VDC ±0%, -2.5% or -18 VDC ±0%, -2% (User programmable)
Transducer Power Overload-protected per channel
OK Relay Type Single-pole, double-throw (SPDT)
OK Relay Contact Ratings 5A at 28 VDC, 5A at 120/220 VAC (Epoxy-Sealed); 3A at 220 VAC (Hermetically-Sealed)
Operating Temperature +0°C to +65°C (+32°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity Up to 95% (Non-condensing)
Mounting Position Leftmost rack slot (Position 1)
Dimensions 57 x 203 x 330 mm
Weight 1 kg (2 lbs)

Key Features

  1. High Reliability – Ensures stable power delivery for up to 12 monitoring modules and transducers.
  2. Flexible Input Voltage – Operates on 95-125 VAC or 190-250 VAC, selectable via a secure connector.
  3. Enhanced Safety Features – Integrated OK relay monitoring system detects power failures and transducer faults.
  4. Built-in Line Noise Filter – Provides electrical noise suppression for stable operation in industrial environments.
  5. Hazardous Area Compliance – Positive retention connectors improve reliability, making it suitable for hazardous applications.
  6. Easy Maintenance – Modules can be replaced using only a screwdriver, eliminating the need for soldering.
  7. Space-Efficient Design – Occupies only one rack slot in the Bently Nevada 3300 system.
  8. Durable Construction – Built for long-term operation in demanding industrial settings.

Product Advantages

  • Eliminates the need for a second power supply in a single rack, reducing installation complexity and cost.
  • User-selectable input voltage allows greater flexibility in different power environments.
  • Enhanced system protection with overload-protected transducer power and integrated line noise filtering.
  • Minimized downtime with plug-in instrument modules for easy replacement.
  • Long lifespan with robust construction and high-quality components.

Applications

The Bently Nevada 3300/10-01-02-00 Power Supply Module is widely used in:

  • Power Plants – Provides reliable power for turbine and generator monitoring systems.
  • Oil & Gas Industry – Supports vibration monitoring in compressors and pumps.
  • Manufacturing Plants – Ensures stable machine condition monitoring.
  • Aerospace & Defense – Used in critical rotating equipment monitoring applications.
  • Petrochemical Plants – Provides stable power for hazardous area monitoring systems.

Latest Industry News

  1. Bently Nevada Expands 3300 Series for Enhanced Machinery Protection
  2. New Advances in Power Supply Technology for Industrial Applications
  3. Bently Nevada 3300 Series: A Benchmark in Vibration Monitoring Solutions
  4. How Advanced Power Supply Systems Improve Industrial Reliability
  5. Bently Nevada 3300/10 Power Supply: Key to Long-Term Asset Protection
  6. Case Study: Power Plants Using Bently Nevada Systems for Reliability

Related Models (Same Series or Similar)

Model Description
3300/14 AC/DC Power Supply for Bently Nevada 3300 Racks
3300/25 Industrial Monitoring Power Module
3300/35 Redundant Power Supply for Critical Systems
3300/50 High-Voltage Power Supply for Large Systems
3300/55 Compact Power Supply for Small Installations
3300/65 Multi-Channel Power Supply for 3300 Series

Popular Bently Nevada Models

Model Description
3500/22M Enhanced TDI (Transient Data Interface) Module
330103-00-10-05-02-00 3300 XL 8mm Proximity Probe
330180-90-00 3300 XL Proximitor Sensor
3500/42M Vibration Monitor for Rotating Equipment
1900/65A Compact Machinery Protection Monitor
3500/92 Communication Gateway Module
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the input voltage range of the 3300/10-01-02-00 Power Supply?

A1: The power supply supports 95-125 VAC or 190-250 VAC, selectable via a secure connector.

Q2: How many monitoring modules can this power supply support?

A2: It can power up to 12 monitors and their associated transducers within a Bently Nevada 3300 system.

Q3: Does the power supply include noise filtering?

A3: Yes, it has a built-in line noise filter, which enhances reliability in noisy industrial environments.

Q4: Can this power supply be used in hazardous areas?

A4: Yes, it is designed with positive retention connectors, making it suitable for hazardous applications.

Q5: How is the primary power selected?

A5: The voltage selection is done by moving a connector and replacing an external fuse—no special tools required.

Q6: What is the weight of the power supply module?

A6: The module weighs approximately 1 kg (2 lbs).

Q7: Where is the module installed in the 3300 rack?

A7: It is always installed in the leftmost slot (Position 1) next to the system monitor.

Q8: What happens if the power supply fails?

A8: The integrated OK relay will trigger an alarm and notify the system of any power failure or transducer fault.
