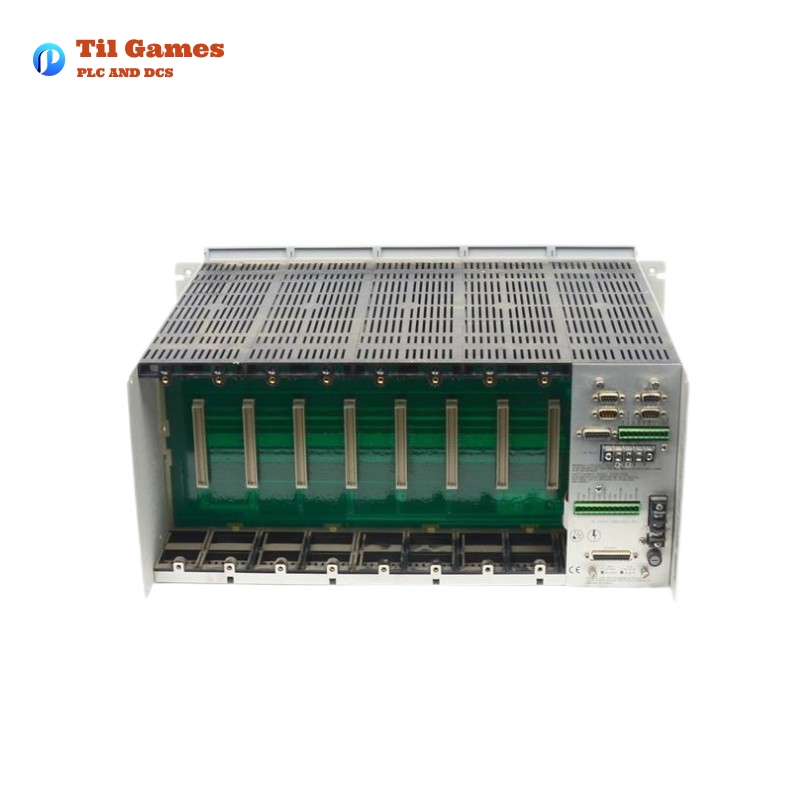

Product Introduction: Bently Nevada 3300/05-24-00-00 System Rack
The Bently Nevada 3300/05-24-00-00 System Rack is a robust and versatile mounting solution designed for the 3300 Monitoring System. This 10-position rack is engineered to accommodate a Power Supply, System Monitor, and various types of 3300 Monitors, making it an essential component for asset condition monitoring in industrial environments. The rack’s modular design eliminates the need for internal wiring, simplifying installation and expansion to meet growing monitoring requirements.
Product Specifications
| Parameter | Value |
|---|---|
| Rack Size | 10-position |
| Dimensions | 584.2 x 423.2 x 228.6 mm |
| Weight | 5.8 kg |
| Material | Injection molded plastic |
| Agency Approval | Not Required |
| Mounting Option | Standard |
| Temperature Range | -20°C to +60°C (for ATEX) |
| Certification | CSA/NRTL/C, ATEX (optional) |
Product Features
- Durable Construction: Made from injection-molded plastic with anti-static properties, ensuring longevity and protection against electrostatic discharge.
- Modular Design: Allows for easy expansion and reconfiguration without the need for internal wiring.
- Clear Identification: Features a bezel with engraved tags or clear plastic strips for easy identification of machine/monitor points.
- Flexible Mounting: Standard mounting options with provisions for weatherproof housing or 19-inch EIA rack mounting.
- Safety Compliance: Available with CSA/NRTL/C and ATEX certifications for hazardous area installations.
Product Advantages
- Ease of Access: The rack’s design ensures easy access to all components, simplifying maintenance and troubleshooting.
- Scalability: The modular nature of the rack allows for easy expansion, accommodating up to 14 positions.
- Versatility: Suitable for a wide range of industrial applications, including power generation, oil and gas, and manufacturing.
- Safety: Conductive anti-static material and optional hazardous area certifications enhance safety in critical environments.
Product Applications
The Bently Nevada 3300/05-24-00-00 System Rack is ideal for use in various industries, including:
- Power Generation: Monitoring critical machinery such as turbines and generators.
- Oil and Gas: Ensuring the reliability of compressors, pumps, and other rotating equipment.
- Manufacturing: Protecting production lines by monitoring motors, fans, and other machinery.
- Chemical Processing: Safeguarding equipment in hazardous environments.
Latest News Headline
“Bently Nevada Enhances Industrial Safety with New 3300/05 System Rack Options”
Recommended Related Models
| Model Number | Description | Dimensions (mm) | Weight | Agency Approval | Mounting Option |
|---|---|---|---|---|---|
| 3300/05-21-00-00 | 4-position rack | 279.4 x 423.2 x 228.6 | N/A | Not Required | Standard |
| 3300/05-22-00-00 | 6-position rack | 381.0 x 423.2 x 228.6 | N/A | Not Required | Standard |
| 3300/05-23-00-00 | 8-position rack | 482.6 x 423.2 x 228.6 | N/A | Not Required | Standard |
| 3300/05-25-00-00 | 12-position rack | 685.8 x 423.2 x 228.6 | N/A | Not Required | Standard |
| 3300/05-26-00-00 | 14-position rack | 787.4 x 423.2 x 228.6 | N/A | Not Required | Standard |
| 3300/05-27-00-00 | 8-position 19-inch EIA rack | 482.6 x 423.2 x 228.6 | N/A | Not Required | EIA Mounting |
Popular Bently Nevada Models
| Model Number | Description | Dimensions (mm) | Weight | Agency Approval | Mounting Option |
|---|---|---|---|---|---|
| 3300/20 | Proximity Transducer | 57.2 x 25.4 x 25.4 | 0.1 kg | CSA, ATEX | N/A |
| 3300/25 | Velocity Sensor | 66.0 x 38.1 x 38.1 | 0.2 kg | CSA, ATEX | N/A |
| 3300/40 | Accelerometer | 25.4 x 25.4 x 25.4 | 0.05 kg | CSA, ATEX | N/A |
| 3300/50 | Temperature Monitor | 144.8 x 144.8 x 57.2 | 0.5 kg | CSA, ATEX | Panel Mount |
| 3300/70 | Dual Channel Monitor | 144.8 x 144.8 x 57.2 | 0.6 kg | CSA, ATEX | Panel Mount |
| 3300/90 | Keyphasor Module | 57.2 x 25.4 x 25.4 | 0.1 kg | CSA, ATEX | N/A |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of monitors the 3300/05-24-00-00 rack can hold?
A1: The 3300/05-24-00-00 rack can hold up to 10 monitors, including the Power Supply and System Monitor.
Q2: Is the rack suitable for hazardous environments?
A2: Yes, the rack can be ordered with CSA/NRTL/C and ATEX certifications for use in hazardous areas.
Q3: Can the rack be expanded after initial installation?
A3: Yes, the modular design allows for easy expansion to accommodate additional monitors.
Q4: What are the dimensions of the 3300/05-24-00-00 rack?
A4: The dimensions are 584.2 x 423.2 x 228.6 mm.
Q5: Does the rack require internal wiring?
A5: No, the modular design eliminates the need for internal wiring.
Q6: What mounting options are available for the rack?
A6: The rack offers standard mounting and options for weatherproof housing or 19-inch EIA rack mounting.
Q7: Can the rack be used in high-temperature environments?
A7: The rack is rated for temperatures up to 65°C with CSA/NRTL/C certification and up to 60°C with ATEX certification.
Q8: Are there any accessories available for the rack?
A8: Yes, accessories such as blank kits (part number 101703-01) are available for the rack.
