Product Introduction:

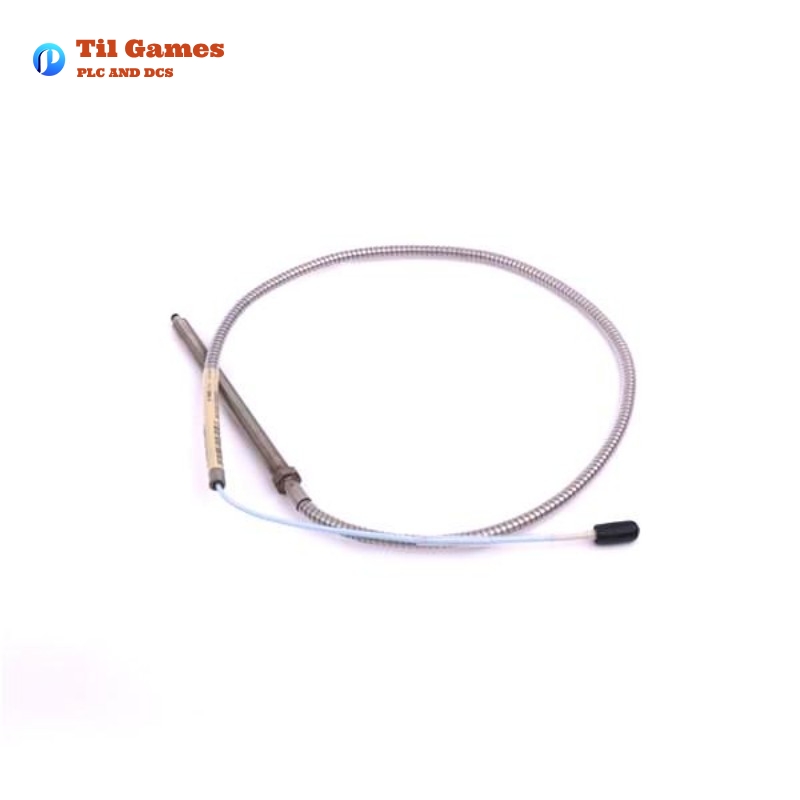

The Bently Nevada 109548-01 P1407030-00100 Proximity Probe is a high-performance sensor designed for non-contact measurement of displacement and vibration of rotating machinery, such as turbines, motors, and generators. Proximity probes are essential for monitoring critical components in industrial equipment to ensure optimal performance and avoid costly failures. This model is typically integrated into condition monitoring systems to measure shaft position or vibration, enabling predictive maintenance strategies.
Product Specifications:
| Parameter | Specification |
|---|---|
| Model Number | 109548-01 P1407030-00100 |
| Type | Proximity Probe |
| Measurement Range | 0 to 1 inch (25.4 mm) |
| Output Signal | 4-20 mA or 0-10 V depending on configuration |
| Mounting Style | Axial or Radial Mounting |
| Operating Temperature | -40°C to +120°C |
| Dimensions | 102 × 41 mm |
| Weight | 0.48 kg |
| Cable Length | 1 to 5 meters |
| Material | Stainless Steel, Tungsten Carbide |
| Connection Type | 4-wire (for 4-20 mA) |
| Sensitivity | High Sensitivity |
Product Applications:
The Bently Nevada 109548-01 P1407030-00100 Proximity Probe is used in various industrial applications, including but not limited to:
- Condition Monitoring: Measuring the displacement of rotating machinery components, helping to detect misalignment, shaft vibration, and other mechanical issues.
- Turbines and Generators: Used in power generation plants to monitor turbine and generator shaft displacement and vibration.
- Motors and Compressors: Applied in electric motors, compressors, and other rotating machinery to monitor critical parameters.
- Oil & Gas Industry: Employed in drilling rigs and offshore platforms for machinery health monitoring.
- Pumps: Helps in assessing the condition of pumps by tracking vibration levels, preventing catastrophic failures.
Product Advantages:
- Durability: The high-quality stainless steel construction ensures that the proximity probe can withstand harsh industrial environments, including high temperatures and vibrations.
- Accuracy: Offers precise displacement measurement, which is crucial for accurate diagnostics and maintenance planning.
- Flexibility: Available in different cable lengths and configurations, the probe can be adapted to various machinery and application requirements.
- Non-Contact Measurement: Prevents physical wear and tear by operating without direct contact, extending the lifespan of both the sensor and the machine.
- Cost-Effective: By enabling predictive maintenance, the probe helps reduce unexpected failures and associated downtime, resulting in cost savings.
Latest Product News Titles:
- “Bently Nevada Expands Proximity Probe Offerings for Industrial Applications”
- “Bently Nevada’s 109548-01 Proximity Probe Revolutionizes Machine Health Monitoring”
- “Bently Nevada Announces Advanced Condition Monitoring Solutions for Turbines Using New Proximity Probes”
- “Bently Nevada’s New Proximity Probes Improve Vibration Analysis Accuracy”
Related Products (Same Series / Similar Models)
| Model | Description | Key Features | Weight | Dimensions |
|---|---|---|---|---|
| 109548-02 | Proximity Probe with extended range | Longer range measurement | 0.50 kg | 110 × 45 mm |
| 109548-03 | Proximity Probe with higher accuracy | Enhanced sensitivity for precision | 0.52 kg | 105 × 43 mm |
| P1407030-00200 | Extended cable length model | 10-meter cable for remote monitoring | 0.55 kg | 108 × 42 mm |
| P1407030-00300 | High-temperature variant | Operates at extreme temperatures | 0.60 kg | 105 × 40 mm |
| 109548-04 | Short-range proximity probe | Ideal for small machinery applications | 0.45 kg | 98 × 39 mm |
| 109548-05 | Differential Proximity Probe | Measures relative shaft displacement | 0.47 kg | 103 × 41 mm |
| 109548-06 | Inline mountable version | Direct mounting on machinery | 0.50 kg | 104 × 40 mm |
| P1407030-00400 | High-resistance probe | Designed for heavy-duty industrial use | 0.53 kg | 107 × 44 mm |
| P1407030-00500 | High-sensitivity probe | Increased sensitivity for precision applications | 0.56 kg | 110 × 43 mm |
| 109548-07 | Compact model for limited space | Smaller footprint for space-constrained applications | 0.43 kg | 96 × 38 mm |
Popular Bently Nevada Models
| Model | Description | Key Features | Weight | Dimensions |
|---|---|---|---|---|
| 330500-90-05 | Vibration Sensor | Advanced vibration monitoring | 1.2 kg | 150 × 60 mm |
| 3500/22M | Vibration Monitor | Real-time vibration monitoring | 1.3 kg | 180 × 70 mm |
| R1004137 | Proximity Probe | Precision proximity measurement | 0.5 kg | 110 × 45 mm |
| 3500/42 | Pressure Transducer | Monitors pressure in industrial systems | 1.1 kg | 140 × 65 mm |
| 330780-51-00 | Temperature Sensor | Measures temperature in industrial environments | 0.8 kg | 130 × 55 mm |
| 330730-00-00 | Proximity Switch | Used for proximity detection | 0.7 kg | 120 × 50 mm |
| 3500/33 | Speed Monitor | Monitors rotating equipment speed | 1.5 kg | 160 × 75 mm |
| 330300-00-00 | Displacement Transducer | Measures displacement in machinery | 1.0 kg | 150 × 65 mm |
| 330400-00-00 | Dynamic Pressure Sensor | Dynamic pressure monitoring for turbines | 1.4 kg | 145 × 60 mm |
| 3500/72 | Process Variable Monitoring | Monitors industrial process variables | 1.6 kg | 155 × 70 mm |
FAQ
FAQ
Q1: What is the maximum operating temperature for the Bently Nevada 109548-01 P1407030-00100 Proximity Probe?
A1: The maximum operating temperature is 120°C.
Q2: How do I install the Bently Nevada proximity probe?
A2: The probe can be mounted axially or radially on the machinery, ensuring that the sensor is aligned with the shaft for accurate displacement measurements.
Q3: Can the Bently Nevada 109548-01 Proximity Probe be used in harsh environments?
A3: Yes, it is built to withstand tough industrial conditions, including high vibration and temperature variations.
Q4: What is the output signal of this proximity probe?
A4: The probe outputs either 4-20 mA or 0-10 V, depending on the configuration chosen.
Q5: How does the proximity probe help in predictive maintenance?
A5: By continuously measuring the displacement and vibration of rotating machinery, the probe helps detect early signs of failure, enabling proactive maintenance.
Q6: Is this probe compatible with other Bently Nevada monitoring equipment?
A6: Yes, the Bently Nevada 109548-01 Proximity Probe is designed to integrate seamlessly with other condition monitoring systems from Bently Nevada.
Q7: What is the significance of the non-contact measurement feature?
A7: Non-contact measurement ensures that there is no physical wear on the probe or the monitored components, extending their lifespan and maintaining measurement accuracy.
Q8: What materials are used in the construction of the probe?
A8: The probe is constructed from high-quality stainless steel and tungsten carbide to ensure durability and resistance to wear.
Q9: How can I calibrate the Bently Nevada proximity probe?
A9: Calibration is typically done through the monitoring system it’s connected to, and specific calibration procedures should be followed as per the equipment’s manual.
Q10: What is the recommended cable length for the probe?
A10: The probe is typically available with cable lengths ranging from 1 to 5 meters, depending on the installation requirements.
