Technical Specifications
| Parameter | Value |
|---|---|

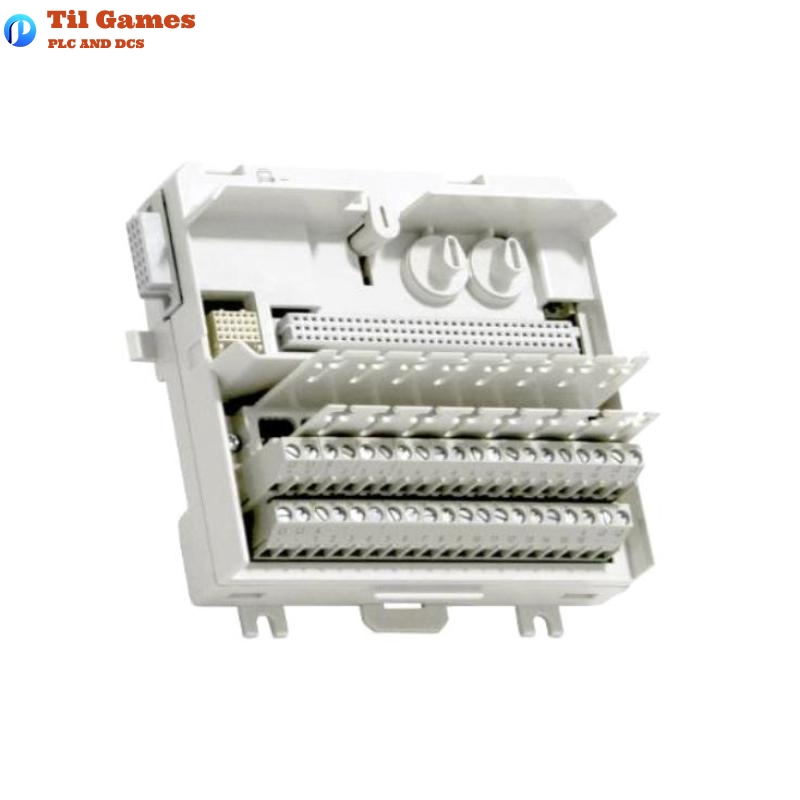

| Article Number | 3BSE040364R1 |
| Type | Extended |
| Channels | 8 |
| Voltage | 50 V |
| Maximum Current (I/O Channel) | 2 A |
| Maximum Current (Process Connection) | 5 A |
| Acceptable Wire Sizes | Solid: 0.2 – 4 mm² Stranded: 0.2 – 2.5 mm² (24 – 12 AWG) |
| Recommended Torque | 0.5 – 0.6 Nm |
| Stripping Length | 7 mm |
| Dielectric Test Voltage | 500 V a.c. |
| Dimensions | Width: 126 mm Depth: 64 mm Height: 110 mm |
| Weight | 0.28 kg |
| Mounting | Both directions |
| Environmental Certifications | CE mark, UL, ATEX, cULus |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5 to 95 %, non-condensing |
| Protection Class | IP20 |
| Mechanical Operating Conditions | IEC/EN 61131-2 |
FAQ
FAQ
Q1: What is the maximum current for the I/O channels of the TU834 MTU?
A1: The maximum current per I/O channel is 2 A.
Q2: Can the TU834 MTU be mounted in both directions?
A2: Yes, the TU834 MTU can be mounted in both directions.
Q3: What is the recommended torque for wiring the TU834?
A3: The recommended torque is between 0.5 and 0.6 Nm.
Q4: What are the acceptable wire sizes for the TU834 MTU?
A4: For solid wires, the acceptable size is 0.2 – 4 mm², and for stranded wires, it is 0.2 – 2.5 mm² or 24 – 12 AWG.
Q5: What is the dielectric test voltage for the TU834?
A5: The dielectric test voltage is 500 V a.c.
Q6: What is the operating temperature range for the TU834 MTU?
A6: The operating temperature range is from 0 to +55 °C.
Q7: Does the TU834 MTU have environmental certifications?
A7: Yes, it has CE mark certification, along with UL, ATEX, and cULus certifications.
Q8: What is the weight of the TU834 MTU?
A8: The weight of the TU834 MTU is 0.28 kg.
