Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3BSE038726R1 |
| Channels | 16 |
| Voltage | 50 V |
| Maximum Current per Channel | 2 A |
| Maximum Current for Process Connection | 5 A |
| Acceptable Wire Sizes | Solid: 0.2 – 2.5 mm², 24 – 12 AWG Stranded: 0.2 – 2.5 mm², 24 – 12 AWG |
| Stripping Length | 6 mm |
| Dielectric Test Voltage | 500 V a.c. |
| Dimensions (W x D x H) | 126 x 64 x 105 mm |
| Weight | 0.28 kg |
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F) |
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
| Relative Humidity | 5 to 95 %, non-condensing |
| Protection Class | IP20 |
| Certification | CE mark, UL 61010-1, EN 61010-2-201, ATEX Zone 2, DNV-GL, BV, LR |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| RoHS Compliance | EN 50581:2012 |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
FAQ
FAQs

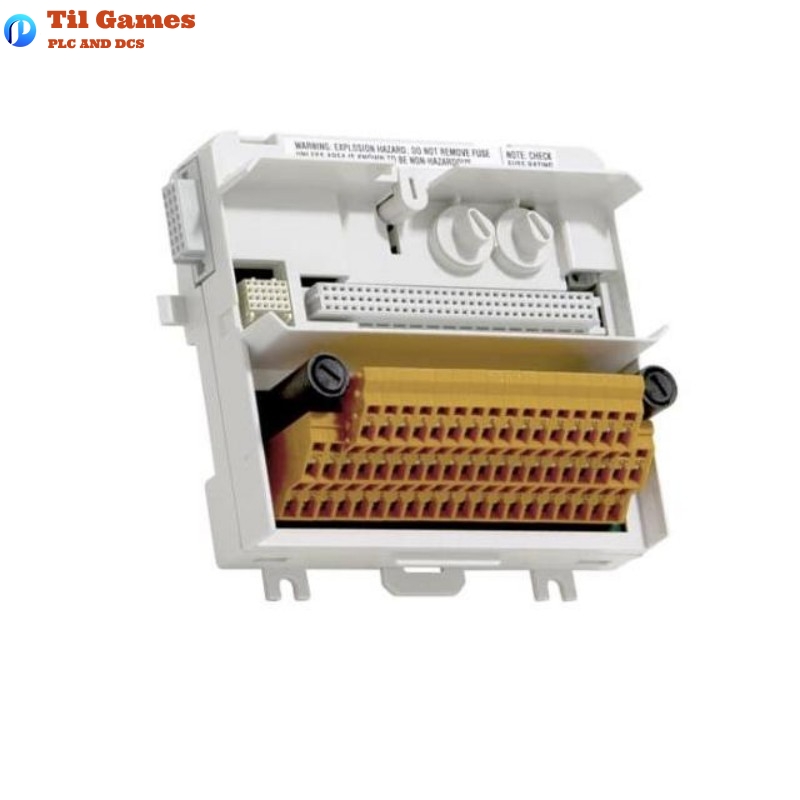

Q1: What devices is the ABB TU833 S800 I/O Extended Module Termination Unit compatible with?
A1: This module is compatible with several ABB I/O modules, such as AI810, DI810, DO810, etc.
Q2: How many I/O channels can the ABB TU833 MTU support?
A2: The module supports up to 16 I/O channels.
Q3: What is the maximum voltage and current for the ABB TU833 MTU?
A3: The maximum voltage is 50V, and the maximum current per I/O channel is 2A.
Q4: What is the operating temperature range of the ABB TU833 MTU?
A4: The operating temperature range is 0°C to +55°C.
Q5: What types of cable connections does the ABB TU833 MTU support?
A5: This module supports solid and stranded cables from 0.2 to 2.5 mm², with a range of 24-12 AWG.
Q6: How is the ABB TU833 MTU mounted?
A6: The module can be mounted on a standard DIN rail and features a mechanical latch to secure the module.
Q7: What is the storage temperature range for the ABB TU833 MTU?
A7: The storage temperature range is -40°C to +70°C.
Q8: What safety and certification standards does the ABB TU833 MTU meet?
A8: The module complies with CE certification, electrical safety standards (EN 61010-1), ATEX Zone 2, and other certifications.
