Technical Specifications
| Item | Value |
|---|---|
| Process Connections | Two D-sub 25 pin connectors (male) |
| Rated Maximum Continuous Current per I/O Channel | 2.5 A |
| ModuleBus Maximum Current Distribution (5V and 24V) | 1.5 A |
| Mechanical Keys | 2, 36 different configurations |
| I/O Module Lock | Locks module and enables operation |
| Equipment Class | Class II according to IEC 61140 (earth protected) |
| Protection Rating | IP20 according to IEC 60529 |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V a.c. |
| Width | 64 mm (including connector) |
| Depth | 64 mm (including terminals) |
| Height | 170 mm (including latch) |
| Weight | 0.17 kg |
FAQ
FAQ

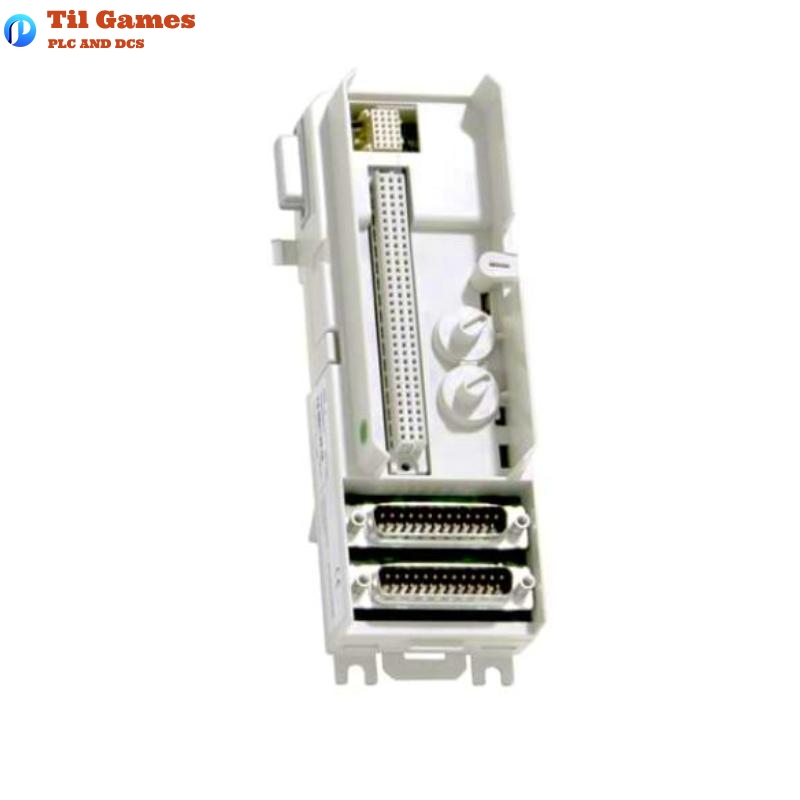

Q1: What are the main functions of the TU819?
A1: The TU819 is a 50-volt compact module termination unit with up to 32 I/O signals, designed for use with the S800 I/O system. It is a passive unit for connecting field wiring to I/O modules and includes a portion of the ModuleBus.
Q2: How many I/O signals does the TU819 support?
A2: The TU819 supports up to 32 I/O signals.
Q3: What is the rated maximum current for the TU819?
A3: The rated maximum continuous current per I/O channel for the TU819 is 2.5 A.
Q4: What is the protection rating of the TU819?
A4: The TU819 has a protection rating of IP20 (according to IEC 60529), providing protection against solid objects larger than 12mm and minor water droplets.
Q5: How is the TU819 mounted?
A5: The TU819 can be mounted on a standard DIN rail, and it is secured with a mechanical latch to ensure stability.
Q6: How can the termination board in the TU819 be replaced?
A6: The top part of the TU819 can be removed to replace the termination board, even with the system operational. This is typically required if the terminal screw is damaged.
Q7: Which I/O modules are compatible with the TU819?
A7: The TU819 is designed to be used with DI818 and DO818 I/O modules for 50V applications.
Q8: Does the TU819 support hot swapping?
A8: The TU819 supports module locking and unlocking, but it does not support hot swapping. The module must be locked in place to operate properly.
