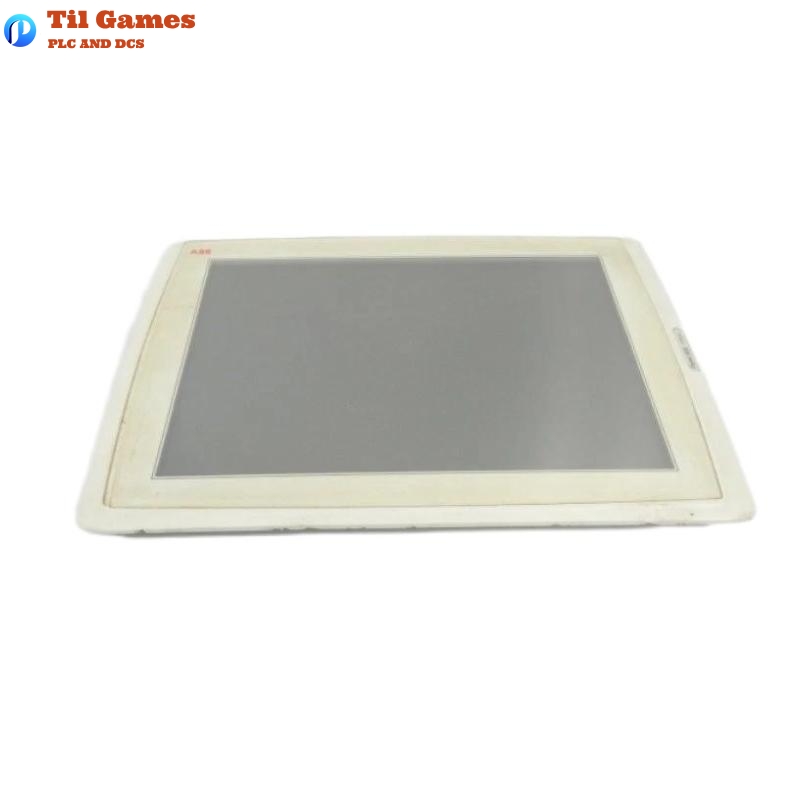

ABB PP865A 3BSE042236R2 Panel 800 15″ Touch Panel
– Product Overview
The ABB PP865A 3BSE042236R2 is a high-performance industrial HMI (Human-Machine Interface) designed to enhance operator efficiency and reliability in demanding process environments. As part of the Panel 800 series, it supports seamless integration with a broad range of automation systems and is optimized for object-oriented configuration via Panel Builder 800 software.
The PP865A features a 15″ high-resolution TFT-LCD touchscreen with robust mechanical design, extended communication options, and rugged environmental resistance, making it suitable for heavy-duty industrial operations.
– Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | PP865A 3BSE042236R2 |
| Series | Panel 800 |
| Display Type | TFT-LCD, 1024 x 768 pixels, 64K color |
| Display Size | 15.0 inch |
| Active Display Area (W x H) | 304.1 x 228.1 mm |
| Touchscreen Material | Polyester on glass (1 million touches) |
| Overlay | Autotex F157/F207 |
| Dimensions (W x H x D) | 398 x 304 x 6 mm |
| Mounting Depth | 60 mm (160 mm including clearance) |
| Weight | 3.7 kg |
| Housing Material | Powder-coated aluminum (front and rear) |
| Front Panel Protection | IP66 |
| Rear Panel Protection | IP20 |
| Operating Voltage | +24V DC (20-30V) |
| Power Consumption | Normal: 1.2 A, Max: 1.7 A |
| Flash Memory for Application | 12 MB |
| Real Time Clock Accuracy | ±20 ppm (max error: 1 min/month @ 25°C) |
| Battery Type | CR2450 (Sanyo or Panasonic), min. 3 years |
| USB Ports | Host (Type A), Device (Type B), USB 1.1 |
| Ethernet Port | Shielded RJ45 (10/100 Mbps) |
| Serial Ports | RS232 (9-pin), RS422/RS485 (25-pin) |
| CF Card Slot | Compact Flash, Type I & II supported |
| Operating Temp (Vertical Mount) | 0 °C to +50 °C |
| Operating Temp (Horizontal Mount) | 0 °C to +40 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% – 85% (non-condensed) |
| Certifications | CE, UL508, UL 1604 Class I Div 2, DNV, NEMA 4X |
– Product Features
-
High-resolution 15″ touch display with robust tactile responsiveness.
-
Seamless object-oriented configuration using Panel Builder 800 software.
-
Industrial-grade communication interfaces: Ethernet, RS232, RS422/RS485.
-
Supports CompactFlash and USB for data handling and project loading.
-
Built-in real-time clock with battery backup for time-sensitive applications.
-
Front panel rated IP66 for harsh industrial environments.
-
Compliant with global standards including UL, CE, DNV, and NEMA.
-
Galvanic isolation and enhanced EMC protection features.
-
Long-lasting CCFL backlight with >35,000 hours at 25°C.
– Product Advantages
-
Durability: Robust construction with powder-coated aluminum for harsh environments.
-
Flexibility: Supports multiple communication protocols and device types.
-
Ease of Use: User-friendly Panel Builder 800 software for quick project setup.
-
Resilience: High chemical and environmental resistance.
-
Maintenance: Battery and memory card accessible for replacement and upgrade.
-
Safety: Galvanic isolation and explosion hazard protection in Class I, Div 2 areas.
-
Integration: Compatible with multiple PLC and DCS systems from ABB and other vendors.
– Applications
-
Process control environments in chemical, oil & gas, and power industries
-
Manufacturing lines requiring operator interfaces with alarms and trends
-
Machine control stations with need for visualization and command
-
Remote terminal interfaces in SCADA and DCS networks
-
Maritime control panels with DNV certification compliance
– Recent Industry Report Titles Featuring PP865A
-
“Enhanced HMI Interfaces in Distributed Control Systems: ABB Panel 800 Series in Focus”
-
“Digital Transformation in Industrial Control Panels – ABB’s PP865A as a Benchmark”
-
“Operator Efficiency and Ergonomics: Comparative Study of ABB Panel 800 vs Competing HMIs”
-
“ABB Expands Touch Panel Offering with Ruggedized PP865A for Harsh Environments”
– Related Models in the Same Series
| Model | Description | Display Size | Dimensions (mm) | Weight |
|---|---|---|---|---|
| PP835A 3BSE042234R2 | Panel 800 6.5″ Touch Panel | 6.5″ | 215 x 161 x 6 | 1.4 kg |
| PP845A 3BSE042235R2 | Panel 800 10.4″ Touch Panel | 10.4″ | 302 x 228 x 6 | 2.7 kg |
| PP875A 3BSE042237R2 | Panel 800 19″ Touch Panel | 19.0″ | 474 x 368 x 6 | 5.2 kg |
| PP880A 3BSE042238R2 | Panel 800 21″ Touch Panel | 21.0″ | 528 x 423 x 6 | 6.0 kg |
| PP820A 3BSE042233R2 | Panel 800 4.3″ Touch Panel | 4.3″ | 150 x 115 x 6 | 0.9 kg |
| PP810A 3BSE042232R2 | Panel 800 3.5″ Touch Panel | 3.5″ | 120 x 95 x 6 | 0.8 kg |
– Popular ABB Models Recommended
| Model Number | Product Type | Key Features | Dimensions (mm) | Weight |
|---|---|---|---|---|
| PM864AK01 3BSE018161R1 | AC 800M CPU Module | High-speed CPU, redundant comms | 150 x 120 x 50 | 0.9 kg |
| CI854AK01 3BSE030220R1 | PROFIBUS DP Module | PROFIBUS-DP interface for AC 800M | 115 x 110 x 30 | 0.5 kg |
| AI810 3BSE008516R1 | Analog Input Module | 8 ch, 0-20 mA/4-20 mA | 150 x 100 x 50 | 0.4 kg |
| AO810 3BSE008522R1 | Analog Output Module | 8 ch, 0-20 mA/4-20 mA | 150 x 100 x 50 | 0.4 kg |
| DO810 3BSE008510R1 | Digital Output Module | 16 ch, 24V DC sourcing | 150 x 100 x 50 | 0.4 kg |
| DI810 3BSE008508R1 | Digital Input Module | 16 ch, 24V DC | 150 x 100 x 50 | 0.4 kg |
FAQ
– Frequently Asked Questions (FAQ)
Q1: What is the display resolution of the PP865A?
A1: It features a 1024 x 768 pixel TFT-LCD with 64K color support.
Q2: Is the PP865A suitable for hazardous areas?
A2: Yes, it is certified for Class I, Division 2 hazardous locations.
Q3: Can the PP865A be used outdoors?
A3: It is not designed for continuous outdoor use; exposure to direct sunlight should be avoided.
Q4: What communication interfaces are available?
A4: It includes RS232, RS422/RS485, Ethernet, and USB interfaces.
Q5: What software is used for configuration?
A5: Panel Builder 800 is used to configure and deploy projects.
Q6: Is there a real-time clock feature?
A6: Yes, it includes a real-time clock with ±20 ppm accuracy and a replaceable battery.
Q7: What is the expected backlight life?
A7: The CCFL backlight has a lifespan of over 35,000 hours at 25°C.
Q8: Can it be used in marine applications?
A8: Yes, it has DNV approval making it suitable for maritime environments.
