Product Overview

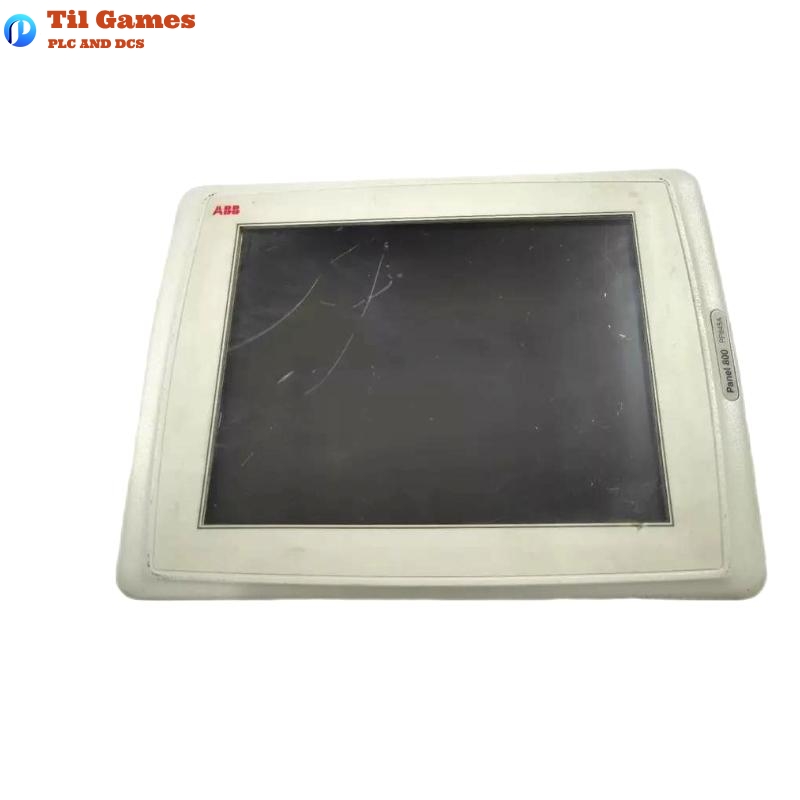

The ABB PP845A 3BSE042235R2 is a 10.4″ TFT-LCD touch screen operator panel, part of the Panel 800 series. It is designed for human-machine interface (HMI) applications, delivering superior visualization, monitoring, and control performance across industrial environments. Engineered for flexibility, it is compatible with various PLCs and automation systems, and configured using Panel Builder 800.
The panel supports multiple communication interfaces including Ethernet, RS-232, RS-422/RS-485, and USB, providing wide connectivity options. Its rugged construction with an IP66-rated front ensures reliability in harsh environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | PP845A |
| ABB Article Number | 3BSE042235R2 |
| Display Type | TFT-LCD |
| Display Size | 10.4 inches |
| Resolution | 800 x 600 pixels |
| Color | 64K colors |
| Touchscreen Type | Polyester on glass (resistive), 1 million operations |
| Flash Memory for Applications | 12 MB (including fonts) |
| Internal Memory Support | CompactFlash Type I/II, USB Host/Device |
| Communication Ports | RS232, RS422/485, Ethernet (RJ45), USB Host/Device |
| Mounting Depth | 58 mm (158 mm including clearance) |
| Panel Dimensions (W x H x D) | 302 x 228 x 6 mm |
| Display Area (W x H) | 211.2 x 158.4 mm |
| Weight | 2.1 kg |
| Power Supply | 24 V DC (20–30 V), 0.5–1.0 A |
| Operating Temperature | 0 to +50°C (vertical), 0 to +40°C (horizontal) |
| Storage Temperature | –20 to +70°C |
| Relative Humidity | 5–85%, non-condensing |
| Front Protection Class | IP66 |
| Rear Protection Class | IP20 |
| Approvals | CE, UL, cUL, DNV, NEMA 4x (indoor) |
| Real-Time Clock | ±20 PPM, max 1 min/month error |
| RTC Battery | CR2450, min. 3 years life |
Features
-
High-resolution 10.4″ touchscreen for enhanced operator interaction.
-
Integrated real-time clock with battery backup.
-
IP66 front protection ensures reliability in harsh and dusty industrial settings.
-
Wide range of communication ports: RS-232, RS-422/485, Ethernet, USB.
-
CompactFlash and USB support for data storage and application updates.
-
Panel Builder 800 configuration software for intuitive project development.
Advantages
-
Robust Design: Powder-coated aluminum housing with strong environmental protection.
-
Multi-protocol Communication: Compatibility with diverse automation systems and field devices.
-
Ease of Configuration: Panel Builder 800 streamlines setup, project transfer, and updates.
-
Flexible Mounting: Slim design with minimal depth simplifies panel integration.
-
Longevity: High MTBF components and a long-life CCFL backlight ensure sustained operation.
-
Advanced Diagnostics: DIP switch settings allow for service menus, image loading, and system restore.
Applications
-
Industrial automation and control systems.
-
Human-machine interface (HMI) in manufacturing facilities.
-
Power plants and substations.
-
Water and wastewater treatment plants.
-
Food and beverage production lines.
-
Pharmaceutical and chemical process automation.
Related Panel 800 Series or Compatible Models
| Model | Description | Display Size | Resolution | Communication Ports |
|---|---|---|---|---|
| PP820A | Panel 800, 3BSE042231R1 | 3.5″ | 320 x 240 | RS232, USB, Ethernet |
| PP826A | Panel 800, 3BSE042232R1 | 5.7″ | 320 x 240 | RS232, USB, Ethernet |
| PP835A | Panel 800, 3BSE042234R2 | 6.5″ | 640 x 480 | RS232, RS485, USB, Ethernet |
| PP865A | Panel 800, 3BSE042237R1 | 15″ | 1024 x 768 | RS232, RS485, USB, Ethernet |
| PP877A | Panel 800, 3BSE092923R1 | 15.4″ Wide | 1280 x 800 | RS232, RS485, USB, Ethernet |
| PP881A | Panel 800, 3BSE092924R1 | 19″ | 1280 x 1024 | RS232, RS485, USB, Ethernet |
Popular ABB Models
| Model | Description | Application Domain |
|---|---|---|
| PM864AK01 | Controller Unit for System 800xA | Process Automation Systems |
| AI835A | Analog Input Module, S800 I/O | Distributed Control Systems |
| CI854AK01 | Communication Interface, PROFIBUS DP | Fieldbus Connectivity |
| AC800M PM865 | High-performance CPU Module | Industrial Process Control |
| SD822 | I/O Power Supply Module | Control Cabinets |
| PP865A | Panel 800 HMI, 15″ Display | Large-Scale Machine Interfaces |
FAQ
FAQ (Q&A Format)
Q1: What type of touch technology does the PP845A use?
A1: It uses a resistive touch screen made of polyester on glass, rated for up to 1 million operations.
Q2: Can I install the PP845A in a high-humidity environment?
A2: Yes, it supports relative humidity of 5–85% non-condensed, making it suitable for humid environments with appropriate panel sealing.
Q3: What installation depth is required for the PP845A?
A3: The panel requires a mounting depth of 58 mm, but 158 mm total clearance is recommended.
Q4: Is the front of the panel suitable for harsh industrial use?
A4: Yes, the front panel meets IP66 standards, ensuring protection against dust and high-pressure water jets.
Q5: What power supply should be used?
A5: A 24 V DC (20–30 V range) class II power supply is required for both CE and UL compliance.
Q6: How do I transfer projects to the PP845A?
A6: Project files are transferred using USB or Ethernet via the Panel Builder 800 software.
Q7: Can the internal real-time clock battery be replaced?
A7: Yes, it uses a CR2450 battery (UL certified Sanyo or Panasonic), and it must be replaced only in non-hazardous areas.
Q8: Is the panel resistant to common chemicals?
A8: The powder-coated aluminum casing and Autotex F157 overlay withstand exposure to many industrial chemicals. Refer to chemical resistance documentation for specifics.
