– Product Description

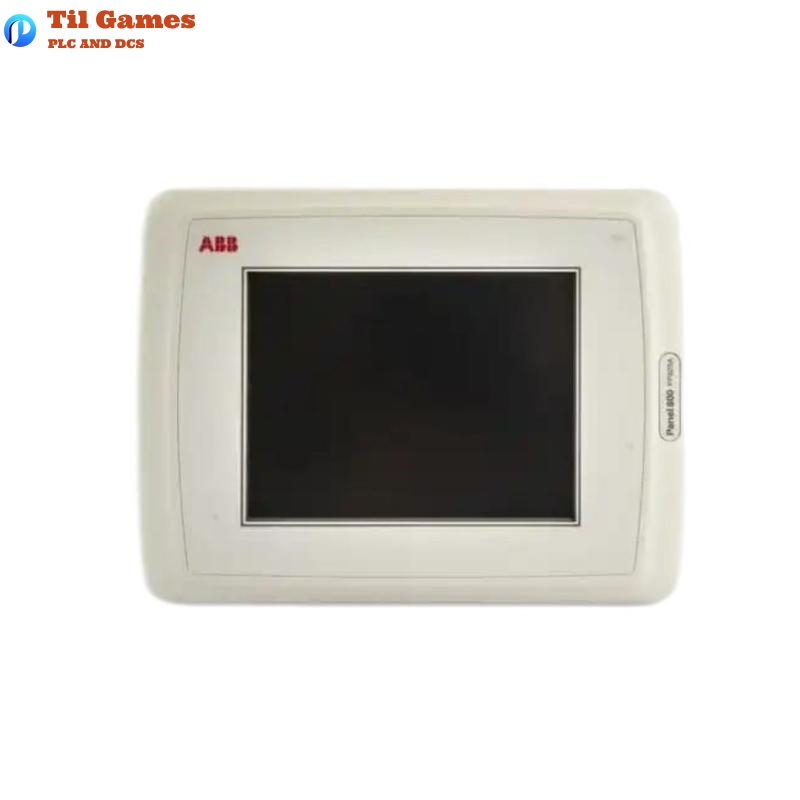

The ABB PP825A 3BSE042240R3 is a member of the Panel 800 family—a series of operator interface panels designed for intuitive, reliable, and efficient human-machine interaction. It features a 5.7-inch TFT LCD color touchscreen and supports a wide range of industrial communication standards. Engineered for use in harsh environments, the PP825A allows for real-time data interaction with controllers such as PLCs, servos, and drives.
It is built for object-oriented configuration using ABB’s Panel Builder 800 software, facilitating easy deployment and project transfer. This panel supports various protocols and integrates smoothly into automation environments with minimal setup.
– Product Specifications
| Parameter | Details |
|---|---|
| Model | PP825A |
| Part Number | 3BSE042240R3 |
| Display Type | 5.7″ TFT-LCD, 320 x 240 pixels, 64K colors |
| Touchscreen Material | Polyester on glass (resistive touch) |
| Overlay | Autotex F157/F207 |
| Backlight | LED, >25,000 h lifetime @ +25 °C |
| Flash Memory for Application | 12 MB |
| Real-Time Clock Battery | CR2450 (Sanyo/Panasonic), lifetime ≥ 3 years |
| Communication Ports | RS232, RS422/RS485, USB, Ethernet (RJ45) |
| Input Voltage | +24 V DC (range: 20–30 V DC) |
| Power Consumption | Normal: 0.2 A, Max: 0.4 A |
| Mounting Depth | 57 mm |
| Overall Dimensions (W x H x D) | 202 x 152 x 6 mm |
| Weight | 0.9 kg |
| Environmental Protection (Front) | IP66 |
| Environmental Protection (Rear) | IP20 |
| Operating Temp. (Vertical Mount) | 0 to +50 °C |
| Operating Temp. (Horizontal Mount) | 0 to +40 °C |
| Storage Temperature | -20 to +70 °C |
| Relative Humidity | 5–85% non-condensed |
| Certifications | CE, UL508, UL1604 Class I Div 2, cUL, DNV |
– Product Features
-
5.7” TFT color touchscreen with LED backlight for enhanced clarity.
-
Object-oriented HMI operation for intuitive configuration and usability.
-
Full communication support: RS232, RS422/485, Ethernet, USB.
-
Real-time clock with high-accuracy timekeeping.
-
IP66 front panel protection for robust industrial applications.
-
Integrated mounting solution with wide panel compatibility.
-
Internal fuse protection and software reset functions.
-
Supports ABB Panel Builder 800 for development and deployment.
– Product Advantages
-
Robust Construction: With powder-coated aluminum housing and industrial sealing, the PP825A is built to endure.
-
Compact and Lightweight: Its slim profile and low weight (0.9 kg) make it easy to install in space-constrained environments.
-
Long Service Life: Equipped with a durable LED backlight and quality components, ensuring high uptime and minimal maintenance.
-
Simple Integration: Supports multiple communication protocols and interfaces to easily integrate with various controllers.
-
Efficient Software Toolchain: ABB’s Panel Builder 800 allows fast deployment and configuration reuse across multiple projects.
– Product Applications
-
Factory automation systems
-
HMI for process control
-
Equipment monitoring panels
-
SCADA operator interfaces
-
Packaging and assembly lines
-
Building automation terminals
-
Water/wastewater control systems
– Latest Report Title on the Product
“ABB Enhances Industrial HMI Offering with PP825A Touch Panel, Extending Panel 800 Series Capabilities”
– Related ABB Models from the Same Series
| Model | Display | Dimensions (mm) | Weight | Key Differences |
|---|---|---|---|---|
| PP835A | 7″ TFT LCD | 211 x 156 x 6 | 1.1 kg | Larger display, more I/O compatibility |
| PP845A | 10.4″ TFT LCD | 282 x 212 x 6 | 1.6 kg | High-res screen, more memory |
| PP865A | 15″ TFT LCD | 408 x 278 x 6 | 3.4 kg | Large screen, suitable for SCADA applications |
| PP877A | 12.1″ TFT LCD | 322 x 243 x 6 | 2.8 kg | Designed for high-visibility environments |
| CP6202 | 5.7″ TFT LCD | 202 x 152 x 6 | 1.0 kg | Compatible with AC500 platforms |
| CP6302 | 10.4″ TFT LCD | 282 x 212 x 6 | 1.5 kg | Supports CoDeSys and wider connectivity |
– Popular ABB Models Across the Brand
| Model | Type | Key Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| PM866 | System 800xA CPU | Redundant/high-performance control | 185 x 120 x 50 | 0.8 kg |
| AC500 PM592-ETH | PLC CPU | Modular controller with Ethernet | 130 x 110 x 75 | 0.7 kg |
| AI835 | Analog Input Module | 8 ch. AI module | 100 x 80 x 40 | 0.3 kg |
| CI854AK01 | Communication Module Profibus | PROFIBUS-DP Master | 120 x 80 x 50 | 0.5 kg |
| PM861K01 | System 800xA Processor Unit | Integrated CPU unit with baseplate | 210 x 150 x 70 | 1.2 kg |
| CP600-Pro HMI | Advanced Touch Panel | High-performance HMI with CoDeSys | Varies by model | Varies |
FAQ
– FAQ (Frequently Asked Questions)
Q1: What is the main use of the PP825A touch panel?
A1: It is used as a human-machine interface for monitoring and controlling industrial automation systems.
Q2: What operating voltages are supported?
A2: The panel operates on 24 V DC with a voltage tolerance from 20 V to 30 V.
Q3: Can I use the PP825A in outdoor environments?
A3: No, it is not designed for direct sunlight or long-term outdoor exposure. It is suitable for indoor use only.
Q4: Does the panel have real-time clock capabilities?
A4: Yes, it features an RTC with high accuracy and a battery backup (CR2450) for up to 3 years.
Q5: What software is used for programming the PP825A?
A5: The panel is configured using ABB’s Panel Builder 800 software.
Q6: Can the PP825A be mounted in a horizontal orientation?
A6: Yes, but the maximum ambient temperature is reduced to 40 °C when mounted horizontally.
Q7: Is the Ethernet port galvanically isolated?
A7: Yes, the Ethernet port is galvanically isolated, unlike other communication ports.
Q8: What type of touch technology does the screen use?
A8: It uses a resistive touch screen with a polyester-on-glass construction.
