Product Description – ABB PM861K01 3BSE018105R1
The ABB PM861K01 is a central processor unit kit designed for the System 800xA AC 800M controller platform. It enables high-performance process control with advanced redundancy support and integration capabilities. This modular kit includes the PM861 processor, TP830 baseplate, and critical terminators necessary for robust communication and I/O connectivity.
This processor unit kit is ideal for single or redundant configurations and can be seamlessly integrated with a wide range of communication protocols and I/O systems, including S800 I/O via the ModuleBus. Designed for demanding industrial automation applications, it ensures superior reliability, flexibility, and scalability.

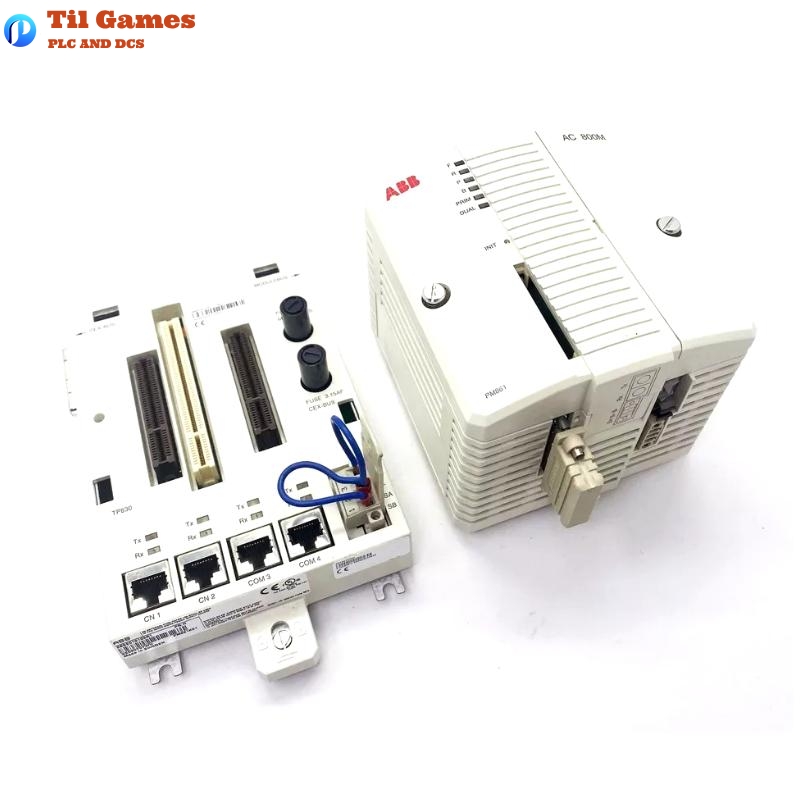

Package Contents
-
PM861 – Processor Unit (CPU)
-
TP830 – Baseplate (width = 115 mm)
-
TB850 – CEX-bus terminator
-
TB807 – ModuleBus terminator
-
TB852 – RCU-Link terminator
Technical Specifications
| Parameter | Details |
|---|---|
| Product Code | 3BSE018105R1 |
| Processor Type | PM861 CPU |
| Baseplate Included | TP830 (115 mm width) |
| Communication Bus Support | CEX-Bus, Electrical/Optical ModuleBus |
| Memory | Internal Flash + RAM with compact flash slot |
| Built-in Interfaces | 2 × Ethernet, 2 × Serial RS-232 (COM3/COM4) |
| I/O Connectivity | S800 I/O, PROFIBUS DP, Foundation Fieldbus |
| Power Supply Voltage | 24 V DC nominal |
| Mounting | DIN-rail (TS35/7.5) |
| Redundancy | Supported (with RCU Link) |
| Dimensions (W×H×D) | 203 × 157 × 135 mm |
| Weight | 1.14 kg |
| Operating Temp. Range | 0 °C to +55 °C |
| Protection Class | IP20 |
| Certifications | CE, UL, TÜV (SIL2/3 compatible via PM865) |
Key Features
-
Integrated dual Ethernet ports for network redundancy
-
Direct connection to S800 I/O via ModuleBus
-
High-performance CPU with deterministic response
-
Support for redundant configurations with bumpless switchover
-
Built-in Compact Flash interface for application and firmware storage
-
DIN-rail mounting with quick-locking mechanism
-
Comprehensive diagnostic LEDs for status monitoring
-
Complies with global EMC and safety standards
Advantages
-
Reliability: Designed for mission-critical applications with support for redundancy and hot-swappable components.
-
Flexibility: Modular design with wide support for various ABB and third-party communication protocols.
-
Scalability: Expandable I/O capability via Electrical and Optical ModuleBus for large applications.
-
Low Maintenance: Integrated diagnostics and compact flash support reduce field maintenance.
-
Standard Compliance: Compliant with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
Applications
-
Distributed Control Systems (DCS) in process automation
-
Power generation and distribution automation
-
Oil and gas platform control systems
-
Water and wastewater treatment automation
-
Pulp and paper manufacturing
-
Cement and mining process control
-
Pharmaceutical and chemical process industries
Recent Documentation Titles
-
AC 800M Controller Hardware Manual – System Version 5.1
-
System 800xA Release Notes for Control and I/O – Version 5.1.1
-
Redundancy Configuration in AC 800M – Engineering Guide
-
Mounting and Wiring Guidelines for AC 800M Hardware
-
S800 I/O Modules and ModuleBus Integration Manual
Related Models from the Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| PM851K01 | Entry-level processor kit | 203 × 157 × 135 | 1.12 kg |
| PM856K01 | Mid-tier CPU for smaller applications | 203 × 157 × 135 | 1.13 kg |
| PM864AK01 | Extended memory version | 203 × 157 × 135 | 1.14 kg |
| PM865K01 | Redundancy-capable high memory CPU | 203 × 157 × 135 | 1.15 kg |
| PM866K01 | Enhanced control with more interfaces | 203 × 157 × 135 | 1.15 kg |
| PM891K01 | Highest performance, FF HSE ready | 203 × 157 × 135 | 1.17 kg |
Popular ABB Models
| Model | Function | Dimensions (mm) | Weight |
|---|---|---|---|
| CI854AK01 | PROFIBUS DP Interface Module | 127 × 109 × 104 | 0.48 kg |
| CI860K01 | FOUNDATION Fieldbus HSE Interface | 127 × 109 × 104 | 0.45 kg |
| SD831 | Power Supply Unit (30W, 24V) | 135 × 115 × 132 | 0.65 kg |
| TB820V2 | ModuleBus Cluster Modem | 150 × 110 × 95 | 0.50 kg |
| CI867K01 | Modbus TCP Communication Interface | 127 × 109 × 104 | 0.48 kg |
| SM811K01 | Safety Monitoring Module (SIL3) | 127 × 109 × 104 | 0.50 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the TB850, TB807, and TB852 terminators in the PM861K01 kit?
A1: These terminators are used for proper electrical termination of the CEX-Bus, ModuleBus, and RCU-Link to ensure signal integrity and reliable communication.
Q2: Can the PM861K01 operate in a redundant CPU configuration?
A2: Yes, it fully supports redundancy via the RCU-Link. Two PM861 units can operate in a primary-backup mode with automatic switchover.
Q3: Is the PM861K01 suitable for safety-critical applications?
A3: The PM861 itself is not SIL-certified. For safety-critical (SIL2/SIL3) applications, use PM865 or PM865/SM810 combination.
Q4: Can the included TP830 baseplate be used for other CPU types?
A4: Yes, TP830 is compatible with other PM8xx series CPUs, including PM860, PM864, and PM865.
Q5: How do I connect S800 I/O modules to the PM861K01?
A5: Connect S800 I/O modules directly to the Electrical ModuleBus on the TP830 baseplate using a ModuleBus cable with TB820 modems if needed.
Q6: What types of communication modules are supported on the CEX-Bus?
A6: The CEX-Bus supports modules such as CI854 (PROFIBUS), CI860 (FF HSE), CI867 (Modbus TCP), and others.
Q7: What is the function of the INIT push button on the PM861?
A7: The INIT button is used to reset the processor or initiate firmware download and recovery operations.
Q8: How is memory backed up in the PM861K01 system?
A8: The system includes internal memory backup supported by an external battery via the TP830 baseplate to maintain RAM and RTC data during power loss.
