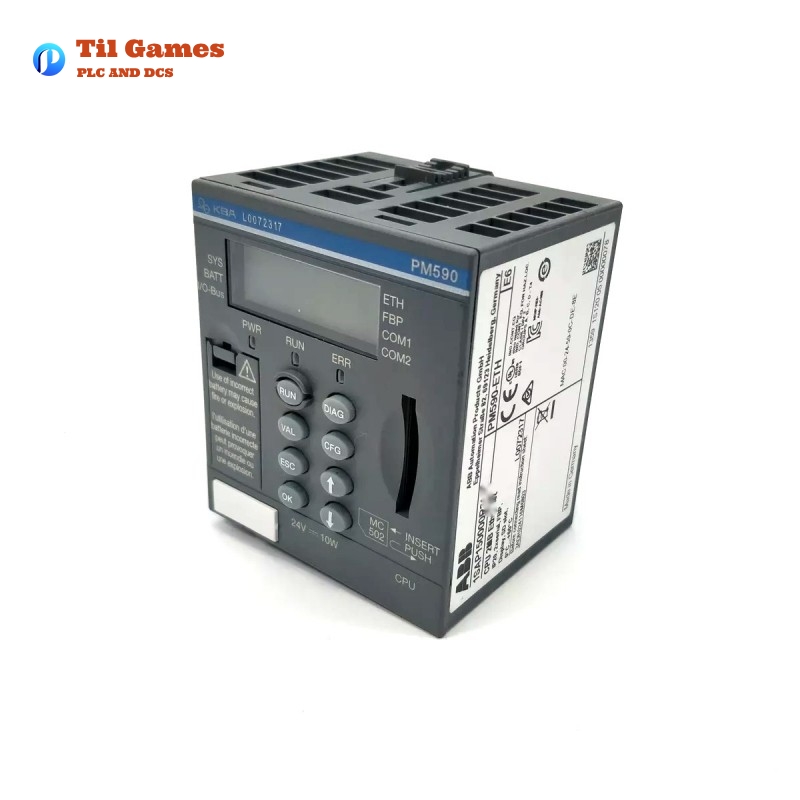

ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module

ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module

Manufacturer:ABB

Product Number:PM590-ETH 1SAP150000R0170

Product Type:Processor Module

Origin:Sweden (SE)

Dimensions:62 × 76 × 67.5 mm

Weight:0.15 kg

Views:19

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/PM590-ETH-1SAP150000R0170-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PM590-ETH-1SAP150000R0170-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PM590-ETH-1SAP150000R0170-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PM590-ETH-1SAP150000R0170-1.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module is a high-performance programmable logic controller (PLC) designed for distributed automation systems. It is part of the AC500 series, which is known for its flexibility, scalability, and robust performance in industrial environments. This module is equipped with advanced communication interfaces, a user-friendly LCD display, and extensive I/O capabilities, making it suitable for a wide range of applications.

Product Parameters

Parameter Specification
Product Name ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module
Product Main Type PM590
Power Supply 24 V DC
Primary Voltage 24 V DC
Memory Size User Data 2560 kB
Memory Size User Program 2048 kB
Memory Type User Data Flash EPROM
Memory Type User Program Flash EPROM, non-volatile RAM, SD Card
Maximum Number of Analog I/Os 160 AI, 160 AO local max. 10 extension modules
Maximum Number of Digital I/Os 320 DI, 240 DO/DC local max. 10 extension modules
Communication Interface Serial/FBP/Ethernet
Fieldbus Interface Type Ethernet TCP/IP
Serial Port 1 Type RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII, CS31 Master
Serial Port 2 Type RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII
Display Type LCD
Number of Display Lines 1
Number of Function Keys 8
Number of LEDs 3
Degree of Protection IP20
Mounting Position Horizontal, Vertical possible with derating
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Product Depth 72 mm
Dimensions 62 × 76 × 67.5 mm
Weight 0.15 kg
Ambient Air Temperature (Operation) 0 … +60 °C
Ambient Air Temperature (Storage) -40 … +70 °C
Maximum Operating Altitude 2000 m
Minimum Order Quantity 1 piece
Order Multiple 1 piece

Product Features

  • Advanced Communication Interfaces: The module supports serial and Ethernet communication, enabling seamless integration with various industrial networks.
  • Extensive I/O Capabilities: With a maximum of 160 analog I/Os and 320 digital I/Os, the module can handle complex automation tasks.
  • User-Friendly Interface: The LCD display and function keys provide easy access to system parameters and diagnostics.
  • Flexible Mounting Options: The module can be mounted horizontally or vertically, offering flexibility in installation.
  • Robust Design: With an IP20 degree of protection, the module is designed to withstand harsh industrial environments.

Product Advantages

  • Scalability: The module supports up to 10 extension modules, allowing for easy system expansion.
  • High Performance: With a large memory size and fast processing capabilities, the module can handle demanding automation tasks.
  • Versatility: The configurable serial ports and Ethernet interface make the module suitable for a wide range of applications.
  • Reliability: The use of non-volatile RAM and Flash EPROM ensures data integrity and system reliability.

Product Applications

The ABB PM590-ETH 1SAP150000R0170 AC500 Processor Module is ideal for use in various industrial applications, including:

  • Manufacturing Automation: Control of production lines, machinery, and robotic systems.
  • Process Control: Monitoring and control of chemical, pharmaceutical, and food processing plants.
  • Energy Management: Control and monitoring of power distribution systems.
  • Building Automation: Management of HVAC, lighting, and security systems in commercial buildings.

Latest News Headline

“ABB Launches Enhanced PM590-ETH AC500 Processor Module for Industrial Automation”

Recommended Related Models

Model Number Description
PM591-ETH AC500 PLC with enhanced Ethernet capabilities
PM592-ETH AC500 PLC with additional I/O options
PM593-ETH AC500 PLC with advanced communication protocols
PM594-ETH AC500 PLC with extended memory and processing
PM595-ETH AC500 PLC with integrated safety features
PM596-ETH AC500 PLC with high-speed processing capabilities

Recommended Popular ABB Models

Model Number Description Parameters
AC500-eCo CPU Compact PLC for small to medium applications 24 V DC, 512 kB memory, 32 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
AC500-S Safety CPU Safety PLC for critical applications 24 V DC, 1024 kB memory, 64 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
AC500 PM583-ETH Mid-range PLC with Ethernet connectivity 24 V DC, 2048 kB memory, 128 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
AC500 PM584-ETH High-performance PLC with advanced features 24 V DC, 4096 kB memory, 256 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
AC500 PM585-ETH PLC with integrated motion control 24 V DC, 8192 kB memory, 512 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
AC500 PM586-ETH PLC with high-speed processing and communication 24 V DC, 16384 kB memory, 1024 DI/DO, 62 × 76 × 67.5 mm, 0.15 kg
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the operating temperature range for the PM590-ETH module?
A1: The operating temperature range for the PM590-ETH module is 0 to +60 °C.

Q2: Can the PM590-ETH module be mounted vertically?
A2: Yes, the PM590-ETH module can be mounted vertically, but with derating.

Q3: What is the maximum number of analog I/Os supported by the PM590-ETH module?
A3: The PM590-ETH module supports a maximum of 160 analog inputs and 160 analog outputs.

Q4: What type of memory is used for user data in the PM590-ETH module?
A4: The PM590-ETH module uses Flash EPROM for user data storage.

Q5: What communication interfaces are available on the PM590-ETH module?
A5: The PM590-ETH module supports serial (RS232/RS485) and Ethernet communication interfaces.

Q6: What is the degree of protection for the PM590-ETH module?
A6: The PM590-ETH module has a degree of protection of IP20.
