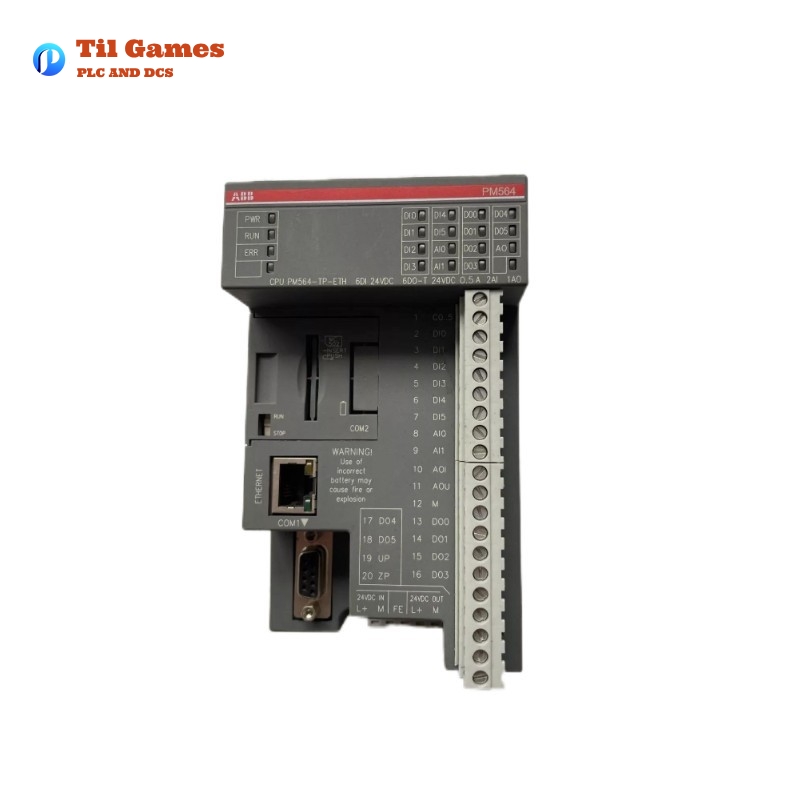

The ABB PM564 AC500 is a versatile and robust programmable logic controller designed for industrial automation applications. It is part of the AC500-eCo series, which is known for its flexibility, scalability, and ease of use. The PM564 is suitable for a wide range of applications, from simple machine control to complex automation systems.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions | 74 × 135 × 82 mm |
| Weight | 0.287 kg |
| Power Supply | 24 V DC or 100 – 240 V AC |
| Memory | 128 kB Flash EPROM |
| Digital Inputs | 6 DI |
| Digital Outputs | 6 DO (Transistor or Relay) |
| Analog Inputs | 2 AI |
| Analog Outputs | 1 AO |
| Processor Type | Freescale ARM Processor 32-bit |
| Processor Clock Speed | 50 MHz |
| Communication Interfaces | RS-485, Ethernet (depending on model) |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Operating Temperature | 0 °C to +60 °C (horizontal mounting) |
| Storage Temperature | -40 °C to +70 °C |
| Protection Class | IP20 |
Product Features
- Compact Design: The PM564 is designed to be compact, making it suitable for applications where space is limited.
- Flexible I/O Configuration: It offers a flexible I/O configuration with a mix of digital and analog inputs and outputs.
- Ethernet Connectivity: Some models come with onboard Ethernet, enabling easy integration into networked systems.
- Robust Construction: Built to withstand harsh industrial environments, the PM564 is resistant to vibrations and shocks.
- Multiple Programming Languages: Supports a variety of programming languages, making it adaptable to different programming preferences and application requirements.
Product Advantages
- Scalability: The AC500 series is highly scalable, allowing for easy expansion as your automation needs grow.
- Ease of Use: The intuitive programming environment and user-friendly interface make it easy to configure and operate.
- Reliability: Known for its high reliability and long service life, the PM564 ensures minimal downtime and maintenance.
- Compatibility: Compatible with a wide range of ABB accessories and modules, enhancing its functionality and versatility.
Product Applications
The ABB PM564 AC500 PLC is suitable for a wide range of industrial applications, including:
- Manufacturing Automation: Controlling machinery and production lines.
- Process Control: Managing processes in industries such as chemical, food and beverage, and pharmaceuticals.
- Building Automation: Managing HVAC systems, lighting, and security systems.
- Energy Management: Monitoring and controlling energy consumption in industrial facilities.
- Water and Wastewater Treatment: Automating processes in water treatment plants.
Latest News Headlines
- ABB PM564 AC500 PLC Now Available with Enhanced Ethernet Connectivity
- New Firmware Update for ABB PM564 AC500 PLC Improves Performance and Security
- ABB Expands AC500 Series with New PM564 Models for Industrial Automation
Recommended Models in the Same Series
| Model | Description | Memory | Digital I/O | Analog I/O | Ethernet | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| PM554-TP | 128 kB, 8 DI, 6 DO-T, 24 V DC | 128 kB | 8 DI, 6 DO | None | No | 74 × 135 × 82 | 0.287 |
| PM554-TP-ETH | 128 kB, 8 DI, 6 DO-T, 24 V DC, Ethernet | 128 kB | 8 DI, 6 DO | None | Yes | 74 × 135 × 82 | 0.287 |
| PM556-TP-ETH | 512 kB, 8 DI, 6 DO-T, 24 V DC, Ethernet | 512 kB | 8 DI, 6 DO | None | Yes | 74 × 135 × 82 | 0.287 |
| PM564-TP | 128 kB, 6 DI, 6 DO-T, 2 AI, 1 AO, 24 V DC | 128 kB | 6 DI, 6 DO | 2 AI, 1 AO | No | 74 × 135 × 82 | 0.287 |
| PM564-TP-ETH | 128 kB, 6 DI, 6 DO-T, 2 AI, 1 AO, 24 V DC, Ethernet | 128 kB | 6 DI, 6 DO | 2 AI, 1 AO | Yes | 74 × 135 × 82 | 0.287 |
| PM566-TP-ETH | 512 kB, 6 DI, 6 DO-T, 2 AI, 1 AO, 24 V DC, Ethernet | 512 kB | 6 DI, 6 DO | 2 AI, 1 AO | Yes | 74 × 135 × 82 | 0.287 |
Recommended Popular ABB Models
| Model | Description | Memory | Digital I/O | Analog I/O | Ethernet | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| AC500 PM583 | High-performance PLC with 1 MB memory | 1 MB | 32 DI, 32 DO | 16 AI, 8 AO | Yes | 74 × 135 × 82 | 0.3 |
| AC500 PM581 | Mid-range PLC with 512 kB memory | 512 kB | 16 DI, 16 DO | 8 AI, 4 AO | Yes | 74 × 135 × 82 | 0.29 |
| AC500 PM571 | Compact PLC with 256 kB memory | 256 kB | 8 DI, 8 DO | 4 AI, 2 AO | No | 74 × 135 × 82 | 0.28 |
| AC500 PM591 | Advanced PLC with 2 MB memory | 2 MB | 64 DI, 64 DO | 32 AI, 16 AO | Yes | 74 × 135 × 82 | 0.31 |
| AC500 PM573 | Entry-level PLC with 128 kB memory | 128 kB | 8 DI, 8 DO | 4 AI, 2 AO | No | 74 × 135 × 82 | 0.27 |
| AC500 PM575 | Mid-range PLC with 512 kB memory, Ethernet | 512 kB | 16 DI, 16 DO | 8 AI, 4 AO | Yes | 74 × 135 × 82 | 0.29 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O modules that can be connected to the PM564?
A1: The PM564 can support up to 10 I/O modules, allowing for a maximum of 320 digital inputs, 240 digital outputs, 160 analog inputs, and 160 analog outputs.
Q2: Can the PM564 operate in both horizontal and vertical mounting positions?
A2: Yes, the PM564 can be mounted either horizontally or vertically. However, when mounted vertically, the operating temperature range is reduced to 0 °C to +40 °C, and the output load should be reduced to 50% per group.
Q3: What programming languages are supported by the PM564?
A3: The PM564 supports multiple programming languages, including Instruction List (IL), Function Block Diagram (FBD), Ladder Diagram (LD), Sequential Function Chart (SFC), Structured Text (ST), and Continuous Function Chart (CFC).
Q4: Is the PM564 suitable for use in harsh industrial environments?
A4: Yes, the PM564 is designed to withstand harsh industrial environments. It has a high resistance to vibrations and shocks and can operate in a wide temperature range.
Q5: Does the PM564 support Ethernet communication?
A5: Yes, certain models of the PM564, such as the PM564-TP-ETH and PM564-RP-ETH, come with onboard Ethernet for easy integration into networked systems.
Q6: What is the power consumption of the PM564?
A6: The power consumption of the PM564 varies depending on the model. For example, the PM564-TP consumes a maximum of 180 mA at 24 V DC, while the PM564-RP-AC consumes a maximum of 210 mA at 100 V AC and 125 mA at 240 V AC.
