Technical Specifications
| Parameter | Description |
|---|---|

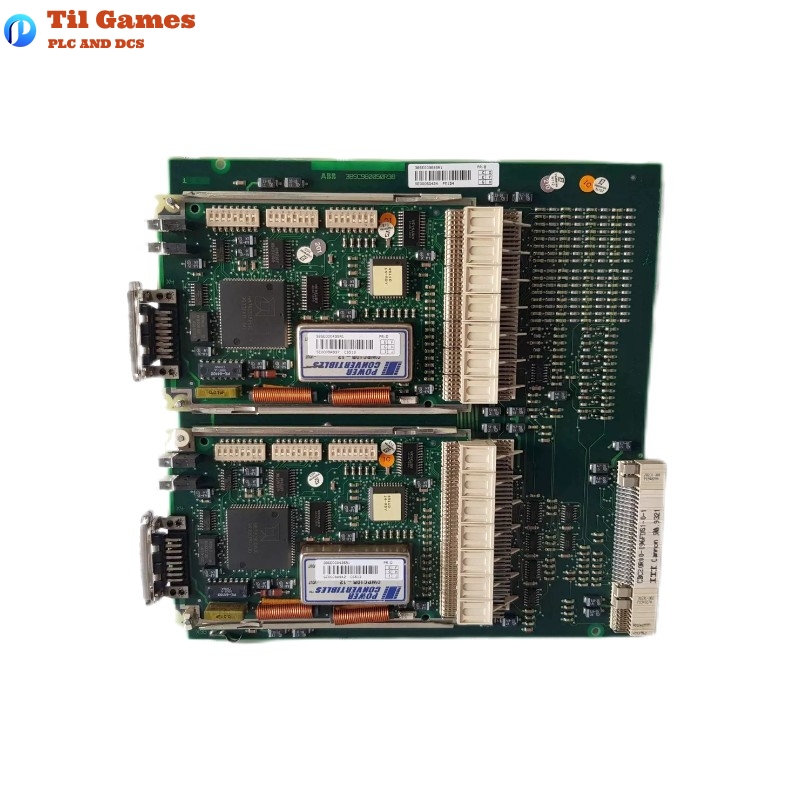

| Product Model | PM154 |
| Part Number | 3BSE003645R1 |
| Supported Networks | PROFIBUS, FOUNDATION Fieldbus, Modbus, Industrial Ethernet |
| Application | Interface board for communication with external devices/networks |
| Protocol Flexibility | Protocol support depends on variant; single or multi-protocol options |
| Data Exchange Functionality | Remote monitoring, control, and data collection |
| Configuration Options | Configurable baud rate, addressing, network parameters |
| Diagnostic Capabilities | Built-in diagnostics for status monitoring and troubleshooting |
| Operating Voltage | Supplied via system bus (AC800F) |
| Mounting | DIN rail mounting within AC800F module housing |
| Dimensions (W × H × D) | 24 × 125 × 120 mm |
| Weight | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB PM154 communication interface board?
A1: The PM154 board functions as a communication interface, allowing the AC800F controller to exchange data with external field devices across industrial networks like PROFIBUS, Modbus, and Ethernet.
Q2: Which communication protocols are supported by the PM154?
A2: Depending on the variant, the PM154 supports PROFIBUS, FOUNDATION Fieldbus, Modbus RTU, and Industrial Ethernet.
Q3: Can the PM154 be used for simultaneous communication across multiple networks?
A3: Some variants of the PM154 support multi-protocol capabilities, allowing simultaneous communication across different networks. Verify the exact variant for specific support.
Q4: How is the PM154 configured for a specific network environment?
A4: The board’s settings, including baud rate, network addressing, and protocol parameters, are configured using system configuration tools within the AC800F environment.
Q5: What diagnostics features are included in the PM154?
A5: The board offers integrated diagnostics functions to monitor link status, detect communication errors, and assist in troubleshooting connectivity issues.
Q6: How is the PM154 physically installed in the system?
A6: It is mounted on a DIN rail inside the AC800F controller housing and connects via the system backplane.
Q7: Is firmware updating required for the PM154?
A7: Yes, firmware updates may be required to support new features or communication standards. Updates are performed through ABB’s engineering tools.
Q8: What is the weight and size of the PM154 module?
A8: The module has dimensions of 24 × 125 × 120 mm and weighs approximately 0.35 kg.
