Technical Specifications
| Parameter | Specification |
|---|---|

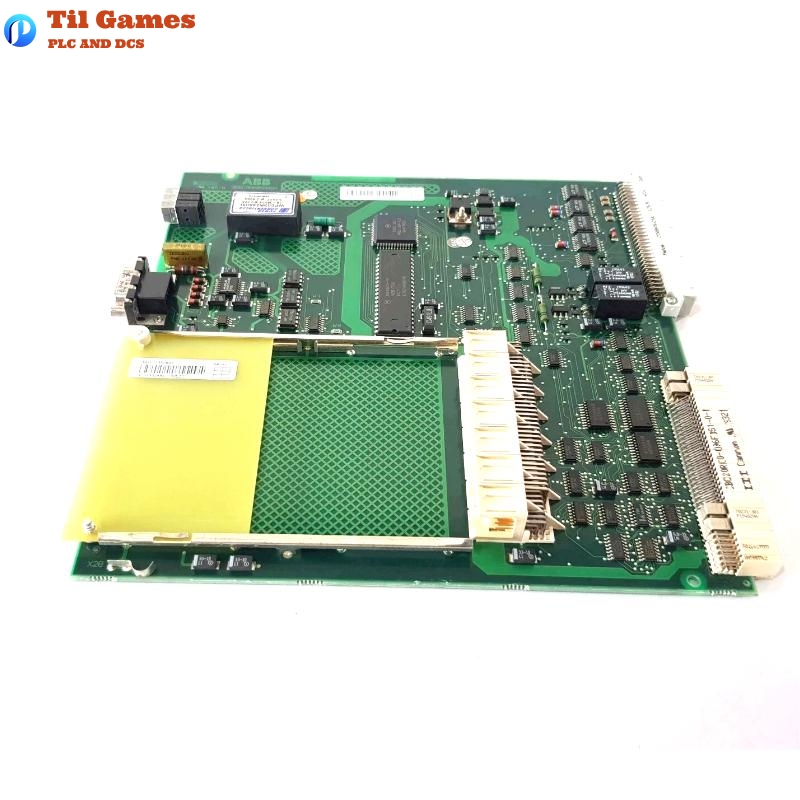

| Module Type | Hybrid Analog Input/Output Module |
| Analog Input Channels | 8 or 16 channels (individually isolated) |
| Analog Output Channels | 4 or 8 channels (voltage or current) |
| Signal Types (Input) | Voltage, current, resistance |
| Signal Types (Output) | Voltage, current |
| Resolution | 12-bit or 16-bit (dependent on configuration) |
| Communication Interface | S800 I/O Bus (for AC800F Field Controller System) |
| Power Supply | Supplied via I/O base unit |
| Installation Method | DIN rail or module base mounted in AC800F rack |
| Isolation | Galvanic isolation per channel |
| Accuracy | High accuracy analog signal conversion |
| Dimensions (W × H × D) | 24 × 125 × 120 mm |
| Weight | 0.35 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the ABB PM153 module?
A1: The PM153 serves as a hybrid analog I/O module, combining both analog input and analog output capabilities within a single unit for the AC800F system.
Q2: How many analog input and output channels does the module support?
A2: The module supports either 8 or 16 analog input channels and 4 or 8 analog output channels, depending on configuration.
Q3: What types of analog signals can the PM153 process?
A3: It can handle voltage, current, and resistance signals on the input side, and voltage or current signals on the output side.
Q4: Is there electrical isolation between channels?
A4: Yes, each analog input and output channel is individually isolated to ensure signal integrity and safety.
Q5: What is the resolution of the analog signals?
A5: The PM153 module provides a resolution of either 12 bits or 16 bits, based on selected settings.
Q6: How does the PM153 communicate with the controller?
A6: It communicates through the S800 I/O bus to interface directly with the AC800F field controller.
Q7: What installation options are available for this module?
A7: The PM153 is designed for installation within the AC800F rack and can be mounted via standard DIN rail or module base.
Q8: What are the main benefits of using a hybrid module like PM153?
A8: It saves rack space, reduces wiring complexity, simplifies installation, and provides a cost-efficient solution for mixed-signal processing.
