Product Description

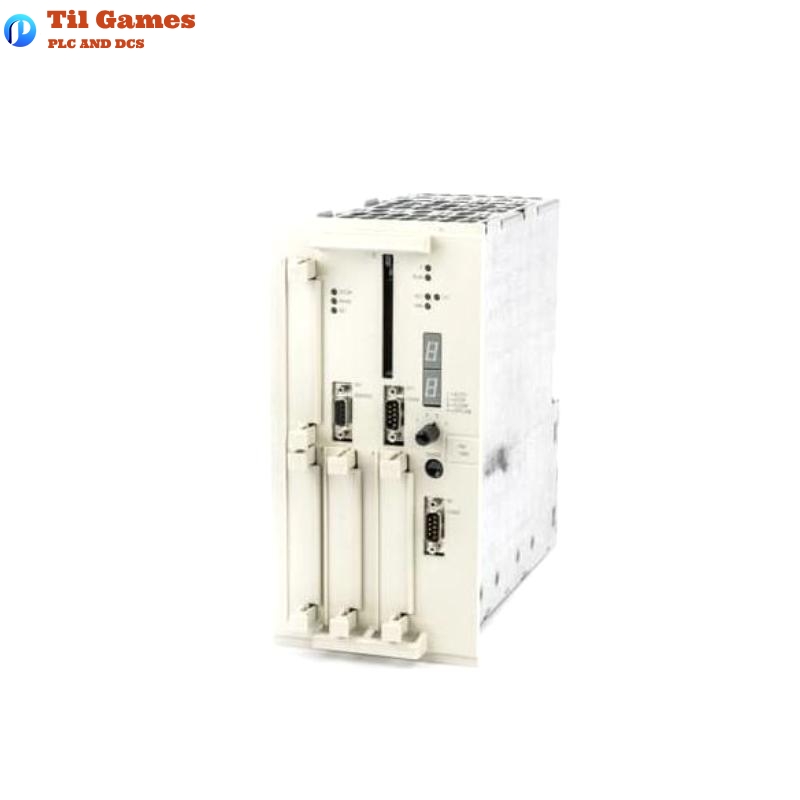

The ABB PM150V08 3BSE009598R1 is the central processing unit utilized within the Safeguard 400 Series safety systems. Designed specifically for high-integrity safety and control applications, the PM150V08 integrates seamlessly into ABB’s Advant Controller 410 platform. This unit supports both single and dual-controller safety architectures (1oo1D and 1oo2D), providing deterministic fail-safe operations across critical safety applications such as Emergency Shutdown (ESD), Fire & Gas Protection (F&G), and Process Shutdown (PSD) systems.
The controller features a robust processor module with integrated ECC memory, multiple communication ports, and direct compatibility with up to four sub-modules. It includes fault-tolerant functionality and is TÜV certified for use in applications up to SIL 3 per IEC 61508.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | PM150V08 |
| Product Code | 3BSE009598R1 |
| Processor Type | Motorola MC68020 |
| Memory | 8 MB dynamic RAM with ECC |
| Flash Memory Slot | 1 slot for safety system program card |
| Communication Interfaces | 2x RS-232-C ports, 1x Advant Station port, 4x sub-module slots |
| MB300 Interface | 2 dedicated communication slots |
| Supported Architecture | 1oo1D (single), 1oo2D (dual redundant) |
| Compatible Systems | Safeguard 400 Series, Advant Controller 410 |
| Dimensions (W x H x D) | 216 mm × 99 mm × 234 mm |
| Weight | 2.85 kg |
| Certification | TÜV, SIL 1–3 (IEC 61508), AK 4/6, DIN V VDE 0801, EN 298, EN 54 |
| Supported I/O Rack Types | Central + up to two additional S100 I/O racks (up to 54 boards total) |
Key Features
-
Integrated 8 MB ECC-protected memory
-
Motorola MC68020 processor with safety system firmware
-
1 slot for flash memory-based safety software storage
-
Dual RS-232-C serial interfaces for diagnostic and MasterView
-
Support for both redundant (1oo2D) and single (1oo1D) architectures
-
Compatibility with addressable detector systems (Fireguard, Autronica)
-
High-availability design with self-diagnostics and system fault isolation
-
Support for critical safety outputs via Master Vote 3000
-
Access control via physical key-switches for override security
-
Advanced engineering integration through AMPL and Safety Builder tools
Advantages
-
TÜV-certified for high-integrity safety applications up to SIL 3
-
Fail-safe design ensures controlled system deactivation under fault conditions
-
Dual redundancy support ensures uninterrupted operations during component failures
-
High integration capability with legacy ABB systems and third-party DCS networks
-
Robust diagnostics and fault isolation to minimize unplanned downtimes
-
Optimized engineering using graphical Cause & Effect programming and AMPL
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Detection Systems (F&G)
-
Process Shutdown Systems (PSD)
-
Equipment Protection and Critical Control
-
Burner Management Systems (compliant with EN 298)
-
Hazardous environment safety control requiring IEC 61508 SIL 2/3 compliance
Latest Publications
| Title | Publication Date |
|---|---|
| ABB Safeguard 400 Series Product Guide | August 2000 |
| Safety Builder and AMPL Configuration for High-Integrity Control Applications | July 2001 |
| Functional Safety in Process Automation – ABB SIL3 System Overview | April 2003 |
Related Models (Same Series or Closely Related)
| Model Number | Description | Key Features |
|---|---|---|
| PM150V16 3BSE009599R1 | High-memory version of PM150V08 | 16 MB RAM, larger application support |
| DSAI160 | Loop Monitored Digital Input Module | Supports fault detection in safety inputs |
| DSAO130 | Analog Output Module | Outputs for shutdown and control applications |
| DSDI110A | Digital Input Module | Supports safety digital input processing |
| DSBC172 | Bus Repeater Master | Extends MB300 communications in safety systems |
| DSBC173 | Bus Repeater Slave | Complements DSBC172 for bus extension |
Popular ABB Models
| Model Number | Product Description | Core Application |
|---|---|---|
| AI835 3BSE008520R1 | Analog Input Module (S800 I/O) | 8-channel, HART, S800 compatibility |
| PM864AK01 | AC 800M Controller | Standard ABB controller for automation systems |
| CI854AK01 | PROFIBUS-DP Interface Module | PROFIBUS communications for AC800M |
| AI845 3BSE023675R1 | Analog Input Module (S800 I/O) | Enhanced diagnostics, 16-bit resolution |
| AO820 3BSE008546R1 | Analog Output Module | 4-channel, S800 I/O Series |
| DO820 3BSE008514R1 | Digital Output Module | 16-channel output for 24 VDC signals |
FAQ
Frequently Asked Questions (FAQ)
Q1: What processor does the PM150V08 use?
A1: The PM150V08 is built with a Motorola MC68020 processor and 8 MB ECC-protected dynamic memory.
Q2: Is the PM150V08 certified for SIL 3 safety applications?
A2: Yes, the unit is TÜV-certified for use in safety applications up to SIL 3, following IEC 61508 standards.
Q3: What system architectures are supported by the PM150V08?
A3: It supports both 1oo1D (single controller) and 1oo2D (dual redundant controller) safety architectures.
Q4: What type of communication interfaces does the unit provide?
A4: It offers two RS-232-C ports, one Advant engineering station port, and four sub-module slots (two configured with MB300).
Q5: Can the PM150V08 be integrated with non-ABB systems?
A5: Yes, it supports open connectivity and can interface with third-party control systems via standard protocols.
Q6: How many I/O modules can the PM150V08 control directly?
A6: In Safeguard 415 configurations, it can control up to 54 S100 I/O modules through three racks.
Q7: What safety outputs does it support?
A7: It uses Master Vote 3000 termination units for safety-critical digital output control.
Q8: How does the system behave in case of hardware failure?
A8: The controller performs fault isolation and continues operation in degraded mode (1oo1D), ensuring fail-safe shutdown when necessary.
