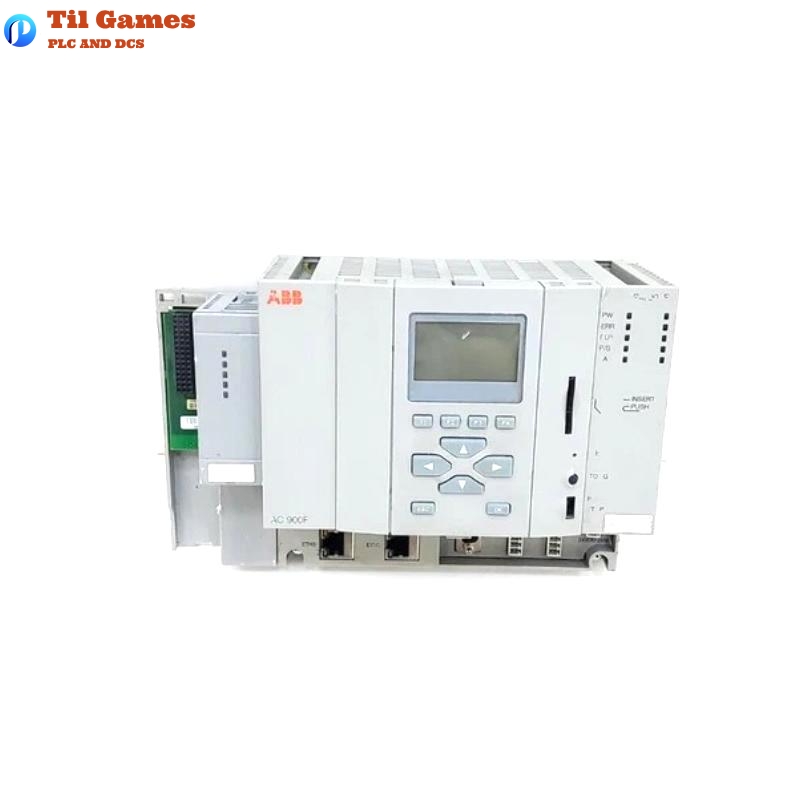

Technical Specifications – ABB PM 902F 3BDH001000R0001 Freelance AC 900F Controller CPU Module
| Parameter | Description |
|---|---|
| Article Number | 3BDH001000R0001 |
| Processor Type | PowerQUICC II Pro |
| Clock Frequency | 800 MHz |
| Performance | 0.12 ms for 1000 boolean operations |
| RAM Available for Application | 8 MB (battery-buffered SRAM) |
| Controller Memory | 24 MB |
| DRAM | 16 MB |
| Built-in SD Card Support | Yes |
| Number of Tasks per Controller | 9 |
| Communication Interface Slots | 2 slots for CMs |
| Ethernet Interfaces | 4 x RJ-45 (IEEE 802.3, 10/100 Mbit/s) |
| RS-232C Ports | 3 (2 general purpose, 1 for service tool) |
| Clock Synchronization | Yes |
| Switch Over Time (Redundant Config) | 500 ms |
| Redundancy Support | Yes |
| Power Supply | 24 V DC external |
| Power Consumption (Typical/Max) | 24 W / 30 W |
| Power Dissipation | 18 W |
| Back-up Battery | Lithium (TA 951F – not included) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Max Temperature Change Rate | 3 K/min (within operating range) |
| Relative Humidity | Max. 93%, non-condensing |
| Vibration Resistance | 2 g, 2–150 Hz |
| Protection Class | IP20 |
| Altitude Limit | < 2000 m |
| Environmental Protection | G3 compliant (ISA 71.04) |
| Industrial Certification | CE, RoHS (2011/65/EU, 2015/863), WEEE (2012/19/EU), cULus Class 1 Div 2 |
| Emission & Immunity Standards | EN 61000-6-4, EN 61000-6-2 |
| Electrical Safety | IEC/EN 61010-1, IEC/EN 61010-2-201 |
| Dimensions (W × H × D) | 227 × 152 × 95 mm |
| Weight (Including Base) | 1.1 kg |
FAQ
Frequently Asked Questions (FAQ) – ABB PM 902F CPU Module
Q1: What type of processor is used in the PM 902F CPU module?
A1: The PM 902F uses a PowerQUICC II Pro processor running at 800 MHz.
Q2: Does the PM 902F support redundancy configurations?
A2: Yes, the module supports redundancy with a switchover time of approximately 500 milliseconds.
Q3: How much memory is available for application programming?
A3: The module offers 8 MB of battery-buffered SRAM for application-specific tasks.
Q4: What are the environmental operating conditions for the PM 902F?
A4: It operates in temperatures from -20°C to +70°C, with up to 93% relative humidity (non-condensing).
Q5: What is the power supply requirement for this CPU module?
A5: The PM 902F requires an external 24 V DC power supply.
Q6: Are communication interfaces integrated in the unit?
A6: Yes, it includes 4 Ethernet ports and 3 RS-232C serial interfaces.
Q7: Is the lithium battery included with the CPU module?
A7: No, the lithium battery (TA 951F) is not included and must be ordered separately.
Q8: Which certifications and compliance standards does the PM 902F meet?
A8: It is CE marked, RoHS compliant, cULus Class 1 Div 2 certified, and meets EMC and safety standards per EN and IEC requirements.
