Product Description

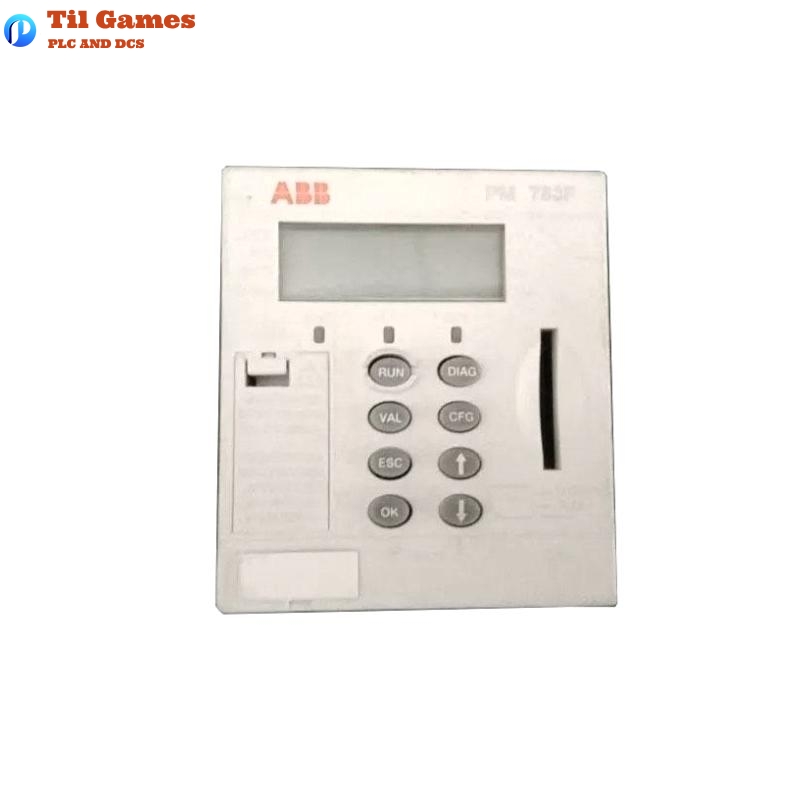

The ABB PM 783F (Order No. 3BDH000364R0005) is the smallest Freelance AC 700F CPU module, designed for compact, high-performance control in industrial environments. It supports up to 300 I/O points, and optionally accommodates 8 direct I/O modules plus one Profibus interface module. Equipped with onboard Modbus TCP and two serial interfaces, the PM 783F ensures versatile connectivity.
This CPU is engineered for multi-tasking with eight cyclic tasks and one fast PLC-type task. Such a configuration enables real-time control while maintaining balanced CPU load—ideal for demanding applications. A built-in LCD panel with status indicators and eight function keys allows for clear diagnostics and control at a glance. A controller lock feature enhances security by preventing unauthorized downloads.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3BDH000364R0005 |
| Processor | Motorola PowerQUICC (MPC8247) |
| Clock Frequency | 96 MHz |
| Instruction Processing Speed | 1000 boolean ops: 0.71 ms; binary: 1.667 ms; word: 2.322 ms; float: 3.125 ms |
| Memory | 10 MB total; 2 MB RAM for application; 2 MB battery-backed SRAM; 4 MB Flash ROM |
| Multitasking Capability | 8 cyclic + 1 fast PLC task (event/cyclic based) |
| Number of Tasks | 9 |
| Max Supported I/O Modules | 8 |
| Supported I/O Points | Up to 300 |
| Serial Interfaces | 2 (COM1: RS-232/485 for Modbus, COM2: RS-232 for diagnostics) |
| Ethernet | 1x RJ-45, IEEE 802.3, 10/100 Mbit/s |
| Onboard Protocols | Modbus TCP, Modbus RTU (Master/Slave) |
| Power Supply | 24 V DC |
| Power Consumption (typ/max) | 24 W |
| Power Dissipation | 10 W |
| Backup Battery | Lithium (TA 521F) |
| Data Retention at 25°C | Approx. 1.5 years |
| Clock Synchronization | Yes |
| Status Display | 19 LEDs + LCD + 8 Function Keys |
| Redundancy Support | Not available |
| Dimensions (W x H x D) | 67.5 x 76 x 54 mm |
| Weight | 0.4 kg (400 g) |
| Certifications | CE, GL, cUL |
| Mounting Position | Horizontal or vertical (with derating) |
| Environmental Protection | IP20 (with terminal base) |
Product Features
-
High-Performance CPU with PowerQUICC architecture for real-time process control.
-
Multi-Tasking Capability supporting up to 9 tasks for deterministic and flexible operation.
-
Compact Design ideal for space-constrained installations, yet powerful enough for mid-size applications.
-
Versatile Communication: Modbus TCP, RS-232, RS-485, and Profibus support.
-
Built-in Diagnostics and Display: LCD with status indicators and user interface keys.
-
Battery-Backed Memory to retain application data during power loss.
-
Security Enhancement via download lock and visible lock status.
Applications
-
Distributed control systems (DCS) in process automation
-
Machine and equipment automation
-
Power generation and energy management systems
-
Water and wastewater treatment plants
-
Compact SCADA or PLC-based systems
-
Remote terminal units (RTUs)
-
OEM process control solutions
Product Advantages
-
Optimized for cost-effective automation with modular expandability
-
Reduces engineering time through intuitive configuration
-
Enhances system security with controller lock function
-
Reliable long-term operation backed by battery retention and rugged design
-
Fast and deterministic processing suited for time-critical control tasks
-
Supports horizontal and vertical mounting, improving flexibility
-
Seamless integration into Freelance DCS environments
Latest Related Reports or Articles
-
“Enhanced Versatility and Performance in Compact Automation: ABB Freelance PM 783F Integration with Industry 4.0”
-
“ABB AC 700F Series Gains Popularity in Modular Control Systems”
-
“Cybersecurity in Freelance Control Systems: Locking Mechanisms in ABB PM 783F”
-
“Deployment Success Stories: ABB PM 783F in Power Plants and Utility Applications”
Recommended Related Models (Same Series or Compatible)
| Model | Description | Main Features |
|---|---|---|
| PM 782F | Compact CPU, 300 I/O, Ethernet, no LCD | Similar processing with reduced display features |
| PM 784F | Higher-end CPU with more memory and I/O support | 512 I/O, redundant capability |
| TB 711F | Terminal base for PM 783F | DIN rail mountable with spring terminals |
| TA 724F | Dummy coupler module | Dust and touch protection for unused slot |
| TU 715F | Terminal Unit 24 V DC | Screw-type terminal block, 32 channels |
| AI 723F | Analog Input Module | 16 channels configurable for voltage/current/RTD |
Popular ABB Models
| Model | Type | Main Features |
|---|---|---|
| AC500 PM573-ETH | Programmable Logic Controller | Ethernet, CAN, SD card slot, modular system |
| PM864A 3BSE018161R1 | CPU Module | Redundancy, 64 MB memory, high-speed processing |
| CI854AK01 3BSE030220R1 | Communication Module | PROFIBUS DP-V1 Master/Slave |
| AI835 3BSE008520R1 | Analog Input Module | 8 channels, HART protocol, S800 I/O |
| PM861AK01 | Controller Module | High-end redundancy controller |
| AI843 3BSE028925R1 | Analog Input Module | 8 channels, 4-20 mA input, HART support |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of I/O modules supported by PM 783F?
A1: The PM 783F supports up to 8 direct I/O modules and one optional Profibus interface module.
Q2: Does PM 783F support Modbus TCP and serial communication simultaneously?
A2: Yes, the module features one Ethernet port for Modbus TCP and two serial ports—COM1 can be used for Modbus RTU, and COM2 for diagnostics.
Q3: What are the available memory capacities in PM 783F?
A3: It includes 2 MB SRAM (battery-backed), 8 MB SDRAM, and 4 MB Flash ROM.
Q4: Can the CPU be locked for security reasons?
A4: Yes, it can be locked via front panel keys to prevent unauthorized downloads of applications or firmware.
Q5: How is real-time clock data retained during power loss?
A5: A built-in lithium battery backs up the real-time clock and SRAM, with approx. 1.5 years retention at 25°C.
Q6: What is the power consumption of the PM 783F module?
A6: Typical power consumption is 24 W, and power dissipation is 10 W.
Q7: What diagnostic features are available?
A7: The CPU includes 19 LEDs, an LCD screen, and eight function keys for runtime control, diagnostics, and status visualization.
Q8: What are the environmental and mounting requirements?
A8: It supports horizontal or vertical mounting with de-rating, and uses natural convection cooling that must not be obstructed.
