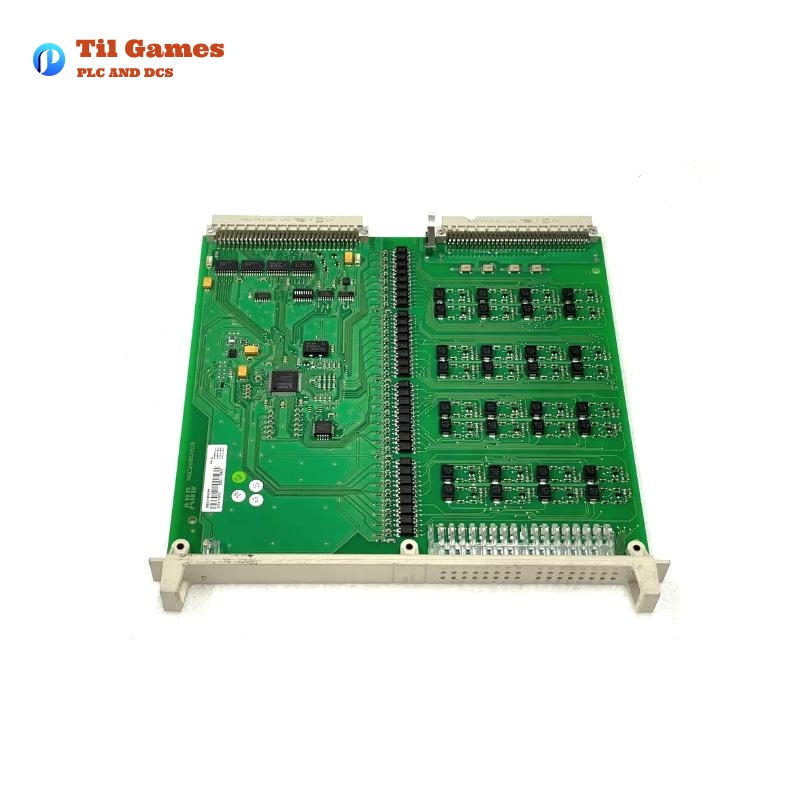

The ABB DSDI 110AV1 3BSE018295R1 is a high-performance digital input board designed for use within ABB’s Advant Master DCS and Symphony systems. Engineered for reliability and compactness, this module provides 32 channels for digital signal acquisition at 24V DC. It integrates seamlessly into automation systems, ensuring accurate and stable digital input signal processing.
This board is commonly deployed in industrial control systems, especially where space-saving design and high channel density are required. It supports robust signal acquisition from field devices such as switches, proximity sensors, and relay contacts.
– Technical Parameters
| Parameter | Description |
|---|---|
| Product Name | DSDI 110AV1 |
| Part Number | 3BSE018295R1 |
| Product Type | Digital Input Board |
| Number of Channels | 32 |
| Input Voltage | 24V DC |
| Input Type | Sink (PNP compatible) |
| Input Signal Delay | Approx. 3 ms |
| Isolation | Channel-to-bus and channel-to-channel isolated |
| Internal Power Supply | 5 V DC |
| Mounting | DIN-rail or rack mountable |
| Power Consumption | Approx. 2.5 W |
| System Compatibility | Symphony, Advant Master |
| Module Form Factor | Compact module size |
| Dimensions (W x D x H) | 234 x 18 x 229.5 mm |
| Weight | 0.332 kg |
– Product Features
-
32-channel digital input interface for dense signal integration.
-
Operates at standard 24V DC, suitable for common industrial sensors.
-
Channel-to-channel and channel-to-system isolation for signal integrity.
-
Compact size for space-saving installations in control cabinets.
-
Designed to integrate into ABB Symphony and Advant Master control systems.
-
High-speed input response to ensure accurate event capturing.
-
LED indicators for input status monitoring.
-
Built-in diagnostics for module health and troubleshooting.
– Product Advantages
-
High Channel Density: With 32 inputs, the DSDI 110AV1 supports large-scale signal acquisition using a minimal footprint.
-
Robust Isolation: Electrical isolation enhances system safety and reduces the risk of damage due to ground loops or voltage surges.
-
Modular Integration: Seamless fit into ABB control architecture simplifies design, installation, and maintenance.
-
Enhanced Diagnostics: Built-in diagnostic functions streamline fault detection and minimize downtime.
-
Reliability: Industrial-grade components ensure high availability in harsh environments.
-
Compact and Lightweight: The slim module design allows easy integration into densely packed control cabinets.
– Typical Applications
-
Power plants and energy management systems
-
Oil & gas processing facilities
-
Chemical and pharmaceutical manufacturing plants
-
Water and wastewater treatment stations
-
Automotive and discrete manufacturing
-
Pulp and paper processing systems
-
Metal and mining industries
-
Infrastructure automation (tunnels, transport systems)
– Latest Industry Reports Featuring DSDI 110AV1
-
“Integration of High-Density Digital Input Boards in Legacy DCS Systems: The Case of ABB Symphony Plus”
-
“Advancements in Modular I/O for Process Industries – Focus on ABB’s DSDI and DSDO Families”
-
“Compact Input Boards Drive Efficiency in Modern Control Cabinets – A Review of ABB DSDI Series”
-
“ABB DCS Modules Enable Seamless Retrofit in Brownfield Plants”
-
“Digitalization in Process Automation: The Role of ABB I/O Boards in Modernizing Control Infrastructure”
– Related Models in the Same Series or Function Family
| Model Name | Part Number | Description | Channels | Input Voltage | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DSDI 110A | 57310001-FT | Digital Input Board, 32 CH | 32 | 24V DC | 234 x 18 x 229.5 | 0.330 |
| DSDI 110B | 57310001-KD | Digital Input Board, 32 CH | 32 | 24V DC | 234 x 18 x 229.5 | 0.334 |
| DSDI 130A | 57310001-TM | Digital Input Board, Isolated Input | 16 | 24V DC | 234 x 18 x 229.5 | 0.328 |
| DSDO 115 | 57160001-NF | Digital Output Board, 32 CH | 32 | 24V DC | 234 x 18 x 229.5 | 0.336 |
| DSDO 120 | 57310001-GP | Digital Output Board, 16 CH | 16 | 24V DC | 234 x 18 x 229.5 | 0.331 |
| DSDO 130 | 57310001-LG | Digital Output, Relay Interface | 8 | Relay | 234 x 18 x 229.5 | 0.340 |
– Popular ABB Models in the Automation Industry
| Model Name | Part Number | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AI835 | 3BSE008520R1 | Analog Input Module, 8 CH | Analog Input | 119 x 45 x 127 | 0.18 |
| AO845A | 3BSE045584R1 | Analog Output Module, 8 CH | Analog Output | 119 x 45 x 127 | 0.18 |
| DO820 | 3BSE008512R1 | Digital Output Module, 16 CH | Digital Output | 119 x 45 x 127 | 0.18 |
| DI825 | 3BSE036370R1 | Digital Input Module, 16 CH | Digital Input | 119 x 45 x 127 | 0.18 |
| PM864AK01 | 3BSE018161R1 | AC800M Controller | CPU/Controller | 186 x 119 x 127 | 0.45 |
| TU830V1 | 3BSE013234R1 | Terminal Unit for S800 I/O | Base Unit | 190 x 100 x 90 | 0.32 |
FAQ
– Frequently Asked Questions (FAQ)
Q1: What is the voltage rating for the DSDI 110AV1 input channels?
A1: The input channels are designed for 24V DC operation.
Q2: How many digital input channels does the DSDI 110AV1 provide?
A2: It provides 32 digital input channels.
Q3: Can the DSDI 110AV1 be used with ABB’s Symphony Plus system?
A3: Yes, it is fully compatible with Symphony and Advant Master DCS systems.
Q4: What type of isolation is implemented in this board?
A4: The board offers channel-to-channel and channel-to-bus electrical isolation.
Q5: What are the typical applications for this input board?
A5: It is typically used in energy, chemical, water treatment, and manufacturing sectors for digital signal acquisition.
Q6: Does this module support hot-swapping?
A6: No, the DSDI 110AV1 is not designed for hot-swap operation. Power-down is required before replacement.
Q7: Is diagnostic information available directly from the module?
A7: Yes, the module features built-in diagnostics to assist in fault identification.
Q8: What is the form factor and weight of the DSDI 110AV1?
A8: The module measures 234 x 18 x 229.5 mm and weighs approximately 0.332 kg.
