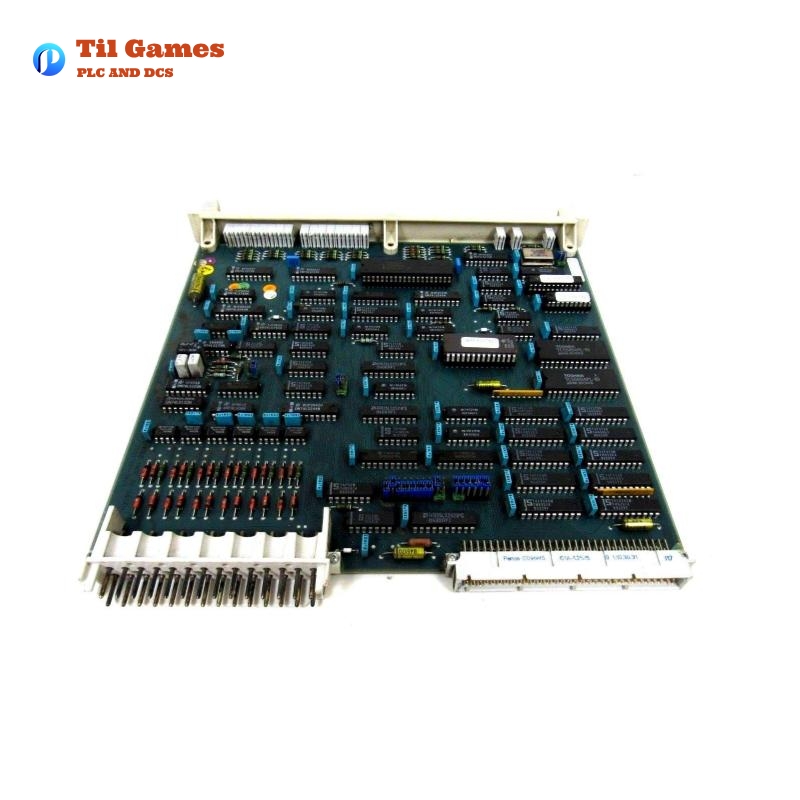

Product Overview: ABB DSCS 131 57310001-LM Master Fieldbus Communication Module
The ABB DSCS 131 57310001-LM is a high-performance Master Fieldbus Communication Module used within the ABB Advant OCS system and is designed for real-time communication and control across industrial networks. It functions as the Master controller for the MasterFieldbus protocol, supporting deterministic data transfer and ensuring high reliability in distributed automation architectures. Designed for redundant configurations, this module is often deployed in critical applications where fault tolerance and system uptime are essential.
The DSCS 131 module integrates seamlessly with other ABB controllers and I/O modules, facilitating robust communication and effective process control in demanding industrial environments. The module is engineered to provide support for serial fieldbus communications and supports redundancy features to enhance system resilience and minimize downtimes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | DSCS 131 Master Fieldbus Communication Module |
| Product Code | 57310001-LM |
| Product Type | Communication Module |
| Description | Serial Bus Controller for MasterFieldbus |
| Communication Protocol | MasterFieldbus |
| Redundancy Support | Yes |
| Mounting Type | Rack-mounted (S100 I/O Bus) |
| Application | Distributed control systems, ABB Advant OCS |
| Operating Voltage | 5 VDC (supplied via backplane) |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 228.6 mm x 19.8 mm x 321.3 mm |
| Weight | 0.46 kg |
| Repair Option | Available |
Key Features
-
Functions as the Master controller in MasterFieldbus communication systems
-
Designed for use in redundant system configurations
-
Seamless integration with ABB S100 I/O and Advant OCS platforms
-
Real-time and deterministic data exchange
-
High system availability with fault-tolerant architecture
-
Supports serial communication in complex process environments
-
Compact design optimized for rack-based installations
-
Long lifecycle and field-proven performance
Advantages
-
Redundancy: Built-in redundancy capabilities ensure continuous communication even in the event of a module failure.
-
System Compatibility: Fully compatible with ABB Advant OCS and S100 I/O systems, reducing integration complexity.
-
Proven Reliability: Extensively used in industrial environments requiring high availability and consistent data throughput.
-
Minimized Downtime: With hot-swappable features and repair options, system maintenance is simplified and operational downtimes are reduced.
-
Industrial Robustness: Engineered to function reliably under harsh environmental conditions such as temperature extremes and humidity.
-
Compact Footprint: Space-saving design suitable for high-density installations.
Applications
-
Power generation and distribution control systems
-
Oil and gas production platforms
-
Chemical and petrochemical processing
-
Pulp and paper mills
-
Water and wastewater treatment facilities
-
Metals and mining control centers
-
Transportation infrastructure systems
-
Large-scale manufacturing automation networks
Latest Reports / Headlines
-
“ABB Extends Redundancy Capabilities for MasterFieldbus Systems in Critical Infrastructure Applications”
-
“DSCS 131 Module Enhancements Boost Reliability in ABB Distributed Control Systems”
-
“ABB Continues Commitment to Legacy System Support with DSCS 131 Module Repair Services”
-
“Integration of DSCS 131 with Digital Substation Architectures Expands Deployment Options”
-
“ABB Fieldbus Modules Drive Innovation in Process Automation”
Related Models in the Same Series or Function
| Model Number | Description | Communication Protocol | Redundancy | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| DSCS 140 57310001-UM | Slave Fieldbus Communication Module | MasterFieldbus | No | 228.6 x 19.8 x 321.3 | 0.46 kg |
| DSBC 172 57310001-KD | Bus Repeater Master for S100 I/O | S100 I/O Bus | No | 228.6 x 19.8 x 321.3 | 0.46 kg |
| DSBC 173 57310001-KH | Bus Repeater Slave for S100 I/O | S100 I/O Bus | No | 228.6 x 19.8 x 321.3 | 0.46 kg |
| DSBC 174 3BSE012211R1 | S100 Bus Extender | S100 I/O Bus | No | 228.6 x 19.8 x 321.3 | 0.46 kg |
| DSBC 175 3BUR001661R1 | Redundant Bus Coupler | S100 I/O Bus | Yes | 228.6 x 19.8 x 321.3 | 0.46 kg |
| DSBC 176 3BSE019216R1 | I/O Bus Extender Board | S100 I/O Bus | No | 228.6 x 19.8 x 321.3 | 0.46 kg |
Popular ABB Models
| Model Number | Description | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|
| AI835 3BSE008520R1 | Analog Input Module | S800 I/O | 45 x 110 x 122 | 0.25 kg |
| AI845 3BSE023675R1 | High-density Analog Input Module | S800 I/O | 45 x 110 x 122 | 0.25 kg |
| AO845A 3BSE045584R1 | Analog Output Module | S800 I/O | 45 x 110 x 122 | 0.25 kg |
| DI810 3BSE008508R1 | Digital Input Module | S800 I/O | 45 x 110 x 122 | 0.25 kg |
| DO810 3BSE008510R1 | Digital Output Module | S800 I/O | 45 x 110 x 122 | 0.25 kg |
| CI854AK01 3BSE030220R1 | Profibus Communication Interface | Communication Module | 45 x 110 x 122 | 0.25 kg |
FAQ
FAQ – ABB DSCS 131 57310001-LM Master Fieldbus Communication Module
Q1: What is the primary function of the DSCS 131 module?
A1: The DSCS 131 functions as the master controller for MasterFieldbus communications in ABB control systems.
Q2: Can this module be used in redundant configurations?
A2: Yes, the DSCS 131 supports redundancy for high availability and fault tolerance.
Q3: What systems is this module compatible with?
A3: It is compatible with ABB Advant OCS and S100 I/O system architectures.
Q4: What are the power supply requirements for this module?
A4: It operates with a 5 VDC supply delivered via the system backplane.
Q5: Is field repair available for the DSCS 131 module?
A5: Yes, ABB offers repair services for the DSCS 131 as part of lifecycle support.
Q6: What is the typical application environment for this module?
A6: It is used in process automation, power plants, water treatment facilities, and other critical infrastructures.
Q7: How is the module mounted within the control system?
A7: It is rack-mounted and connects to the S100 I/O Bus backplane.
Q8: Does this module require specific environmental conditions?
A8: Yes, it operates reliably within 0°C to 60°C and 5% to 95% relative humidity (non-condensing).
