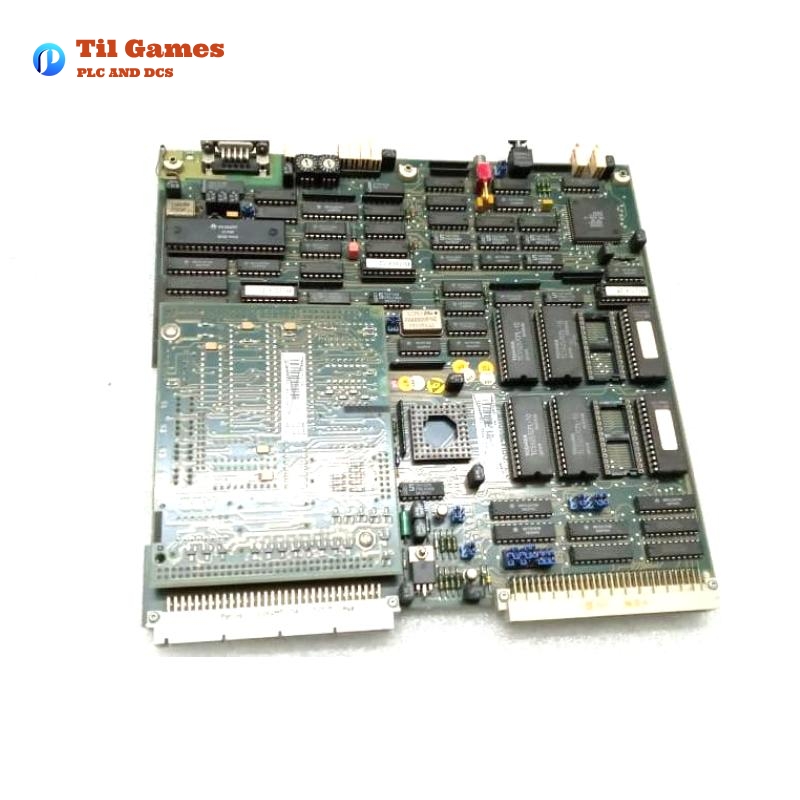

Product Overview: ABB DSCA 160A 57520001-GX RS 232 Communication Processor
The ABB DSCA 160A 57520001-GX is a robust and highly reliable RS-232 Communication Processor Unit designed for integration within ABB’s Infi 90 and Symphony control systems. This communication module is engineered to provide dependable serial communication functionality between field devices and the central control system, facilitating real-time data exchange. Built with industrial-grade durability, the DSCA 160A is ideal for demanding environments that require uninterrupted data transfer over standard RS-232 protocols.
This processor unit not only ensures seamless interoperability within ABB systems but also supports structured diagnostics and efficient communication performance across plant-wide installations. Its compact form factor, modular configuration, and dependable performance make it a valuable asset in automation and process industries.
Product Specifications: ABB DSCA 160A 57520001-GX
| Parameter | Description |
|---|---|
| Product Type | Communication Module |
| Model Number | DSCA 160A |
| Ordering Code | 57520001-GX |
| Communication Protocol | RS-232 |
| Interface Type | Serial Communication |
| System Compatibility | Infi 90, Symphony DCI |
| Transmission Mode | Full Duplex |
| Baud Rate | Configurable, up to 19.2 kbps |
| Connector Type | DB-25 Female |
| Mounting Type | Rack Mountable |
| Status Indications | LED indicators for TX, RX, and status |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply | 5 V DC supplied from I/O rack |
| Dimensions (W x H x D) | 324 x 22 x 234 mm |
| Weight | 0.63 kg |
Key Features of ABB DSCA 160A
-
RS-232 based communication for direct serial interfacing with external field devices.
-
Built-in LED indicators for communication diagnostics and module status.
-
Designed for integration with ABB Infi 90 and Symphony control systems.
-
Configurable baud rate and port settings for flexible installation.
-
Industrial-grade reliability suited for 24/7 operations in automation environments.
-
Plug-in modular design facilitates easy replacement and maintenance.
-
Supports structured error detection and logging.
-
Fully rack-compatible form factor for ABB standard systems.
Product Advantages
-
Ensures stable communication between field devices and control systems with minimal latency.
-
Simplifies system integration thanks to native compatibility with ABB platforms.
-
Reduces downtime through self-diagnostic capabilities and visible status indications.
-
Compact size and lightweight build ease transportation and rack installation.
-
Enhances operational security and consistency in process control environments.
-
Provides long service life and operational consistency in high-vibration or EMC-intensive settings.
Applications
-
Industrial Process Automation
-
Distributed Control Systems (DCS)
-
Power Generation Facilities
-
Water Treatment Plants
-
Oil and Gas Control Stations
-
Chemical and Petrochemical Plants
-
Steel and Cement Manufacturing
-
Communication Gateway for Serial Devices in Legacy Systems
Latest Product News Headlines (2024–2025)
-
“ABB Enhances Infi 90 Compatibility with Advanced DSCA 160A Serial Communication Modules”
-
“ABB DSCA 160A Featured in New DCS Upgrades Across Southeast Asia Energy Facilities”
-
“Modernizing Legacy Systems: DSCA 160A Bridges the Gap in Plant Communication”
-
“ABB Strengthens Industrial Networking Portfolio with Robust RS-232 Processor”
-
“New Firmware Enhancements Announced for DSCA 160A to Improve Fault Diagnostics”
Related Models from the Same Series or System
| Model Number | Description | Communication Protocol | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| DSCA 180A | RS-485 Communication Processor | RS-485 | 324 x 22 x 234 | 0.64 |
| DSCA 120A | Serial Port Adapter | RS-232 | 324 x 22 x 234 | 0.62 |
| DSCA 116A | Communication Adapter Module | RS-422 | 324 x 22 x 234 | 0.61 |
| INICT03A | Network Interface for INFI 90 | Ethernet | 324 x 22 x 234 | 0.65 |
| INICT13A | Advanced Network Interface | Ethernet/TCP/IP | 324 x 22 x 234 | 0.66 |
| NTCF01 | Communication Termination Unit | RS-232 | 324 x 22 x 234 | 0.60 |
Popular ABB Models (Recommended for Communication and Control Integration)
| Model Number | Description | Application Area | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AI835 | Analog Input Module | S800 I/O Systems | 145 x 71 x 126 | 0.27 |
| AI843 | Analog Input Module | S800 I/O Systems | 145 x 71 x 126 | 0.28 |
| AO845A | Analog Output Module | S800 I/O Systems | 145 x 71 x 126 | 0.29 |
| CI854AK01 | Communication Interface PROFIBUS | S800 I/O, ControlBuilder | 145 x 71 x 126 | 0.32 |
| PM866K02 | AC 800M Controller Module | ABB Control Systems | 145 x 186 x 138 | 0.58 |
| TB820V2 | Module Termination Unit | For S800 I/O Series | 150 x 87 x 100 | 0.30 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB DSCA 160A module?
A1: The DSCA 160A is used to provide RS-232 communication between external serial devices and ABB control systems like Infi 90 and Symphony.
Q2: Is the DSCA 160A compatible with Ethernet communication?
A2: No, it is specifically designed for RS-232 serial communication and does not support Ethernet.
Q3: Can this module be used in harsh industrial environments?
A3: Yes, it is built to operate within a wide temperature range and is suitable for rugged industrial conditions.
Q4: Does it support error detection features?
A4: Yes, the DSCA 160A includes diagnostic features and LED indicators to support real-time error detection.
Q5: How is the module mounted?
A5: It is designed for rack mounting in ABB standard I/O frames.
Q6: What types of devices can be connected to the DSCA 160A?
A6: Any RS-232 compatible serial devices such as meters, analyzers, PLCs, or legacy instrumentation.
Q7: How is the power supplied to the DSCA 160A?
A7: The module draws 5 V DC power from the I/O rack in which it is installed.
Q8: What makes the DSCA 160A preferable over generic RS-232 interfaces?
A8: Its seamless integration with ABB’s DCS platforms, industrial-grade reliability, and diagnostic support make it superior for critical applications.
