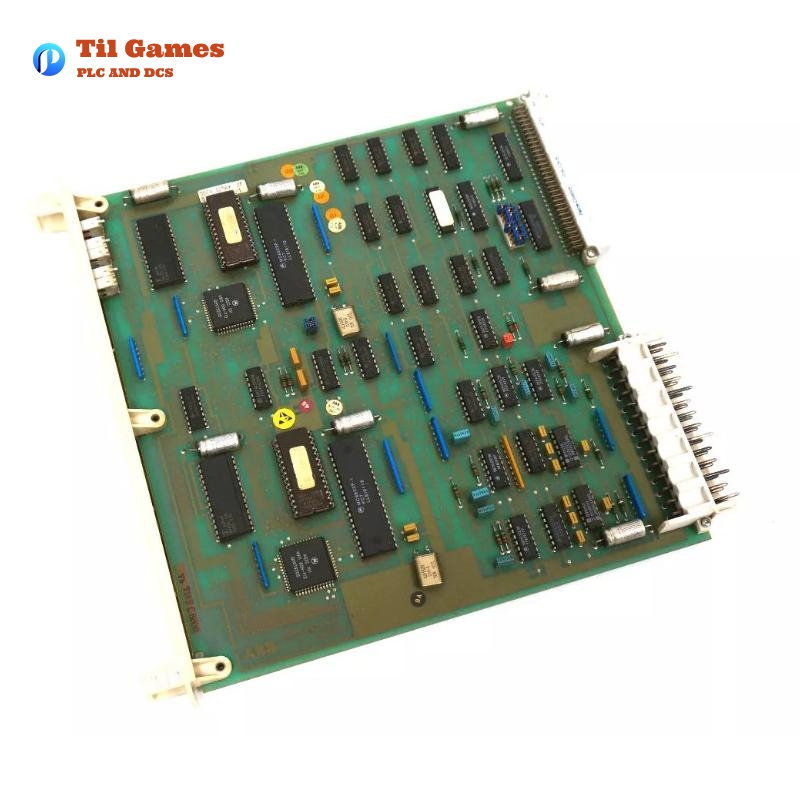

Product Overview: ABB DSCA 125A 57520001-GD MB200 Communication Board
The ABB DSCA 125A 57520001-GD is a communication board designed for use within the ABB MB200 I/O system. This board serves as a critical interface component, enabling communication between the I/O modules and control systems. Engineered for industrial automation environments, the DSCA 125A ensures efficient data transmission, secure integration, and dependable performance. Its robust construction and streamlined design make it an ideal solution for demanding applications in process control and distributed automation architectures.
The DSCA 125A module features plug-in capabilities, allowing for quick installation and replacement within MB200 systems. It is specifically designed to handle fieldbus communication and support synchronization between the controller and connected I/O devices. Its configuration ensures seamless operation within ABB’s proprietary systems, providing engineers with a reliable tool for complex control systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | DSCA 125A |
| Part Number | 57520001-GD |
| Manufacturer | ABB |
| Product Family | MB200 Communication Board |
| Function | Communication interface for MB200 I/O |
| Communication Type | Proprietary ABB Bus Communication |
| Mounting Type | Plug-in module |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 324 x 22 x 234 mm |
| Weight | 0.42 kg |
| Compatibility | MB200 I/O subsystem |
| Diagnostic Capabilities | Yes |
| Cooling | Natural convection |
| Certifications | CE, RoHS compliant |
Key Features
-
Integrated communication board for MB200 series
-
Facilitates reliable data transfer between controller and I/O modules
-
Plug-and-play installation reduces downtime
-
Diagnostic LEDs for operational monitoring
-
Compact and modular form factor for space-saving installations
-
High immunity to electromagnetic interference
-
Low power consumption
-
Long lifecycle support from ABB
Advantages
-
Reliable Communication: Engineered for consistent and stable data exchange, the DSCA 125A ensures minimal communication errors.
-
Ease of Integration: The board’s plug-in design allows for seamless insertion into existing ABB systems, reducing engineering time and installation complexity.
-
Compact Size: With a narrow width and efficient design, this module saves valuable panel space in dense installations.
-
Field Proven Durability: Developed to withstand industrial conditions such as temperature fluctuations, vibration, and electrical noise.
-
Serviceability: The modular nature of the unit allows for straightforward maintenance and quick replacement without system shutdowns.
Applications
-
Distributed Control Systems (DCS) in process industries
-
Power generation and utility automation
-
Chemical and petrochemical plants
-
Pulp and paper automation systems
-
Water and wastewater management plants
-
Oil and gas processing facilities
-
Steel and metal processing operations
-
Manufacturing automation requiring MB200 communication interfaces
