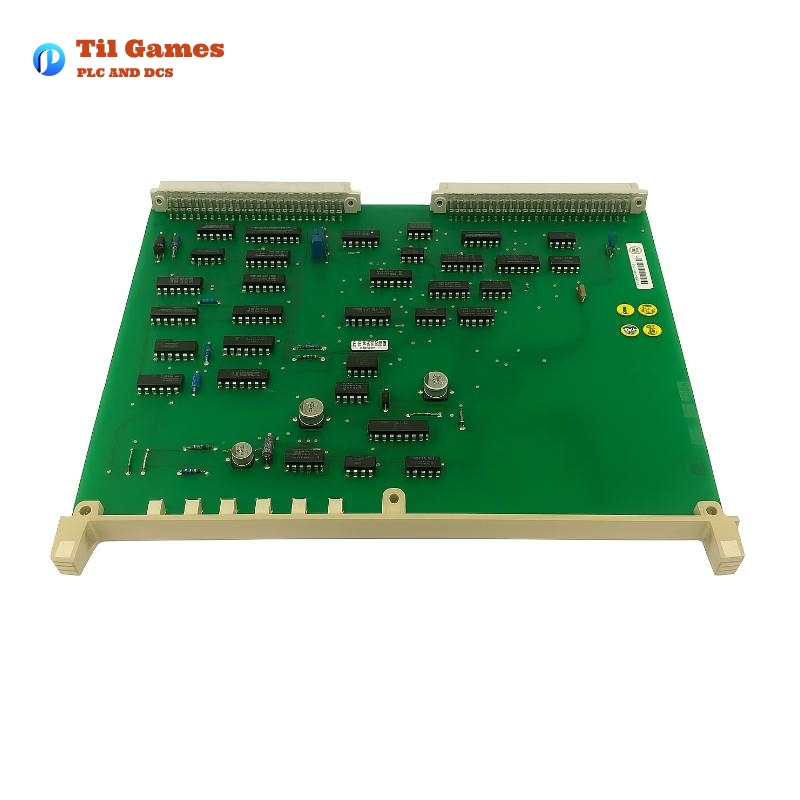

Product Description – ABB DSBC 173A 3BSE005883R1
The ABB DSBC 173A 3BSE005883R1 is a Bus Extender Module used in the Advant Controller 100 Series for the S100 I/O system. It serves as a slave module in a bus extension setup, typically used with the DSBC 172 master unit, to extend the physical location of S100 I/O modules over a longer distance. It enables distributed installations while maintaining high-speed, synchronized data communication between the main controller and remote I/O racks.
This module is a critical component in decentralized automation architectures, especially where process signals are spread across large plants. It ensures integrity and timing of communication between controllers and I/O units across the extended bus system.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Product Name | DSBC 173A |
| Product ID | 3BSE005883R1 |
| Product Type | Bus Extender Module (Slave) |
| System Compatibility | Advant Controller 100 / S100 I/O |
| Function | Slave in S100 I/O bus extension |
| Partner Module | DSBC 172 (Master Unit) |
| I/O Bus | S100 Bus |
| Mounting Type | Rack-mounted |
| Cooling Method | Natural convection |
| Operating Voltage | Supplied via system rack |
| Dimensions (W x H x D) | 324 x 22.5 x 234 mm |
| Weight | 0.32 kg |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -40 to +70°C |
| Humidity | 5 to 95% RH, non-condensing |
| Vibration Resistance | 1 g @ 10–150 Hz |
| Shock Resistance | 15 g, 11 ms |
| Protection Class | IP20 (module), IP65 (with enclosure) |
| Compliance | CE, RoHS, EMC Directive |
Product Features
-
Supports remote I/O installations via bus extension
-
Slave module – functions only with DSBC 172 master
-
Transparent data transfer over the extended bus
-
No programming required – plug-and-play architecture
-
Designed for Advant Controller-based systems
-
Compact form factor for dense installations
-
High electromagnetic immunity for industrial environments
-
Long service life with robust industrial build
Product Advantages
-
Allows flexible installation of I/O modules in remote locations
-
Reduces the need for long I/O wiring, decreasing installation cost
-
Increases reliability by using standardized bus extension
-
Ensures synchronized data flow between controller and remote racks
-
Minimizes panel space due to narrow width (22.5 mm)
-
Enhances scalability of existing S100 I/O systems
-
Maintenance-free with passive electronic design
-
Easy to integrate into existing Advant Master environments
Typical Applications
-
Oil & Gas production platforms
-
Chemical and petrochemical plants
-
Power generation and utilities
-
Water and wastewater treatment facilities
-
Pulp and paper industries
-
Steel manufacturing plants
-
Distributed control systems with remote I/O points
-
Revamp projects involving legacy S100 I/O systems
