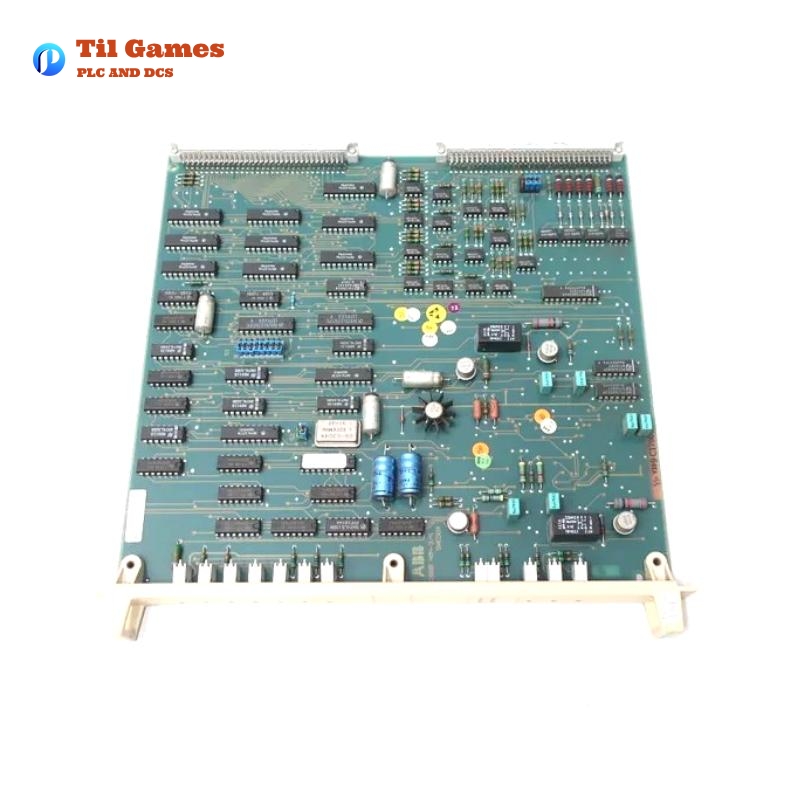

Product Overview – ABB DSBC 172 57310001-KD
The ABB DSBC 172 is a Bus Repeater Master module used in the Advant Controller 400 Series. It plays a crucial role in the MasterBus 300 system architecture by managing and repeating communication signals across extended segments of the system. The module ensures signal integrity, especially when the system architecture requires long cable distances or when segment isolation is essential for reliable data communication.
This unit is typically mounted in the NTMP01 or NTMP02 Termination Units and is designed for robust industrial control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Bus Repeater Master Module |
| Model | DSBC 172 |
| Ordering Code | 57310001-KD |
| System Compatibility | MasterBus 300, Advant Controller 400 |
| Function | Signal Repeater and Segment Master |
| Installation | Mounted in NTMP01/NTMP02 Termination Units |
| Dimensions (W x H x D) | 324 x 22.5 x 234 mm |
| Weight | 0.4 kg |
| Operating Voltage | Supplied through termination unit |
| Environmental Protection | Industrial-grade, designed for control cabinet environments |
| Operating Temperature Range | 0°C to +60°C |
| Communication Interface | MasterBus 300 |
| Diagnostic LEDs | Yes (status indicators for power and communication) |
| Redundancy Support | Supported in dual configurations |
Product Features
-
Designed as a Master module for the Bus Repeater function in MasterBus 300 networks
-
Ensures reliable communication across extended distances and multiple segments
-
Built-in diagnostic indicators for quick status identification
-
Modular construction for easy replacement and maintenance
-
Can be used with redundant configurations for increased system reliability
-
Seamlessly integrates with other ABB Advant series modules and termination units
Product Advantages
-
High Signal Integrity: Maintains reliable data transmission across long distances
-
Modular and Scalable: Ideal for expanding existing MasterBus 300 networks
-
Industrial Grade Reliability: Engineered to withstand harsh environments typical in process automation
-
Simplified Maintenance: Easy to replace, no reconfiguration needed when replacing within the same system
-
Reduced Downtime: Diagnostic LEDs allow for fast fault identification and rectification
-
Backward Compatible: Works with legacy Advant Controller 400 systems, supporting system longevity
Product Applications
-
Process Automation Systems using Advant Controller 400
-
Industrial Plants with complex MasterBus 300 topologies requiring signal boosting
-
Oil & Gas, Power Generation, Chemical, and Water Treatment facilities
-
Distributed Control Systems (DCS) requiring segment isolation or long communication paths
-
Environments requiring redundant bus architectures for high availability systems
Latest Reports / Technical Updates
(Recent Technical Publication Title Examples):
-
“System Compatibility Enhancements for MasterBus 300 Networks with DSBC Modules”
-
“Reliability Optimization in Redundant Bus Systems using ABB DSBC 172”
-
“Field Proven Durability: Long-term Performance Analysis of DSBC 172 in Oil & Gas Applications”
Related Models in the Same Series or Function Group
| Model Name | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| DSBC 173 | Bus Repeater Slave Module | 324 x 22.5 x 234 | 0.4 kg |
| DSBC 176 | Bus Isolator Module | 324 x 22.5 x 234 | 0.4 kg |
| DSBC 110 | Bus Interface Module for redundant MB300 | 324 x 22.5 x 234 | 0.4 kg |
| DSBC 174 | Segment Coupler for MB300 | 324 x 22.5 x 234 | 0.4 kg |
| DSBC 175 | Segment Master with diagnostics | 324 x 22.5 x 234 | 0.4 kg |
| DSBC 111 | Dual Redundant MB300 Interface Module | 324 x 22.5 x 234 | 0.4 kg |
Recommended Popular ABB Modules
| Model Name | Description | System Use | Dimensions (mm) | Weight |
|---|---|---|---|---|
| AI835 | Analog Input Module, S800 I/O | Analog signal processing | 45 x 119 x 127 | 0.3 kg |
| DI810 | 16 ch. Digital Input Module, S800 I/O | Digital signal input | 45 x 119 x 127 | 0.25 kg |
| DO810 | 16 ch. Digital Output Module, S800 I/O | Digital output | 45 x 119 x 127 | 0.25 kg |
| PM864AK01 | AC 800M Controller CPU | Control system core | 186 x 126 x 78 | 0.55 kg |
| CI854AK01 | PROFIBUS DP Interface Module | Fieldbus connectivity | 115 x 35 x 127 | 0.2 kg |
| TU810V1 | Terminal Unit for S800 I/O Modules | Backplane wiring | 122 x 120 x 60 | 0.3 kg |
FAQ
FAQ – Frequently Asked Questions (QA Format)
Q1: What is the primary role of the DSBC 172 module?
A1: The DSBC 172 functions as a master bus repeater module in the MasterBus 300 network, responsible for signal regeneration and extension over long distances.
Q2: Can the DSBC 172 be used in redundant network configurations?
A2: Yes, it supports redundancy when configured with appropriate termination units and complementary DSBC modules.
Q3: In what termination units can the DSBC 172 be installed?
A3: It is designed to be installed in NTMP01 and NTMP02 termination units for the Advant Controller 400 system.
Q4: What is the physical size and weight of the DSBC 172?
A4: The module measures 324 x 22.5 x 234 mm and weighs approximately 0.4 kg.
Q5: Is the DSBC 172 hot-swappable?
A5: While the module is easily replaceable, hot-swapping should be conducted following system shutdown or using the correct procedures to avoid signal disruption.
Q6: Does it include diagnostic features?
A6: Yes, it includes LED indicators that provide status on power and communication integrity.
Q7: Is it compatible with current ABB DCS systems?
A7: The DSBC 172 is specifically compatible with legacy systems like the Advant Controller 400 but may also be integrated into current DCS environments that retain MB300 networks.
Q8: How does DSBC 172 improve signal quality?
A8: It boosts and repeats bus signals, enabling reliable communication over longer distances or across segments that would otherwise degrade without amplification.
